Model
Bosch SRV4603GB/05
Beverage Center
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SRV4603GB/05Beverage Center
1 diagram117 parts
Parts Sections (1)
Diagram

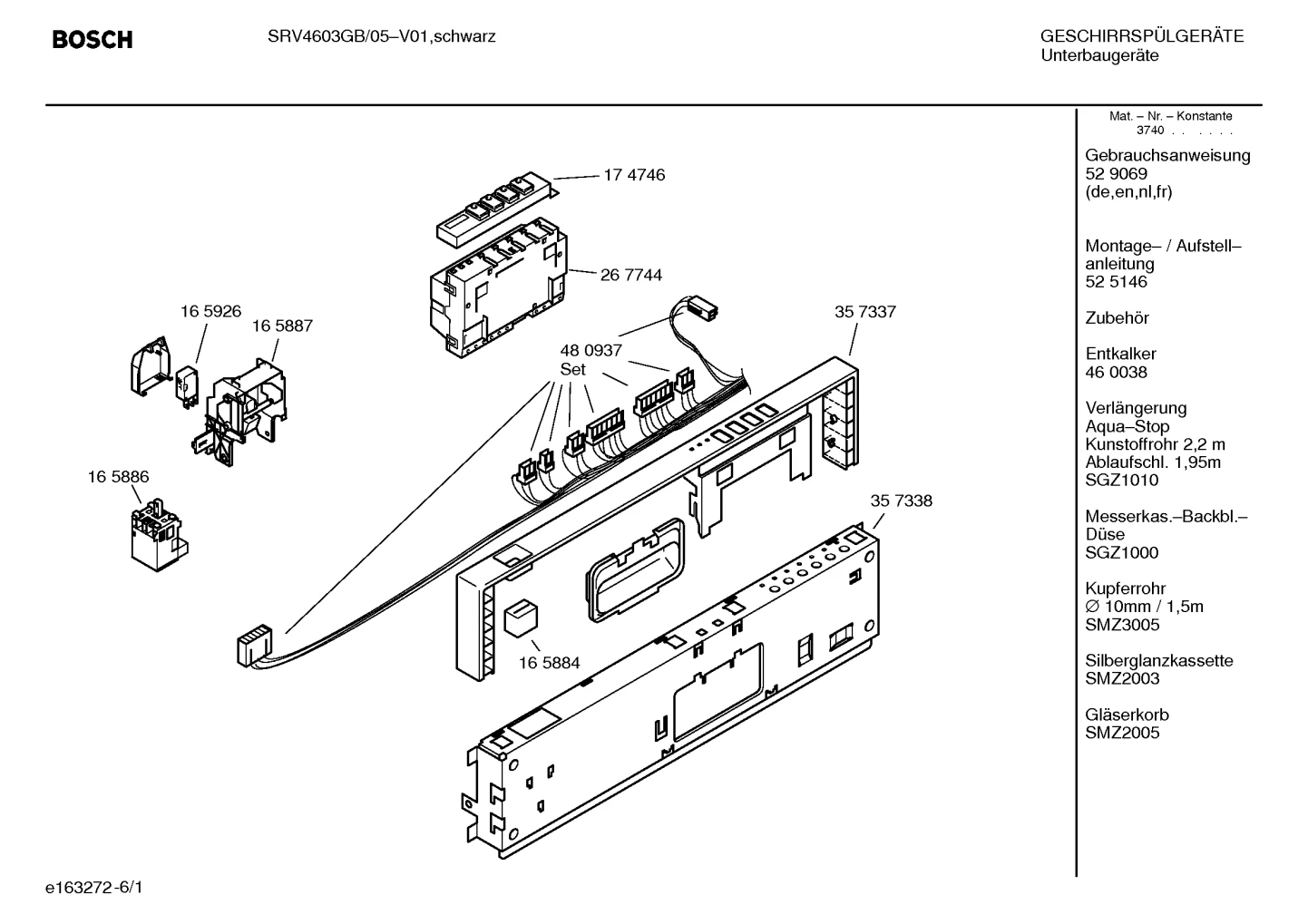

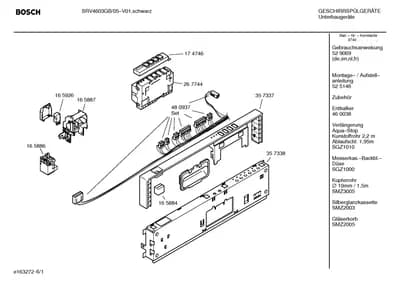

Seals & Gaskets, Door & Housing (0003-3020)
Parts in Seals & Gaskets, Door & Housing (0003-3020)
120 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0003 |  | Switch | $32.95 ApplianceParts Pro |
| 0004 |  | Switch | - |
| 0006 |  | 00165887NLA Lock | Discontinued |
| 0007 |  | Support | - |
| 0009 | | Key | - |
| 0020 |  | 00490467NLA Dispenser | Discontinued |
| 0021 |  | Sealing | $12.20 Parts Dr |
| 0022 |  | Detergent Lid | $39.34 Part Advantage |
| 0023 |  | Lid | $7.96 Part Advantage |
| 0024 |  | Repair-set | $9.63 Part Advantage |
| 0025 |  | Adjusting device | - |
| 0026 |  | Lever, Wrap, Seal | $11.72 Part Advantage |
| 0027 |  | Plunger | - |
| 0028 |  | Sealing | $8.37 Part Advantage |
| 0030 |  | Actuator | $21.56 Parts Dr |
| 0031 |  | Repair-set | - |
| 0032 |  | Switch | $20.93 Part Advantage |
| 0033 |  | Door-inner | - |
| 0035 |  | Sealing | - |
| 0037 |  | Insulating part | - |
| 0039 |  | Screw | $6.70 Part Advantage |
| 0040 |  | Strip | - |
| 0041 |  | Holder | $5.45 Part Advantage |
| 0042 |  | Strip | - |
| 0043 |  | Plug | - |
| 0044 |  | Mounting Set for Dishwashers | $28.09 ApplianceParts Pro |
| 0047 |  | Attachment Brackets | $12.41 Part Advantage |
| 0048 |  | Sheet | - |
| 0051 |  | Holder | $18.43 ApplianceParts Pro |
| 0052 |  | Holder | $20.57 ApplianceParts Pro |
| 0053 | | Insulating part | - |
| 0055 | | Rail | - |
| 0056 | | Panel side | - |
| 0057 |  | Latch | - |
| 0058 |  | Seal | $65.83 Part Advantage |
| 0059 |  | Rack guide rail | $38.03 PartSelect |
| 0060 |  | Front/Rear End Cap Set | $9.63 Part Advantage |
| 0061 | | Panel side | - |
| 0062 |  | Strip | - |
| 0063 |  | Strip | - |
| 0064 |  | Strip | - |
| 0065 | | Rail | - |
| 0066 |  | Bushing | - |
| 0067 |  | Axis | $7.68 PartSelect |
| 0068 |  | Foot | - |
| 0069 |  | Repair set-role | $63.01 Parts Dr |
| 0073 |  | Switch | $20.51 Part Advantage |
| 0074 |  | Valve-regeneration | $39.95 ApplianceParts Pro |
| 0075 |  | Valve-outlet | - |
| 0076 |  | Hose | $7.68 PartSelect |
| 0077 |  | O-Ring | $9.21 Part Advantage |
| 0078 | | O-Ring | $9.21 Part Advantage |
| 0079 |  | Fixture | - |
| 0080 |  | Sump Drain Hose | $10.47 Part Advantage |
| 0087 |  | Pump-drain | $99.25 ApplianceParts Pro |
| 0088 |  | Valve-non return | $7.53 Part Advantage |
| 0089 |  | Cover | $10.95 ApplianceParts Pro |
| 0090 |  | Screw | $1.67 Part Advantage |
| 0091 | | O-Ring | $9.21 Part Advantage |
| 0092 |  | Holder | - |
| 0093 |  | Sealing | $27.08 Parts Dr |
| 0094 |  | Cover | - |
| 0095 |  | Sump | $77.40 Parts Dr |
| 0096 |  | Hose clamp | $17.16 Part Advantage |
| 0097 |  | Case-upper part | - |
| 0098 |  | Sealing | $22.19 Part Advantage |
| 0101 |  | Pump Housing | $35.48 RepairClinic |
| 0102 |  | Suspension | $2.88 RepairClinic |
| 0106 |  | 00187156NLA Relay-starting | Discontinued |
| 0109 |  | Sealing | $8.79 Part Advantage |
| 0110 |  | Sensor-NTC | $54.05 Parts Dr |
| 0111 |  | Sealing | $8.79 Part Advantage |
| 0112 |  | Switch | - |
| 0114 |  | Pitcher for Softener Salt | - |
| 0115 |  | Cover | - |
| 0120 |  | Adapter | $12.98 Part Advantage |
| 0125 |  | Cable connector | - |
| 0126 |  | Sealing | $27.79 ApplianceParts Pro |
| 0128 |  | Valve-aquastop | - |
| 0129 |  | Drain Hose | $23.02 Part Advantage |
| 0134 |  | Capacitor-interference suppre. | - |
| 0136 |  | Hinge | $45.10 Parts Dr |
| 0137 |  | Hinge | $41.85 Part Advantage |
| 0138 |  | Plate | - |
| 0139 |  | Hinge Bushing | $10.88 Part Advantage |
| 0140 |  | Spring | - |
| 0141 |  | Roller-tension | - |
| 0142 |  | Foot | $14.59 Parts Dr |
| 0143 |  | Tube | $8.89 RepairClinic |
| 0144 |  | Hood | - |
| 0145 |  | Lever | $4.73 RepairClinic |
| 0146 |  | Float | $5.45 Part Advantage |
| 0147 | | Case-bottom | - |
| 0149 |  | Plate | - |
| 0150 |  | Hinge | $43.11 Part Advantage |
| 0151 |  | Hinge | $49.45 ApplianceParts Pro |
| 0152 | | Roller-tension | - |
| 0156 |  | Fixing kit | $15.95 ApplianceParts Pro |
| 0157 |  | Screw-adjust | $2.88 RepairClinic |
| 0170 | | Tube | - |
| 0171 |  | Spray arm | - |
| 0172 |  | Spray Arm | $46.87 Part Advantage |
| 0173 |  | Filter-micro | $51.73 Part Advantage |
| 0174 |  | Filter-fine | - |
| 0176 |  | Cutlery Basket | $50.79 Parts Dr |
| 0179 |  | Dishwasher Rack Wheel | $8.37 Part Advantage |
| 0180 |  | Dishwasher Rack Wheel | $6.30 Part Advantage |
| 0181 |  | Anti-Tarnish Silverware Holder | $52.36 PartSelect |
| 0182 |  | Tall/Large Item Sprinkler Head | $15.93 RepairClinic |
| 0183 | | 00350523NLA Insert | Discontinued |
| 0184 |  | Flip tine | - |
| 0185 |  | Clamp, Flip Tine | $9.21 Part Advantage |
| 0186 |  | Holder | $13.64 Parts Dr |
| 0199 |  | Cable harness | - |
| 0200 |  | Hose-vent | - |
| 0201 |  | Cover | - |
| 0202 |  | Sealing | - |
| 0203 |  | Cover | - |
| 3001 |  | Quick descaler | - |
| 3020 |  | Micro-Filter | $11.95 ApplianceParts Pro |
