Model
Bosch SRV53C13UC/46
Beverage Center
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SRV53C13UC/46Beverage Center
6 diagrams132 parts
Parts Sections (6)
Diagram

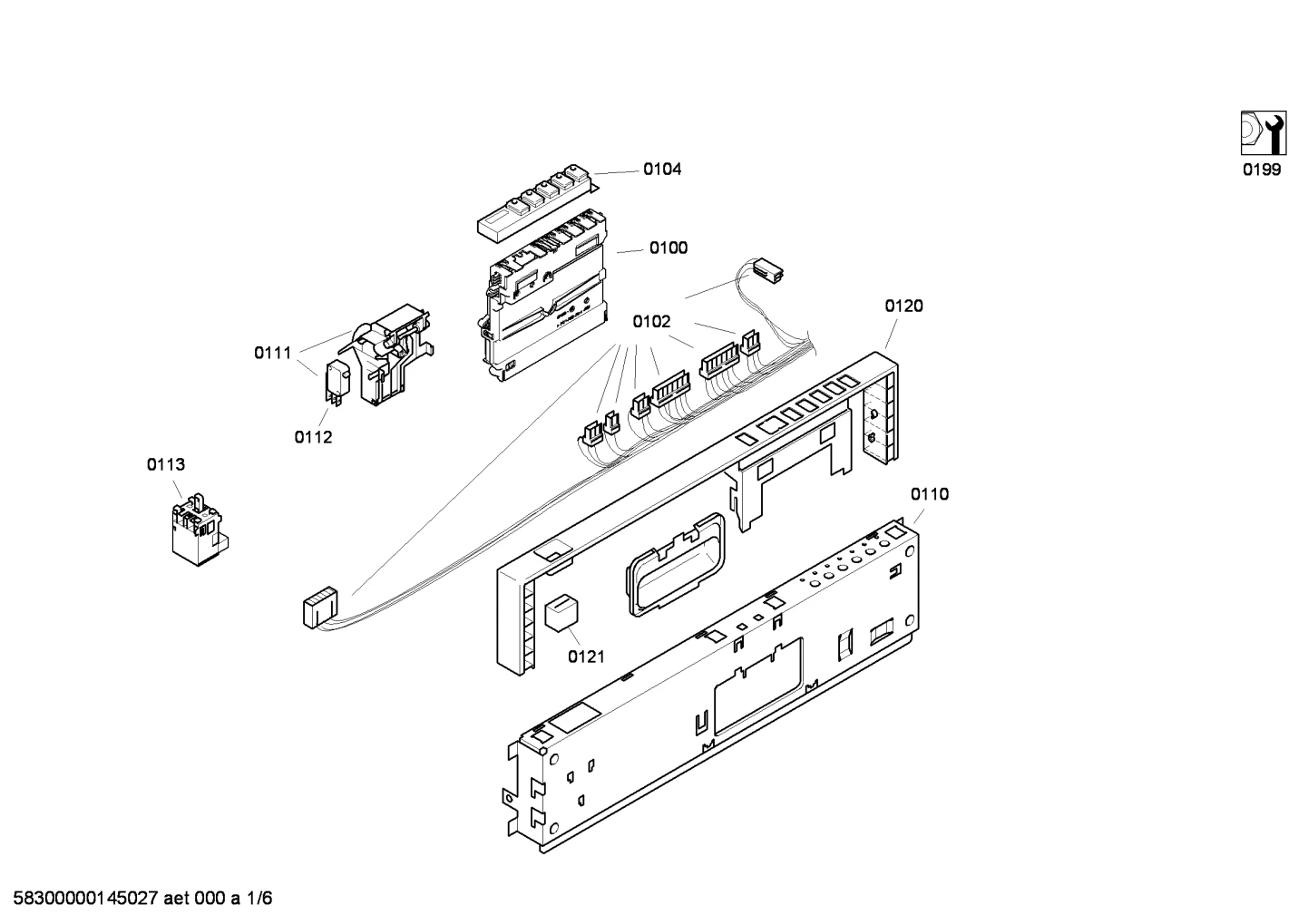

Switches, Handles & Knobs (0100-0199)
Parts in Switches, Handles & Knobs (0100-0199)
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0100 |  | Control module | - |
| 0102 |  | Plug | - |
| 0104 |  | Push button set | - |
| 0109 |  | Cable harness | - |
| 0110 | | Support | - |
| 0111 |  | Ball Bearing Door Latch | $48.55 Part Advantage |
| 0112 |  | Switch | - |
| 0113 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0120 |  | Frame | - |
| 0121 |  | 00424501NLA Key | Discontinued |
| 0199 | | Cable harness | - |
