Model
Thermador T24UC900DP/01
Undercounter Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelThermador
T24UC900DP/01Undercounter Refrigerator
8 diagrams144 parts
Parts Sections (8)
Diagram

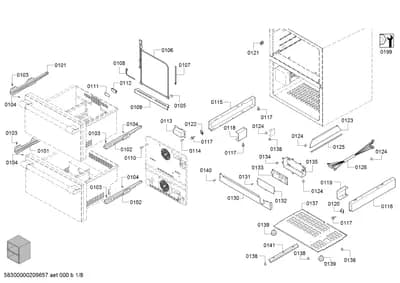

Screws, Door & Housing (0101-0199)
Parts in Screws, Door & Housing (0101-0199)
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Rail-pull out | $103.95 ApplianceParts Pro |
| 0102 |  | Rail-pull out | $103.95 ApplianceParts Pro |
| 0103 |  | Screw | - |
| 0104 |  | Screw | - |
| 0105 |  | Clip | - |
| 0106 |  | Heater-defrost | - |
| 0107 |  | Cable strap | - |
| 0108 |  | Temperature sensor | - |
| 0109 |  | Support | - |
| 0110 |  | Screw | - |
| 0111 |  | Insulating tape | - |
| 0112 |  | Support | - |
| 0113 | | Cover | - |
| 0114 |  | Screw | - |
| 0115 | | Frame | - |
| 0116 | | Frame | - |
| 0117 | | Screw | - |
| 0119 | | Support | - |
| 0120 |  | Mounting bracket | - |
| 0121 |  | Bushing | - |
| 0122 | | Mounting bracket | - |
| 0123 | | Plate | - |
| 0124 |  | Screw | - |
| 0125 | | Seal | - |
| 0126 | | Cable harness | $45.62 Part Advantage |
| 0130 |  | Decor panel | - |
| 0131 |  | Screw | - |
| 0132 | | Cover | - |
| 0133 |  | Control unit | $657.79 ApplianceParts Pro |
| 0134 | | Support | - |
| 0135 |  | Terminal box | - |
| 0137 |  | Cover | - |
| 0138 | | Screw | - |
| 0139 |  | Foot | - |
| 0140 |  | Screw | $4.43 ApplianceParts Pro |
| 0141 | | Exhaust baffle | - |
| 0199 |  | Mounting set | - |
