Model
Thermador T30IB100SP/08
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelThermador
T30IB100SP/08Refrigerator
9 diagrams156 parts
Parts Sections (9)
Diagram

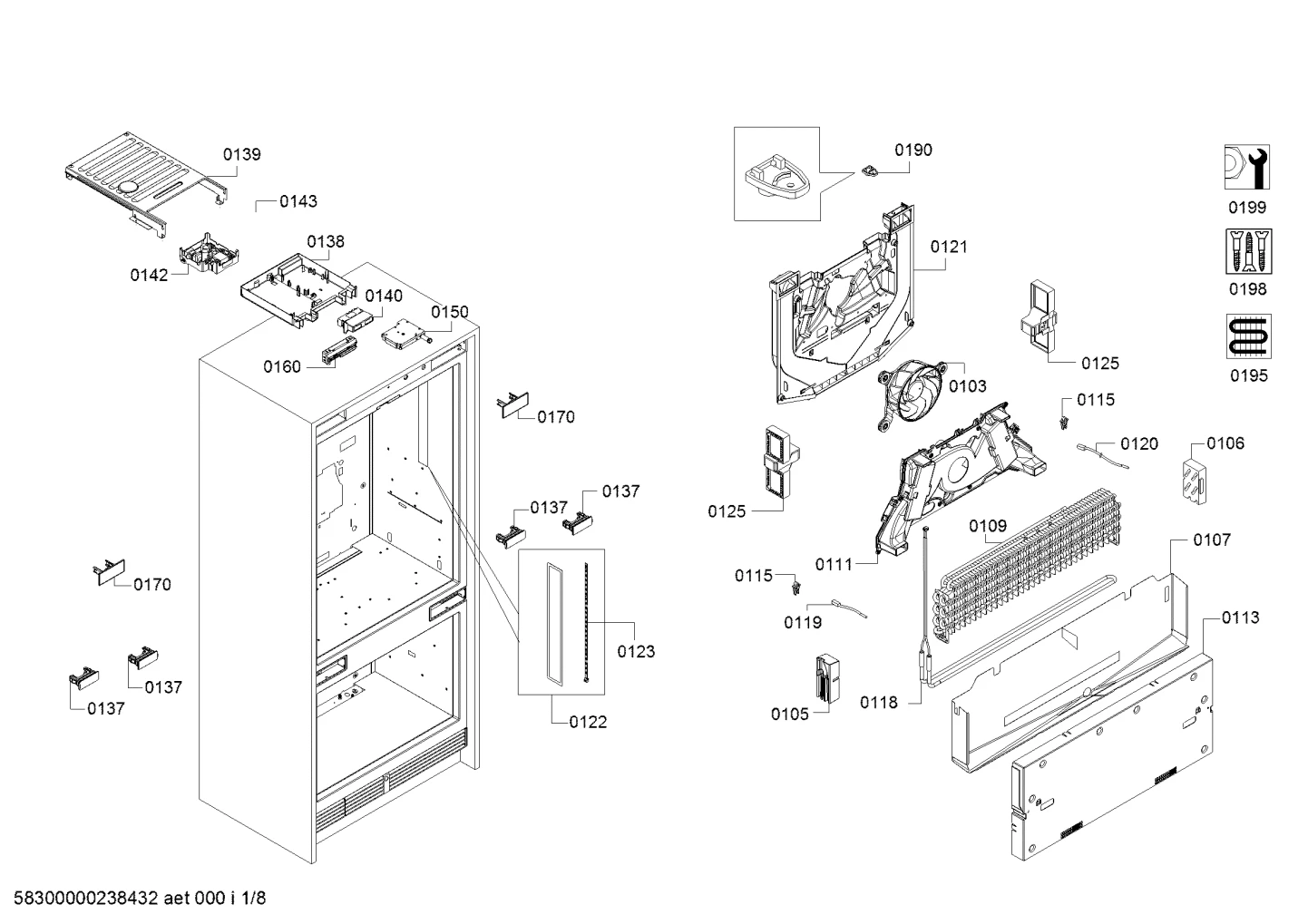

Door & Housing, Fan Parts (0103-0190)
Parts in Door & Housing, Fan Parts (0103-0190)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0103 |  | Fan | - |
| 0105 | – | 12048703 Foam piece | - |
| 0106 | – | 12048705 Foam piece | - |
| 0107 | – | 11060677 Water drainage bowl | - |
| 0109 | – | 20006174 Evaporator | - |
| 0111 | – | 20006362 Air duct | - |
| 0113 | – | 20006423 Insulating part | - |
| 0115 |  | Clip | - |
| 0118 | | Heater-defrost | - |
| 0119 | – | 12048717 Temperature sensor | - |
| 0120 | – | 12049709 Temperature sensor | - |
| 0121 | – | 20006176 Air duct | - |
| 0122 | – | 11061654 LED-Light bar | - |
| 0125 | – | 12041784 Flap | - |
| 0137 |  | Sensor | $10.88 Part Advantage |
| 0138 | | Cover | $42.55 |
| 0139 | – | 11061676 Cover | - |
| 0141 | – | 23005009 Profile stripe | - |
| 0142 | | Power module | $104.39 ApplianceParts Pro |
| 0143 |  | Power module | - |
| 0145 | – | 10034486 Cover | - |
| 0190 | – | 23003689 Fixture | - |
