Model
Thermador T30IB800SP/17
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelThermador
T30IB800SP/17Refrigerator
8 diagrams199 parts

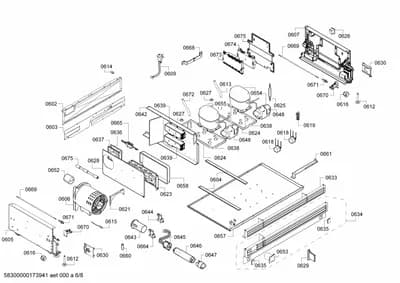

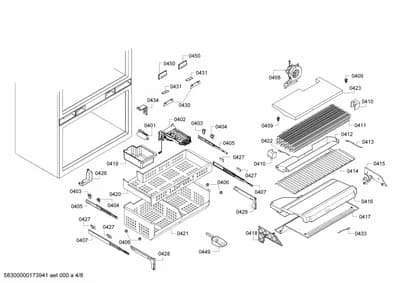

Parts Sections (8)
Diagram

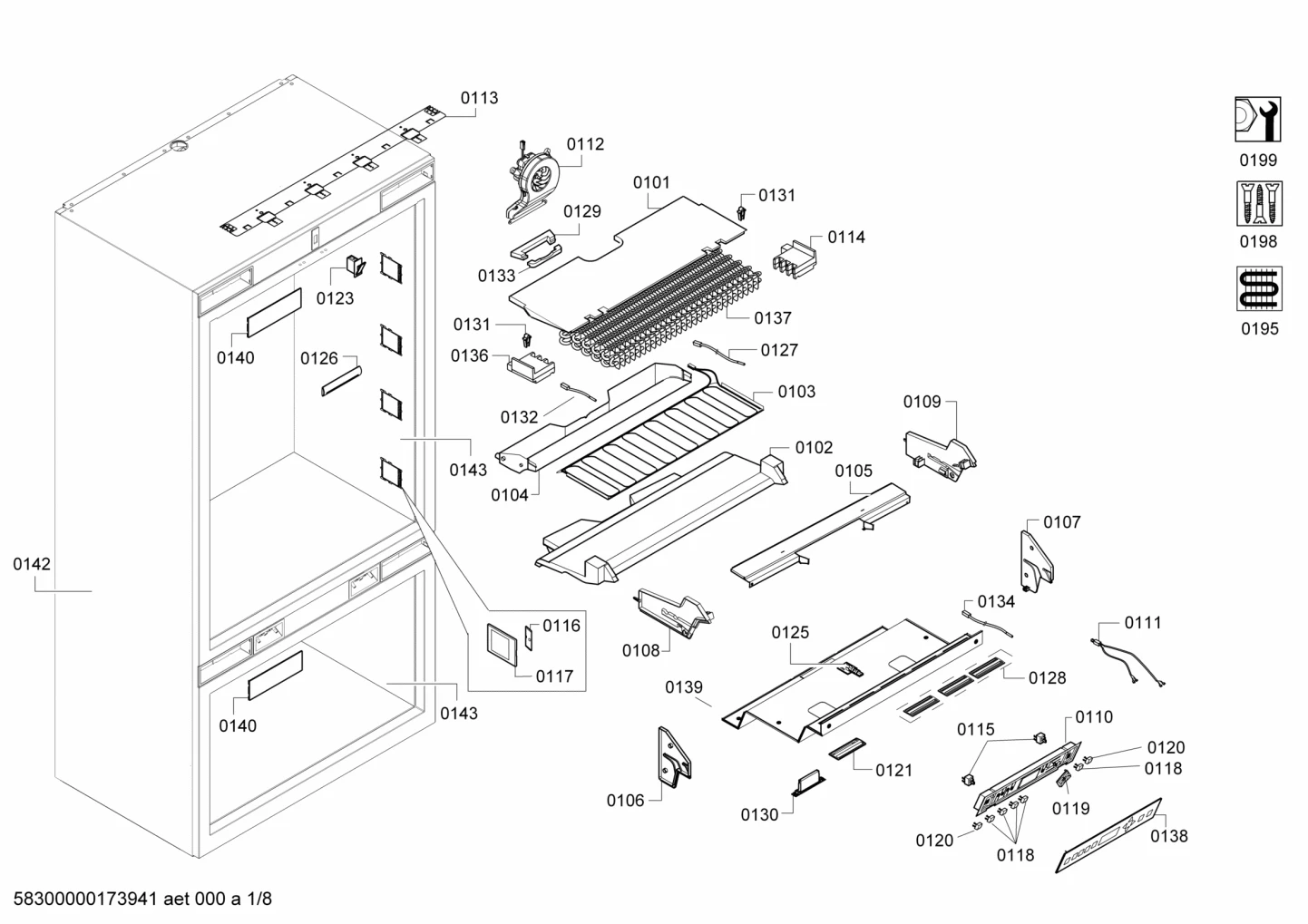

Mounting & Fixing, Door & Housing (0101-0199)
Parts in Mounting & Fixing, Door & Housing (0101-0199)
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | - |
| 0101 |  | Screw | $4.19 Part Advantage |
| 0102 |  | Insulating part | - |
| 0103 | | Heater-defrost | $74.33 Parts Dr |
| 0104 |  | Heating element | $50.41 Parts Dr |
| 0106 | | Fixture | - |
| 0107 | | Fixture | - |
| 0108 | | Fixture | - |
| 0109 |  | Fixture | - |
| 0110 | | Operating module | - |
| 0111 | | Cable harness | - |
| 0112 |  | Fan motor | $207.02 Part Advantage |
| 0113 |  | Fixture | $29.34 ApplianceParts Pro |
| 0114 | | Foam piece | - |
| 0115 |  | Switch | $17.95 Parts Dr |
| 0116 |  | Diode-led | $46.87 Part Advantage |
| 0117 |  | Cover | $9.67 ApplianceParts Pro |
| 0118 | | Key | $6.40 PartSelect |
| 0119 | | Key | $6.40 PartSelect |
| 0120 |  | Key | - |
| 0121 | | Air grid | - |
| 0123 |  | Door Switch | $9.21 Part Advantage |
| 0125 | | Holder | - |
| 0126 | | Air grid | - |
| 0127 |  | Limiter-temperature | $48.13 Part Advantage |
| 0128 |  | Air grid | $7.95 ApplianceParts Pro |
| 0129 |  | Support | - |
| 0130 |  | Carbon Odor Filter | $21.76 Part Advantage |
| 0131 | | Holder | $4.18 ApplianceParts Pro |
| 0132 |  | Sensor | $14.65 Part Advantage |
| 0133 |  | Support | - |
| 0134 |  | Sensor-NTC | $12.14 Part Advantage |
| 0136 |  | Foam piece | $7.68 PartSelect |
| 0137 |  | Installation set | $78.31 ApplianceParts Pro |
| 0138 |  | Panel-insert | - |
| 0139 | | Worktop | - |
| 0140 |  | Cover | $2.88 RepairClinic |
| 0142 | – | 00984470 Panel side | - |
| 0143 | – | 00984471 Inner liner | - |
| 0199 |  | Hose | - |
| 0199 |  | Nut | $1.73 RepairClinic |
