Model
Thermador T36BB110SS/14
Refrigerator
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelThermador
T36BB110SS/14Refrigerator
10 diagrams224 parts

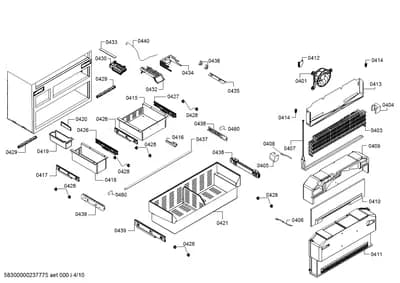

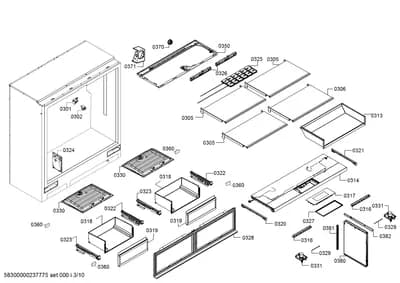

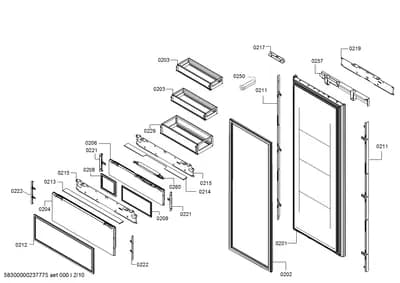

Parts Sections (10)
Diagram

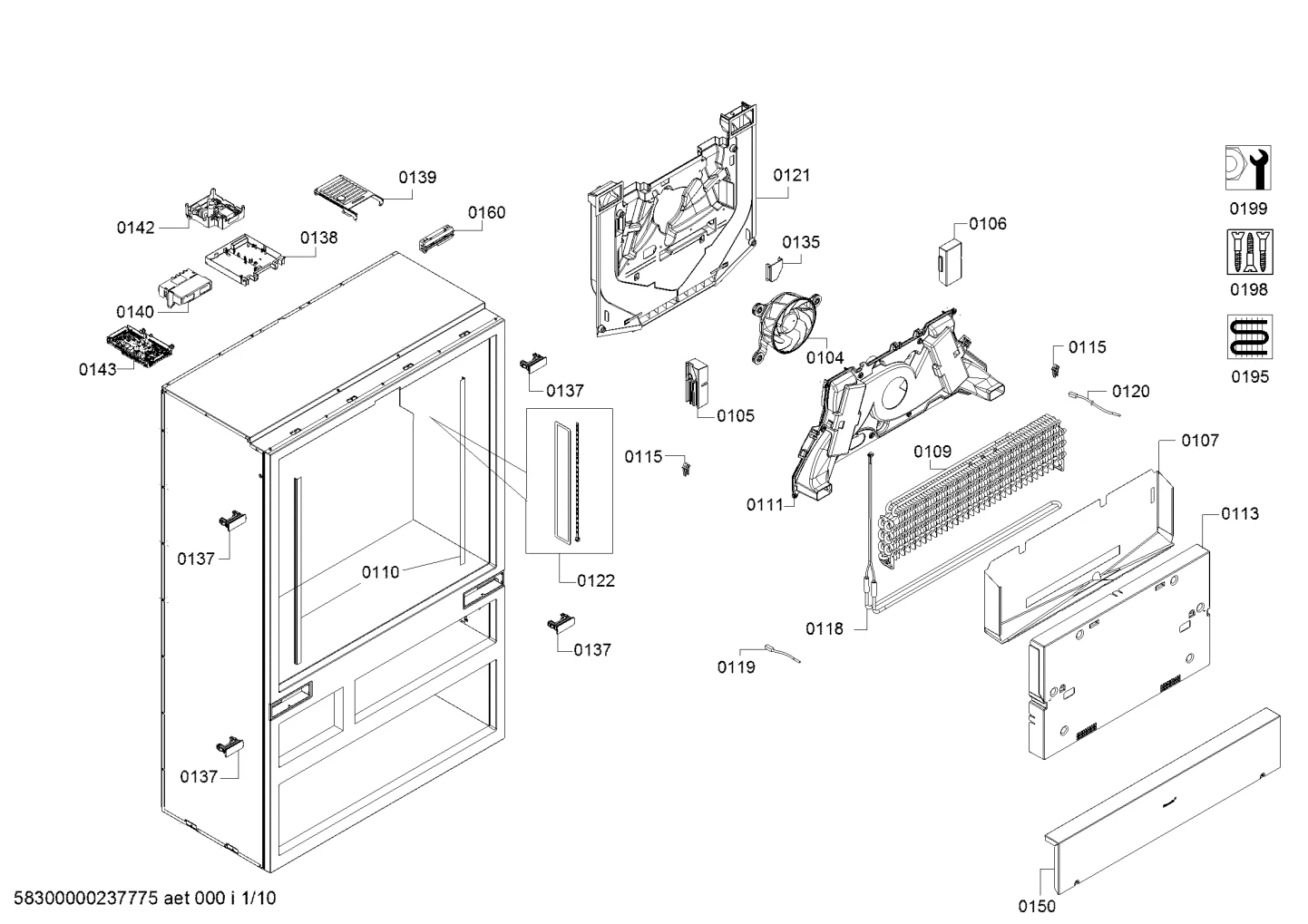

Lighting, Door & Housing (0103-8100)
Parts in Lighting, Door & Housing (0103-8100)
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0103 |  | Screw | $6.40 PartSelect |
| 0104 |  | Fan | - |
| 0105 | – | 12048703 Foam piece | - |
| 0106 | – | 12048705 Foam piece | - |
| 0107 | – | 11060677 Water drainage bowl | - |
| 0108 | – | 12042523 Holder | - |
| 0109 | – | 20006174 Evaporator | - |
| 0110 | – | 12043876 Wire | - |
| 0111 | – | 20006173 Air duct | - |
| 0113 | | Insulation mat | - |
| 0114 | – | 20006175 Insulating part | - |
| 0115 |  | Clip | - |
| 0116 | – | 23003689 Fixture | - |
| 0118 | | Heater-defrost | - |
| 0119 | – | 12048717 Temperature sensor | - |
| 0120 | – | 12049709 Temperature sensor | - |
| 0121 | – | 20006176 Air duct | - |
| 0122 | – | 10031825 Diode-led | - |
| 0122 | | LED-Light bar | $60.64 |
| 0122 | – | 11060321 LED-Light bar | - |
| 0125 | – | 12041784 Flap | - |
| 0134 | | Strip | - |
| 0135 | | Part not included in this appliance | - |
| 0137 |  | Sensor | $10.88 Part Advantage |
| 0138 | | Cover | $42.55 |
| 0139 | – | 11061676 Cover | - |
| 0140 | – | 20007222 SMM set with 2 pre-programmed modules | - |
| 0141 | – | 23005009 Profile stripe | - |
| 0142 | | Power module | $104.39 ApplianceParts Pro |
| 0143 |  | Power module | - |
| 0150 |  | Screw | $2.51 Part Advantage |
| 0150 | | Cover sheet | - |
| 0160 |  | Sensor | $46.04 Part Advantage |
| 0170 |  | Charcoal Air Filter | $73.39 Parts Dr |
| 0190 | – | 10035457 SMM programmed | - |
| 0190 | – | 10035458 SubSMM programmed & operating module | - |
| 0195 | – | 00984470 Panel side | - |
| 0195 | – | 00984471 Inner liner | - |
| 0195 | – | 00984472 Cooling circuit | - |
| 0199 | – | 11063059 Installation kit | - |
| 0199 |  | Bracket | $19.25 Part Advantage |
| 0199 | | Seal | $23.39 ApplianceParts Pro |
| 8100 |  | UltraClarityPro™ Water Filter | $137.90 Parts Dr |
