Model
Thermador T36IB100SP/02
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelThermador
T36IB100SP/02Refrigerator
9 diagrams229 parts

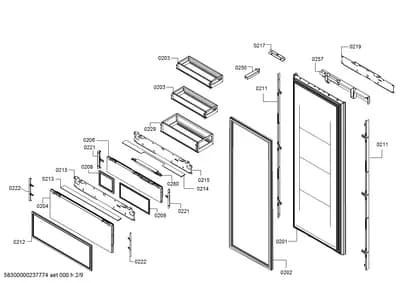

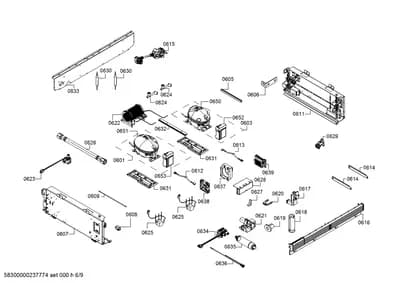

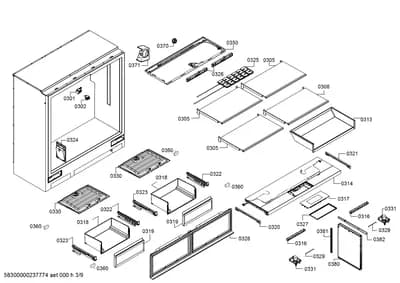

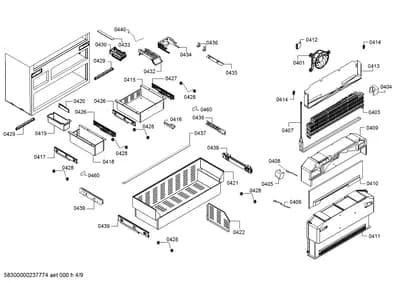

Parts Sections (9)
Diagram

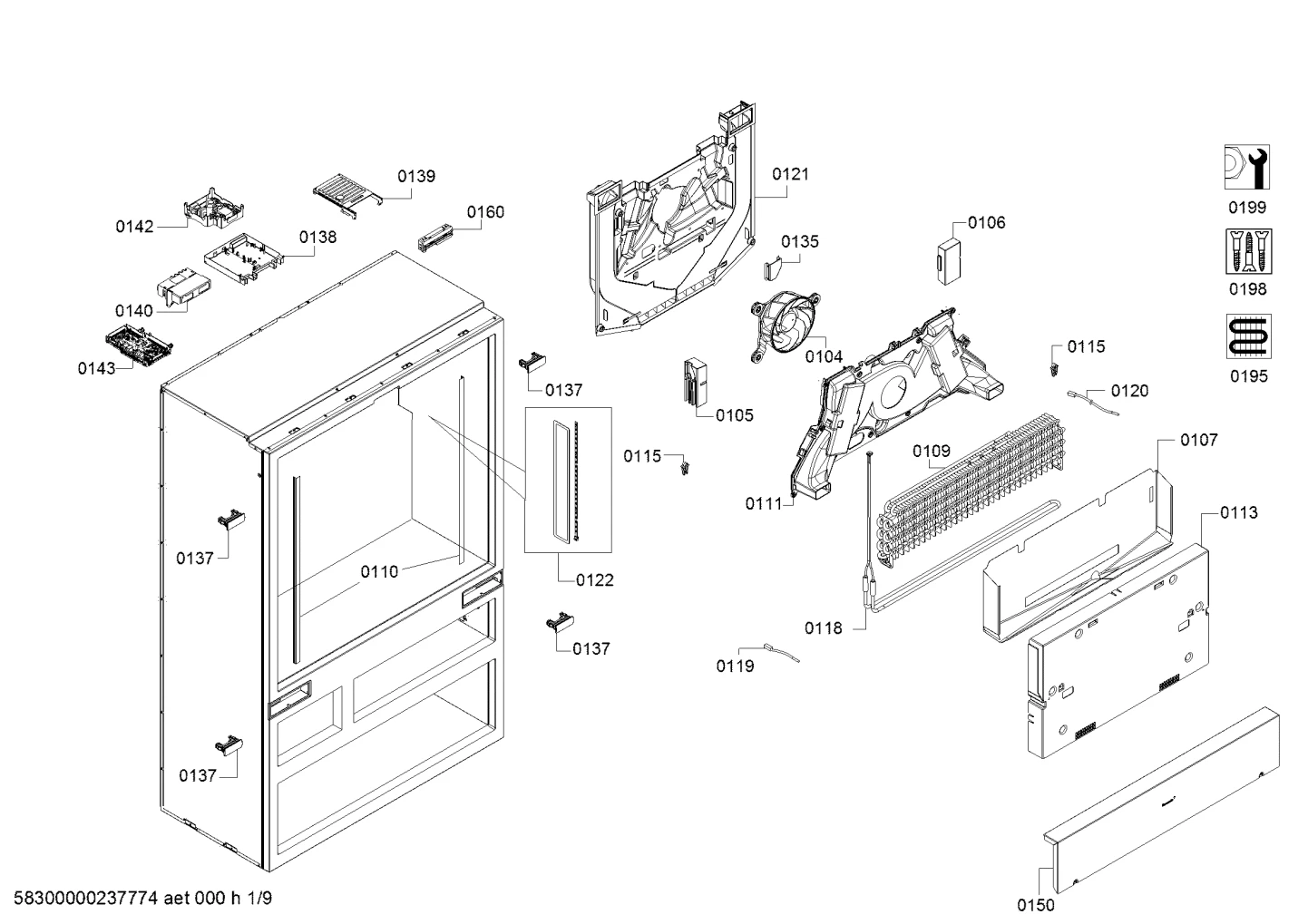

Door & Housing, Lighting (0103-8300)
Parts in Door & Housing, Lighting (0103-8300)
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0103 |  | Screw | $6.40 PartSelect |
| 0104 |  | Fan | - |
| 0105 | – | 12048703 Foam piece | - |
| 0106 | – | 12048705 Foam piece | - |
| 0107 | – | 11060677 Water drainage bowl | - |
| 0109 | – | 20006174 Evaporator | - |
| 0110 | – | 12043876 Wire | - |
| 0111 | – | 20006173 Air duct | - |
| 0113 | | Insulation mat | - |
| 0115 |  | Clip | - |
| 0118 | | Heater-defrost | - |
| 0119 | – | 12048717 Temperature sensor | - |
| 0120 | – | 12049709 Temperature sensor | - |
| 0121 | – | 20006176 Air duct | - |
| 0122 | – | 10031825 Diode-led | - |
| 0122 | | LED-Light bar | $60.64 |
| 0122 | – | 11060321 LED-Light bar | - |
| 0125 | – | 12041784 Flap | - |
| 0135 | | Part not included in this appliance | - |
| 0137 |  | Sensor | $10.88 Part Advantage |
| 0138 | | Cover | $42.55 |
| 0139 | – | 11061676 Cover | - |
| 0140 | | SMM set with 2 pre-programmed modules | $4,929.32 |
| 0141 | – | 23005009 Profile stripe | - |
| 0142 | | Power module | $104.39 ApplianceParts Pro |
| 0143 |  | Power module | - |
| 0150 | | Cover sheet | - |
| 0150 |  | Screw | $2.51 Part Advantage |
| 0160 |  | Sensor | $46.04 Part Advantage |
| 0170 |  | Charcoal Air Filter | $73.39 Parts Dr |
| 0190 | – | 20006565 SMM set with 2 pre-programmed modules | - |
| 0190 | – | 10035459 SMM programmed | - |
| 0190 | – | 10035460 SubSMM programmed & operating module | - |
| 0195 | – | 00984472 Cooling circuit | - |
| 0195 | – | 00984470 Panel side | - |
| 0195 | – | 00984471 Inner liner | - |
| 0199 |  | Bracket | $19.25 Part Advantage |
| 0199 | – | 11063059 Installation kit | - |
| 0199 |  | Cover | $25.19 ApplianceParts Pro |
| 0199 | | Seal | $23.39 ApplianceParts Pro |
| 0199 | | Fixing kit | $127.27 |
| 8300 |  | UltraClarityPro™ Water Filter | $137.90 Parts Dr |
