Model
Bosch TKA9110UC/01
Coffee Machine
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
TKA9110UC/01Coffee Machine
1 diagram43 parts
Parts Sections (1)

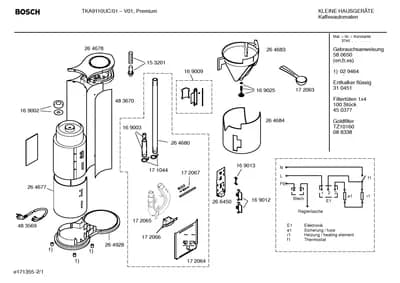

Diagram
Seals & Gaskets, heatingparts (0001-0100)
Parts in Seals & Gaskets, heatingparts (0001-0100)
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Lid | - |
| 0002 |  | 00264683NLA Filtering jug | Discontinued |
| 0003 | | Spring | - |
| 0004 |  | Rubber foot | - |
| 0005 | | Hinge | - |
| 0006 |  | Sealing kit | $6.70 Part Advantage |
| 0007 | | Spoon | - |
| 0009 | | 00169002NLA Sealing kit | Discontinued |

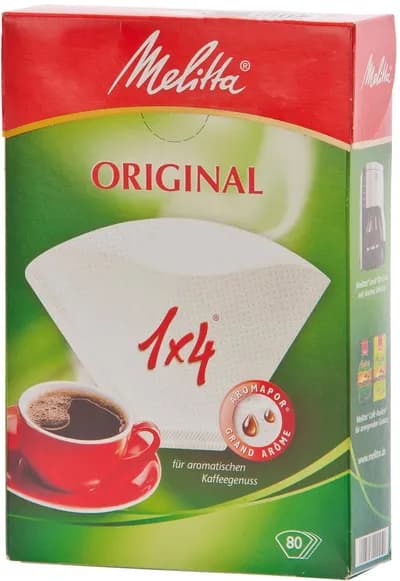

| 0010 |  | Paper filter | - |
| 0011 | | Hose | - |
| 0012 | | Housing | - |
| 0013 | | Hose | - |
| 0014 | | 00171044NLA Clamp | Discontinued |
| 0015 |  | 00088338NLA Gold filter | Discontinued |
| 0016 | | Lightguide | - |
| 0017 | | Case-bottom | - |
| 0018 | | 00172067NLA Fuse-thermal | Discontinued |
| 0019 |  | 00169012NLA Push button set | Discontinued |
| 0020 | | Heating element | - |
| 0021 | | 00266450NLA PC board | Discontinued |
| 0022 | | Power cord | - |
| 0023 | | Case-bottom | - |
| 0024 | | Regulator-temperature | - |
| 0025 | | 00172064NLA Support | Discontinued |

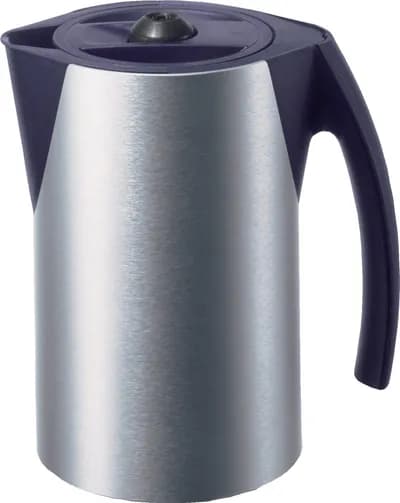

| 0026 |  | Thermo jug | - |
| 0027 | | Hose | - |
| 0028 |  | Lid | - |
| 0029 |  | Sealing | - |
| 0030 | | Ring | - |

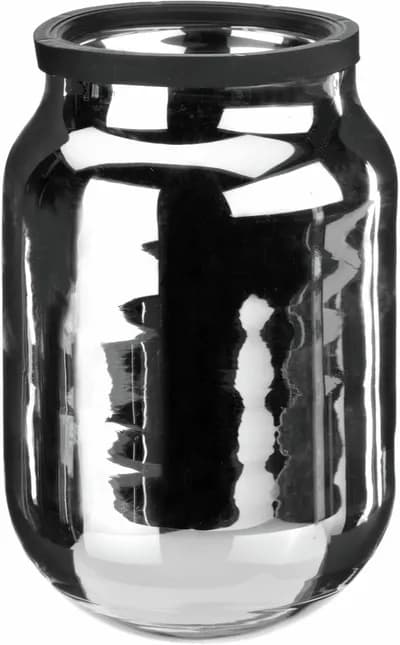

| 0031 |  | Jug | - |
| 0032 |  | 00264674NLA Lid | Discontinued |
| 0033 | | Housing | - |
| 0034 | | Handle | - |
| 0035 | | Display | - |
| 0036 | | 00154323NLA Sealing kit | Discontinued |
| 0037 | | Case-bottom | - |
| 0038 | | Sealing | - |
| 0039 |  | Sealing kit | - |

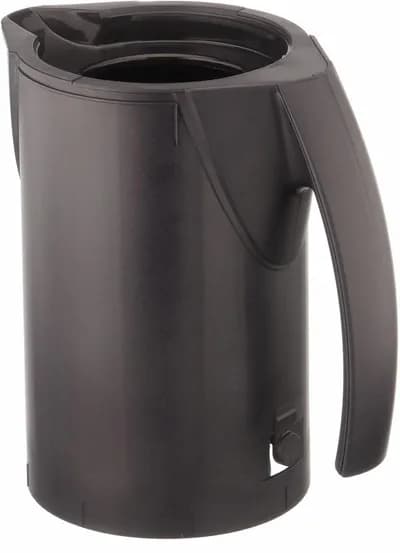

| 0040 |  | Housing | - |
| 0041 | | Housing | - |
| 0042 | | Housing | - |
| 0043 | | Handle | - |
| 0044 | | Panel | - |
| 0100 | | Instruction manual | - |
