Model
Bosch WAP24202UC/11
Washer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WAP24202UC/11Washer
5 diagrams102 parts
Parts Sections (5)
Diagram

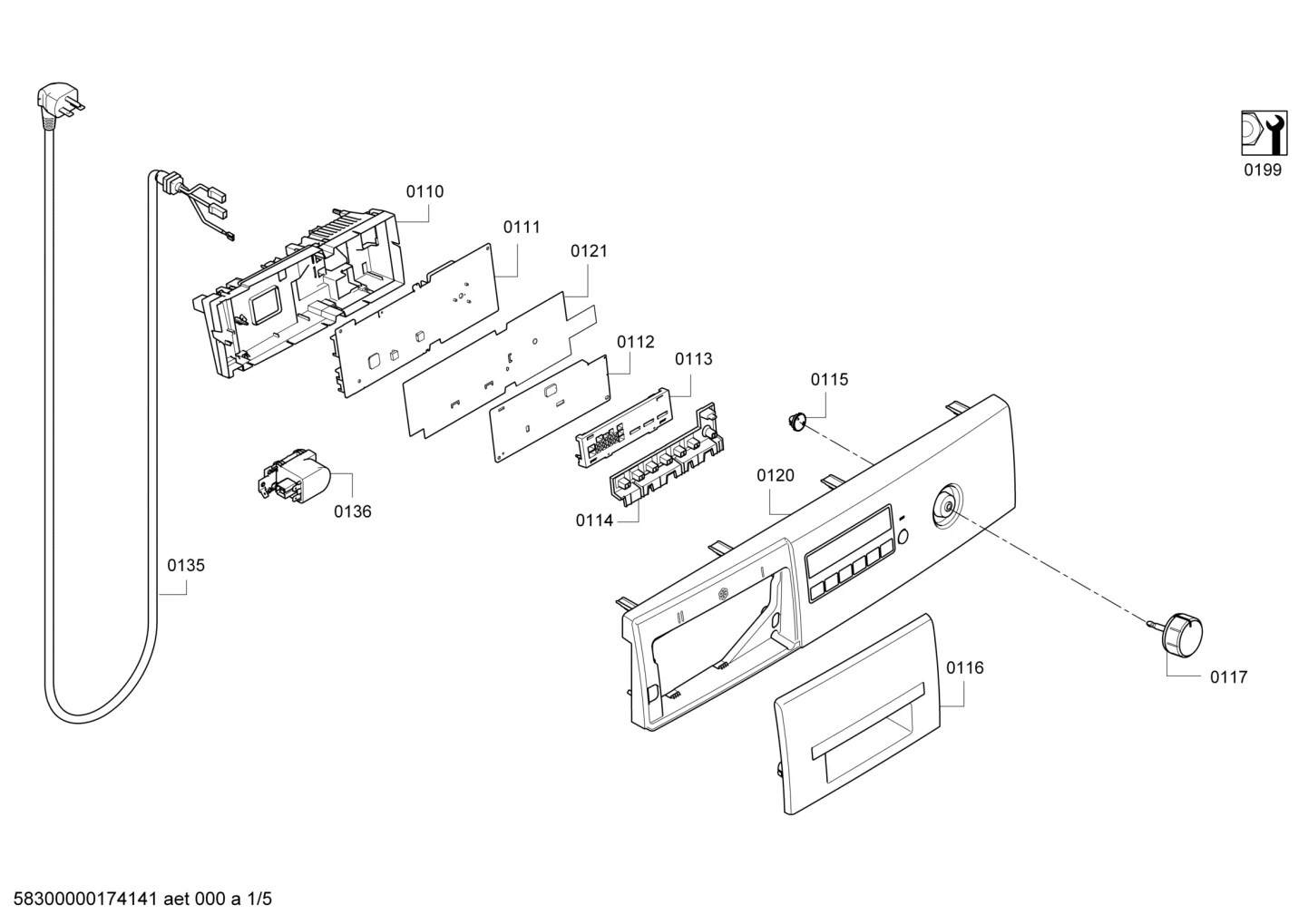

Door & Housing, Handles & Knobs (0110-0199)
Parts in Door & Housing, Handles & Knobs (0110-0199)
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0110 |  | Housing | - |

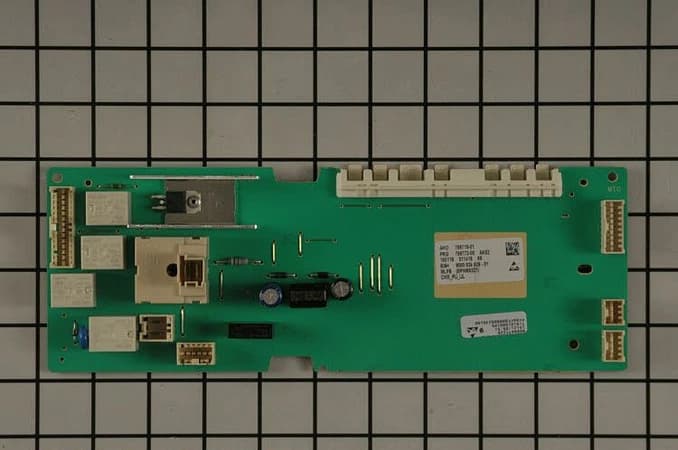

| 0111 |  | Power module | - |
| 0112 |  | Operating module | $184.44 Parts Dr |
| 0113 |  | Lightguide | - |
| 0114 |  | Push button set | $24.97 Parts Dr |
| 0115 |  | Coupling | $12.95 ApplianceParts Pro |
| 0116 |  | Tray handle-dispenser | $30.58 ApplianceParts Pro |
| 0117 | | Knob-programme | - |
| 0120 | | Panel-facia | - |
| 0121 |  | Cover | - |
| 0135 |  | Power cord | - |
| 0136 |  | Capacitor-interference suppre. | - |
| 0199 | | Part not included in this appliance | - |
