Model
Bosch WAT28401UC/20
Washer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WAT28401UC/20Washer
5 diagrams108 parts
Parts Sections (5)
Diagram

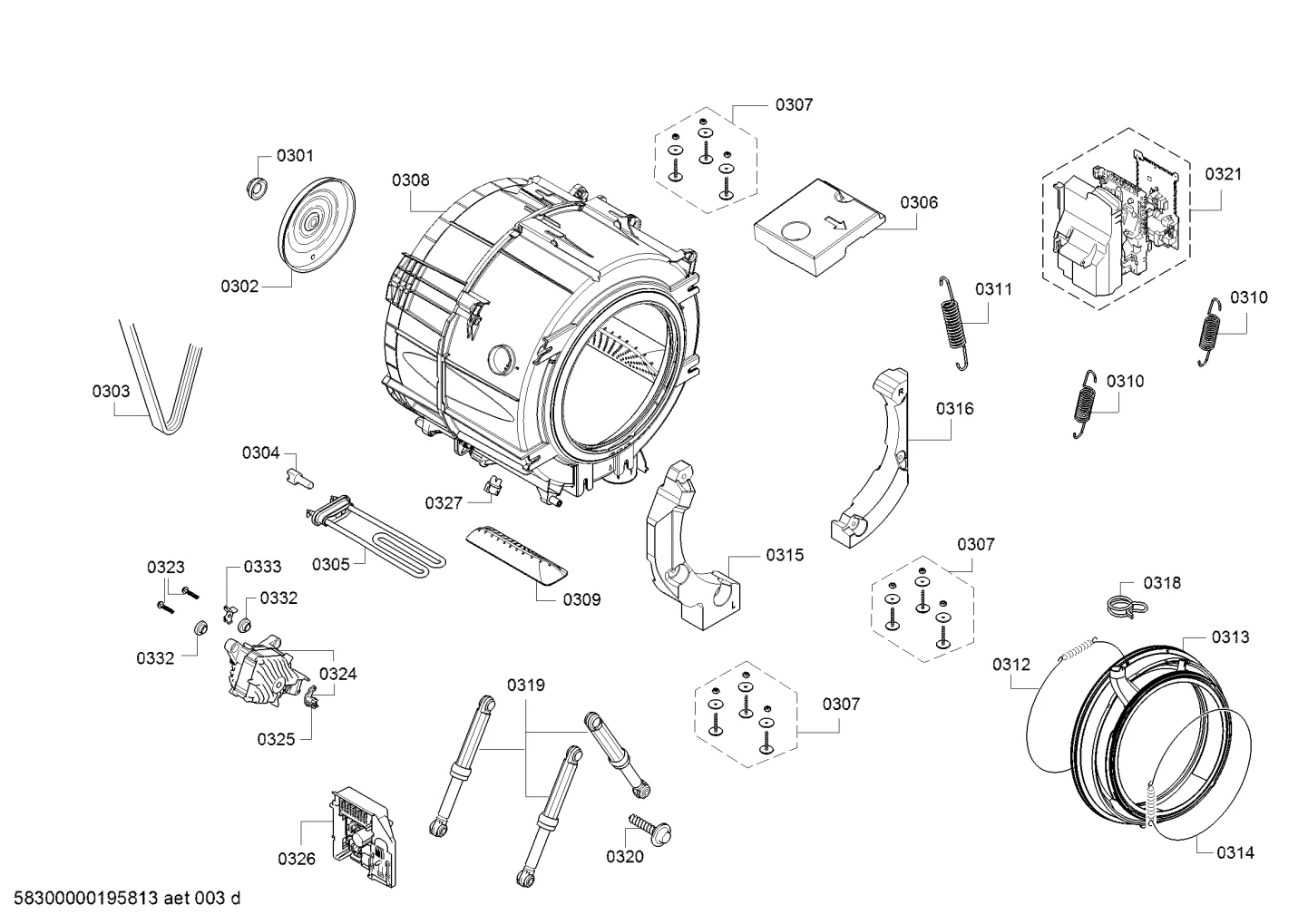

Screws, gaskets (0301-0333)
Parts in Screws, gaskets (0301-0333)
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0301 |  | Nut | - |
| 0302 |  | Pulley | - |
| 0303 |  | Drive Belt | $32.64 Part Advantage |
| 0304 |  | Sensor-NTC | $29.26 Parts Dr |
| 0305 |  | Heating element | $89.15 Parts Dr |

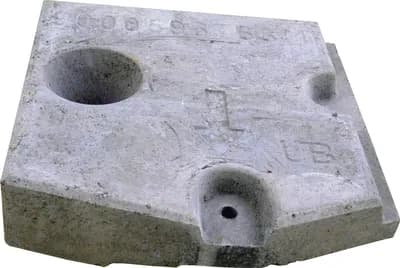

| 0306 |  | Weight | $24.71 ApplianceParts Pro |
| 0307 |  | Screw | - |

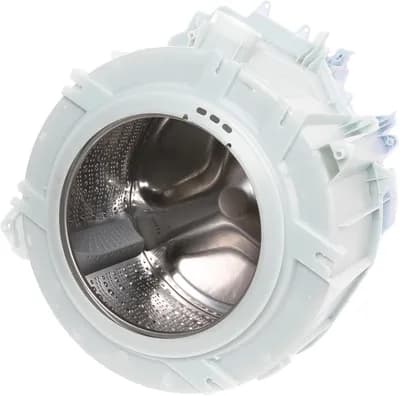

| 0308 |  | Oscillating system complete | $462.76 Part Advantage |
| 0309 |  | Agitator paddle laundry | $6.68 ApplianceParts Pro |
| 0310 |  | Spring-tank | - |
| 0311 |  | Spring-tank | $6.40 PartSelect |
| 0312 |  | fastening ring | $8.95 ApplianceParts Pro |
| 0313 | | Boot gasket grease resistant | $183.25 Part Advantage |
| 0313 | | Boot gasket grease resistant | $264.46 ApplianceParts Pro |
| 0313 | | Boot gasket | $128.33 Parts Dr |
| 0314 |  | fastening ring | $27.58 Parts Dr |
| 0315 |  | Weight | $19.31 Parts Dr |
| 0316 |  | Weight | $9.39 Parts Dr |
| 0318 |  | Hose clamp | - |
| 0319 |  | Shock absorber | $44.36 Part Advantage |

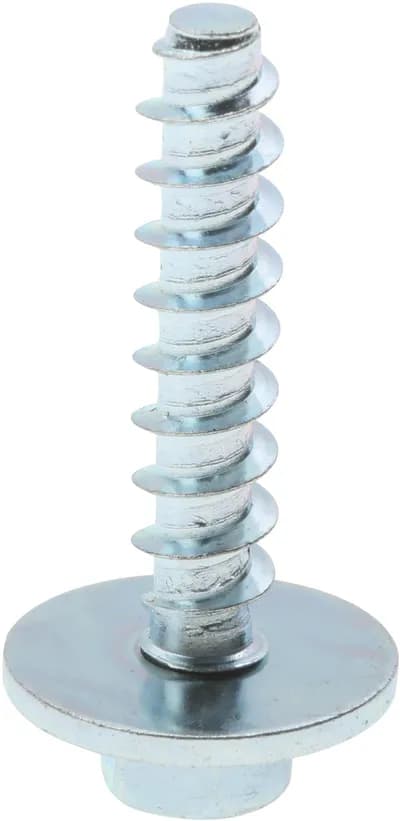

| 0320 |  | Screw | $3.35 Part Advantage |
| 0321 | | Power module programmed | $197.46 ApplianceParts Pro |
| 0321 | | 11030813NLA Power module not programmed | Discontinued |
| 0322 | | Part not included in this appliance | - |
| 0323 |  | Screw | - |
| 0324 |  | Motor | $149.02 Parts Dr |
| 0325 |  | Sensor | $22.32 ApplianceParts Pro |

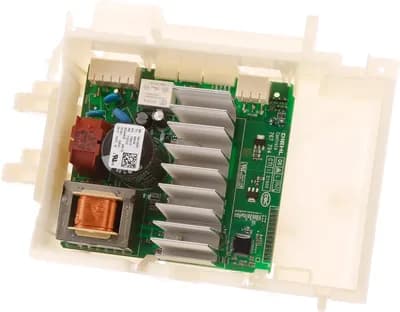

| 0326 |  | Inverter | $227.96 Part Advantage |
| 0327 | | Part not included in this appliance | - |
| 0328 | | Part not included in this appliance | - |
| 0329 | | Part not included in this appliance | - |
| 0330 | | Part not included in this appliance | - |
| 0331 | | Part not included in this appliance | - |
| 0332 |  | Bushing | $25.59 PartSelect |
| 0333 |  | Motor-protection | $20.46 ApplianceParts Pro |
