Model
Bosch WAW285H2UC/09
Washer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WAW285H2UC/09Washer
5 diagrams110 parts
Parts Sections (5)
Diagram

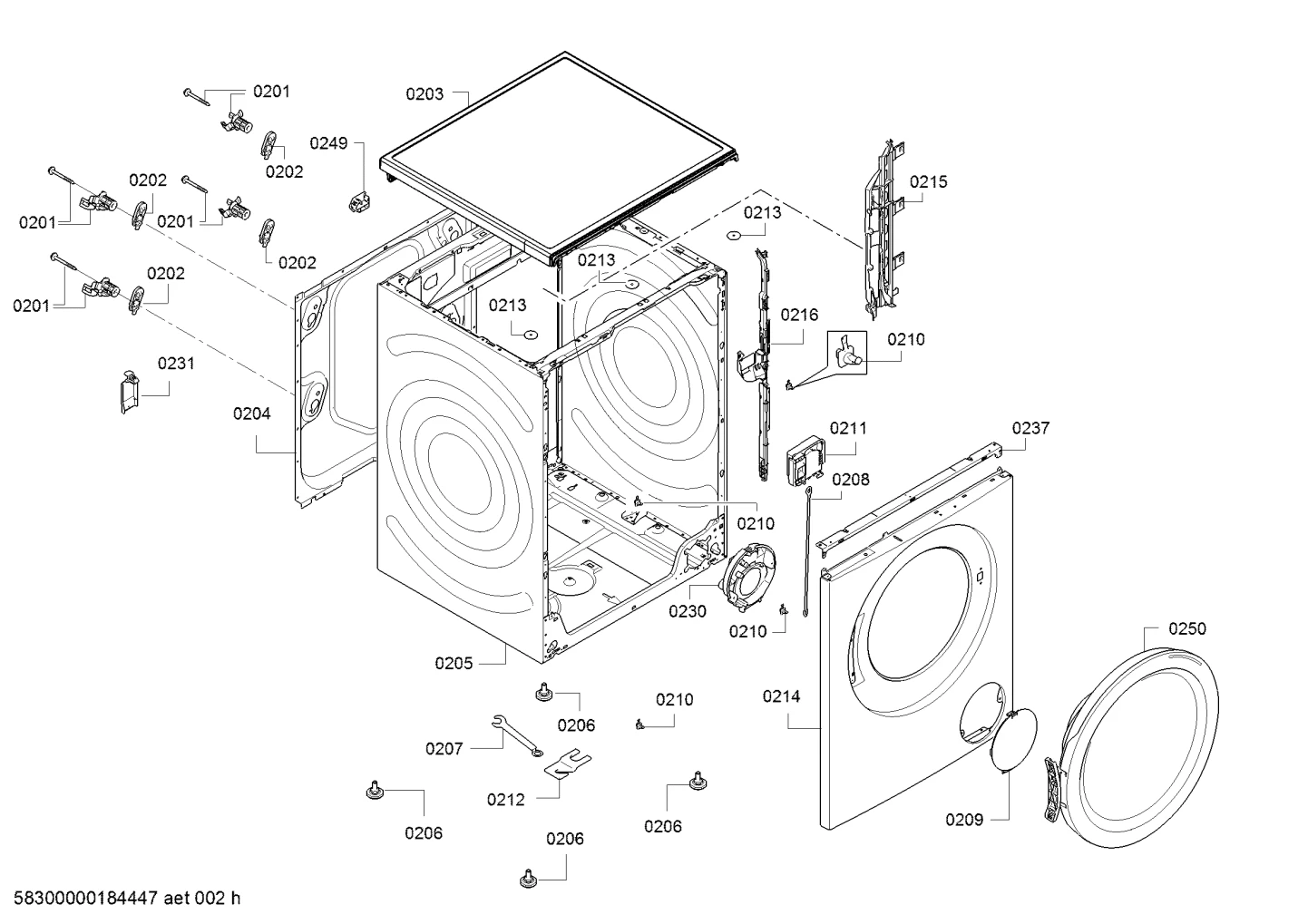

Door & Housing, Flaps & Holders (0201-0299)
Parts in Door & Housing, Flaps & Holders (0201-0299)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0201 |  | Fixing kit | $29.44 PartSelect |
| 0202 |  | Locking cap | $20.35 Parts Dr |
| 0203 |  | Worktop | - |
| 0204 |  | Back panel | - |
| 0205 |  | Housing | - |
| 0206 |  | Washer Foot | $9.21 Part Advantage |
| 0207 |  | Auxiliary tool | $5.40 ApplianceParts Pro |
| 0208 |  | Band | - |
| 0209 |  | Flap | $22.22 Parts Dr |
| 0210 |  | Fixture | $7.48 RepairClinic |
| 0211 |  | Electric lock | - |
| 0212 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0213 |  | Holder | - |
| 0214 | – | 20007667 Front panel | - |
| 0215 |  | Cable clip | - |
| 0216 |  | Duct | $12.37 ApplianceParts Pro |
| 0221 |  | Window | $53.38 ApplianceParts Pro |
| 0230 |  | Cover | $5.95 |
| 0231 |  | Cover | - |
| 0237 |  | Front rail | $17.91 PartSelect |
| 0250 |  | Window | $306.09 Part Advantage |
| 0299 |  | 00629154NLA Screw | Discontinued |
