Model
Bosch WAW285H2UC/26
Washer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WAW285H2UC/26Washer
5 diagrams111 parts
Parts Sections (5)
Diagram
Door & Housing, Handles & Knobs (0101-0129)
Parts in Door & Housing, Handles & Knobs (0101-0129)
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Panel-facia | - |
| 0102 |  | Tray handle-dispenser | - |
| 0103 |  | Knob-programme | - |

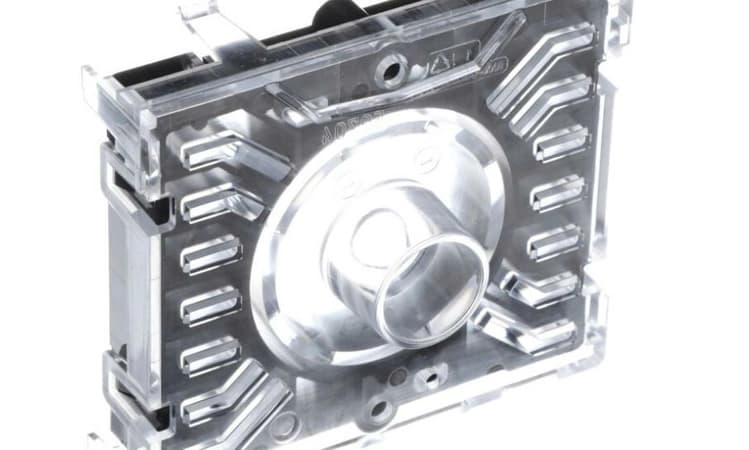

| 0105 |  | LED-plate | $37.12 Parts Dr |
| 0106 |  | Display | $253.64 Parts Dr |
| 0108 |  | Operating module not programmed | - |
| 0108 |  | Operating module programmed | - |
| 0109 |  | Frame | - |
| 0110 |  | Power cord | $56.83 Parts Dr |
| 0111 |  | Handle-cap shaped | - |
| 0112 |  | Clamping piece | $24.27 Part Advantage |
| 0123 |  | Frame | - |

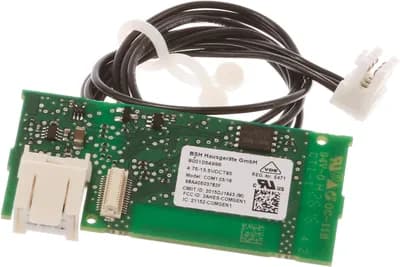

| 0124 |  | Connectivity module | - |
| 0129 |  | Screw | - |
