Model
Bosch WFD2072GB/06
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFD2072GB/06
1 diagram43 parts
Parts Sections (1)
Diagram

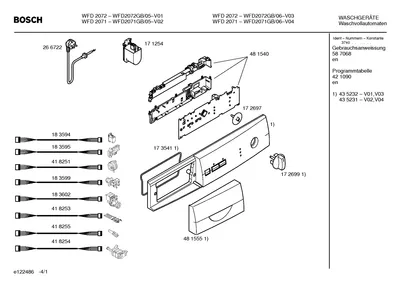

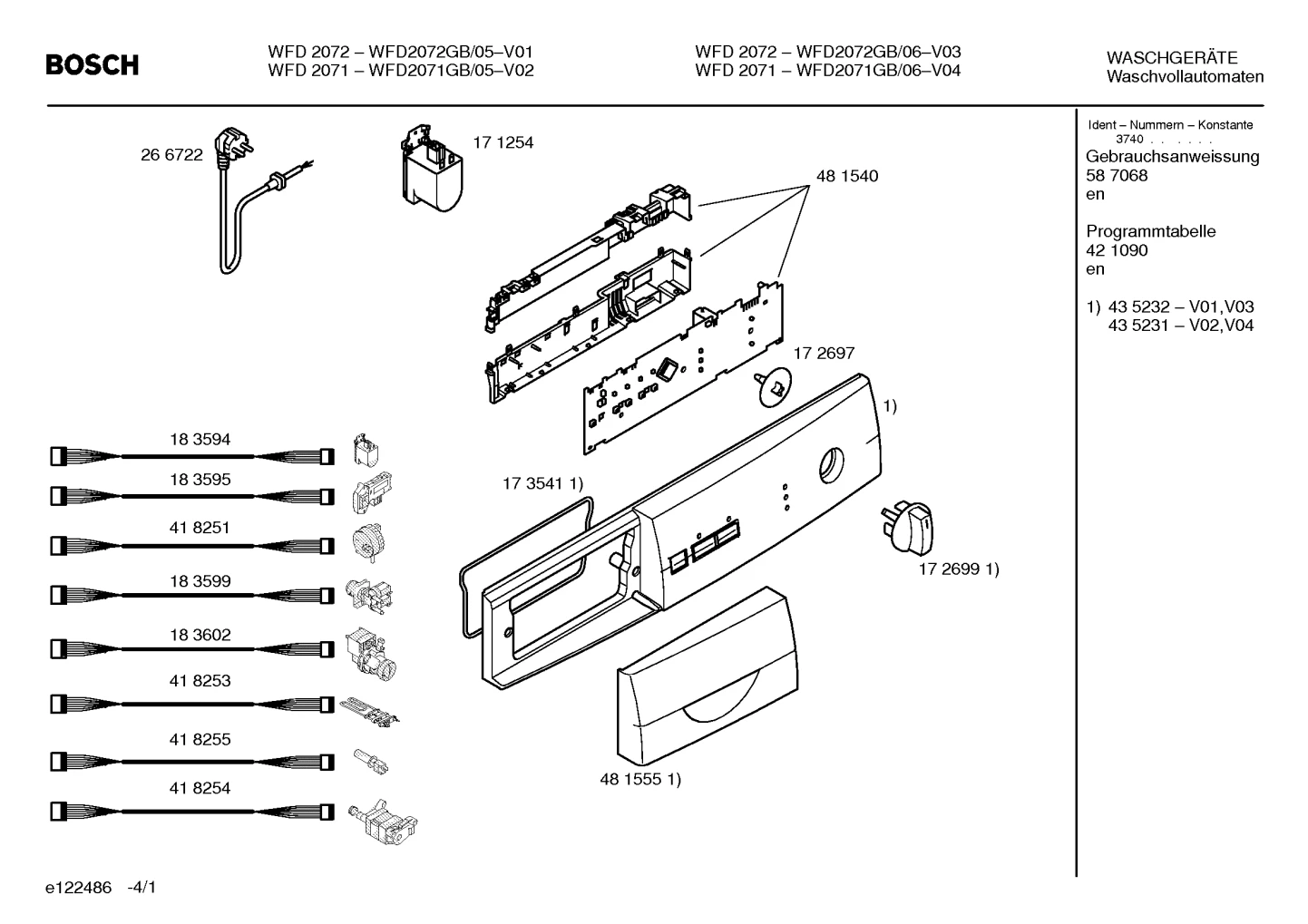

Hoses, Door & Housing (0102-0446)
Parts in Hoses, Door & Housing (0102-0446)
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | Power cord | - |
| 0104 |  | Capacitor-interference suppre. | - |
| 0122 |  | Coupling | - |
| 0124 |  | Knob-programme | $46.54 ApplianceParts Pro |
| 0206 |  | Holder | - |
| 0212 |  | Foot | $14.36 Parts Dr |
| 0214 |  | Worktop | - |
| 0216 |  | Holder | - |
| 0227 |  | Holder | $6.29 ApplianceParts Pro |
| 0232 |  | Bushing | $10.35 RepairClinic |
| 0234 |  | Hinge-window | $35.64 Parts Dr |
| 0236 |  | fastening ring | $12.98 Part Advantage |
| 0240 |  | Window | $54.77 Parts Dr |
| 0246 |  | Axis | $12.91 Parts Dr |
| 0308 |  | Sealing | $34.80 ApplianceParts Pro |
| 0325 | – | 10014435 Sensor-NTC | - |
| 0328 |  | Screw | - |
| 0332 |  | fastening ring | $10.57 ApplianceParts Pro |
| 0334 |  | Boot Gasket | $76.18 Part Advantage |
| 0338 |  | Fixing kit | - |
| 0340 |  | Weight | - |
| 0342 |  | Support | - |
| 0348 |  | Shock absorber | $160.57 Part Advantage |
| 0354 |  | Holder | - |
| 0356 |  | Fixture | $5.89 Parts Dr |
| 0400 |  | Hose-inlet | - |
| 0406 |  | Valve-magnet | $26.41 ApplianceParts Pro |
| 0408 |  | Hose-valve/soap box | $35.95 ApplianceParts Pro |
| 0409 |  | Holder | - |
| 0412 |  | Dispenser case | - |
| 0414 |  | Dispenser tray | - |
| 0416 |  | Hose-fill | - |
| 0417 |  | fastening ring | - |
| 0420 |  | Ball-sump | - |
| 0422 |  | fastening ring | - |
| 0424 |  | 00424981NLA Pressure chamber | Discontinued |
| 0430 |  | Duct | - |
| 0431 |  | Duct | - |
| 0434 |  | Container return | - |
| 0436 |  | Drain Hose | - |
| 0438 |  | 00655300replaces 00092126 Holder | $14.40 ApplianceParts Pro |
| 0442 | | Sealing | - |
| 0446 | | Filter-fluff | $20.93 Part Advantage |
