Model
Bosch WFF1200GB/14
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFF1200GB/14
1 diagram72 parts
Parts Sections (1)
Diagram

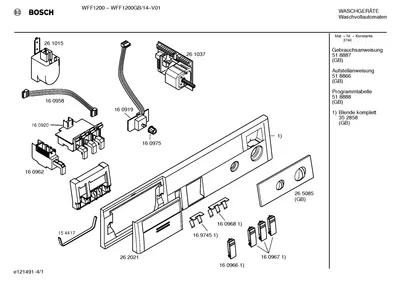

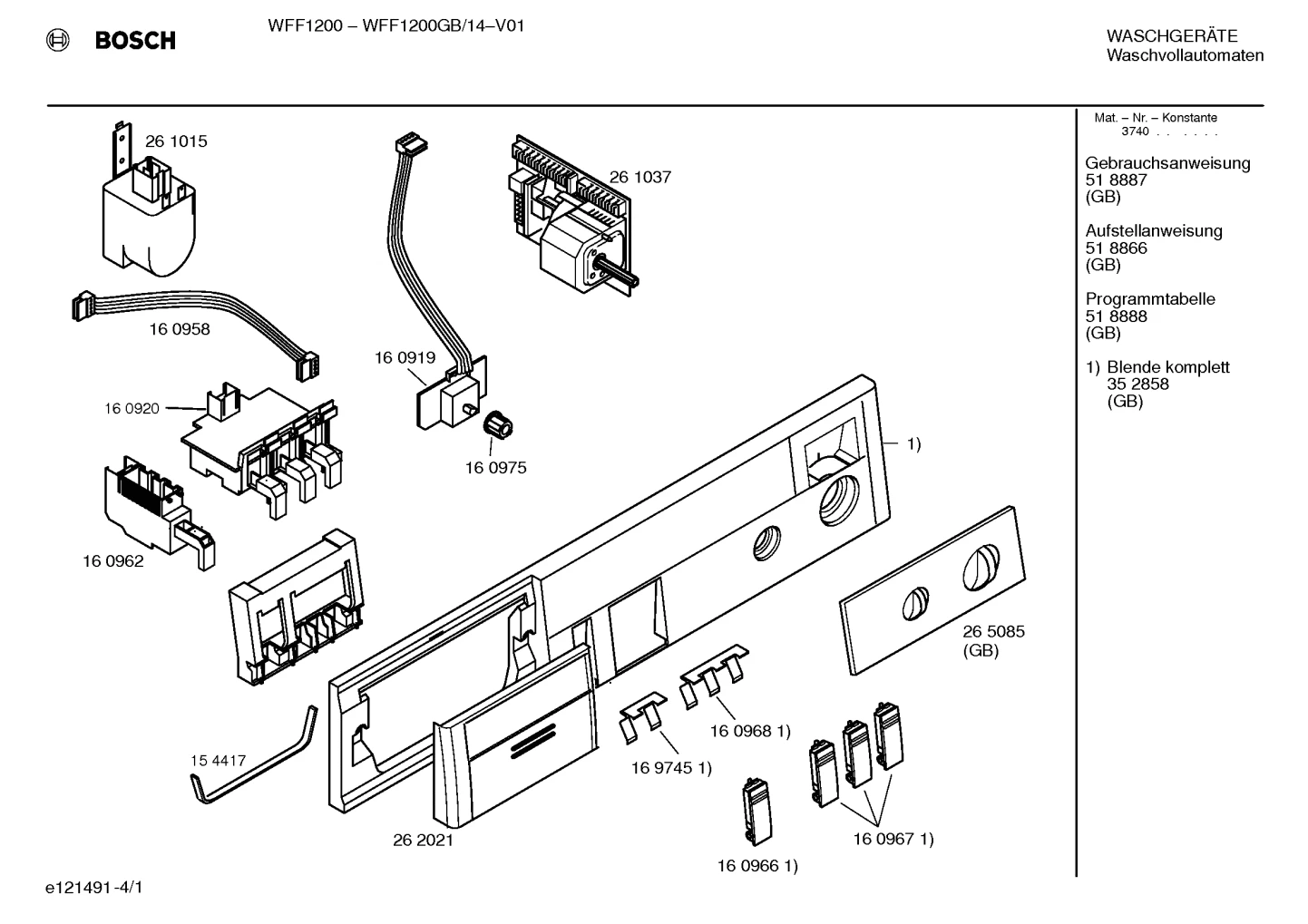

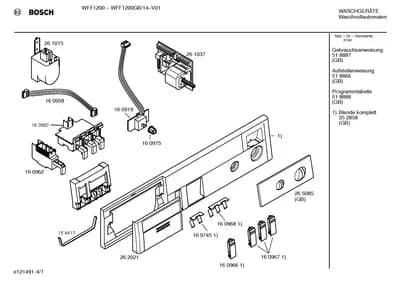

Flaps & Holders, Screws (0006-0454)
Parts in Flaps & Holders, Screws (0006-0454)
74 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0006 |  | Sealing | - |
| 0202 | | Transit bolt | - |
| 0203 |  | Transit bolt | - |
| 0208 |  | Cover | - |
| 0209 | | Holder | - |
| 0210 | | Clip | - |
| 0211 | | Nut | - |
| 0212 | | 00474870NLA Case-rear part | Discontinued |
| 0214 | | Housing | - |
| 0216 |  | Foot | - |
| 0217 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0219 | | Holder | - |
| 0220 | | Holder | - |
| 0224 |  | Holder | $6.27 Parts Dr |
| 0227 | | Front panel | - |
| 0228 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0230 |  | Window | $63.71 ApplianceParts Pro |
| 0233 |  | Hinge-window | - |
| 0235 | | 00170935NLA Electric lock | Discontinued |
| 0240 |  | Worktop | - |
| 0302 |  | Screw | $4.45 ApplianceParts Pro |
| 0303 |  | Pulley | $81.95 PartSelect |
| 0304 | | Screw | - |
| 0305 |  | Screw | - |
| 0306 | | Bearing cross | - |
| 0306 |  | Shaft seal | - |
| 0307 |  | Bearing set | - |
| 0307 | | Spring guide | - |
| 0309 |  | Heating element | $110.41 PartSelect |
| 0310 |  | Belt-drive | - |
| 0314 |  | Spring-tank | - |
| 0315 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0316 |  | Spring-tank | $27.78 RepairClinic |
| 0317 |  | 00029863NLA Spring guide | Discontinued |
| 0318 | | Tub | - |
| 0319 | | Fixing kit | - |
| 0320 | | 00233132NLA Drum | Discontinued |
| 0323 |  | Shock absorber | $44.85 RepairClinic |
| 0324 | | Cover | - |
| 0325 |  | Motor | - |
| 0326 |  | Carbon Brush | $54.65 Part Advantage |
| 0327 |  | Holder | - |
| 0328 |  | Screw | $9.95 ApplianceParts Pro |
| 0329 | | Screw | - |
| 0330 | | Holder | - |
| 0331 |  | Agitator paddle laundry | $10.95 ApplianceParts Pro |
| 0332 |  | Sealing | $43.34 ApplianceParts Pro |
| 0333 | | Front | - |
| 0334 | | Weight | - |
| 0335 | | Lock-clamp | - |
| 0337 | | Screw | - |
| 0403 |  | Filter-water inlet | $17.16 Parts Dr |
| 0404 | | Hose connection inlet | - |
| 0405 | | 00029867NLA Sealing | Discontinued |
| 0406 |  | Drain Hose | - |
| 0407 |  | Stud | - |
| 0408 |  | Holder | $14.40 ApplianceParts Pro |
| 0410 |  | Hose | $64.14 ApplianceParts Pro |
| 0411 |  | Hose-vent | $35.33 ApplianceParts Pro |
| 0424 | | Sealing | - |
| 0427 |  | fastening ring | - |
| 0429 |  | Ball-sump | - |
| 0430 | | fastening ring | - |
| 0431 |  | Outlet hose | - |
| 0434 | | Latch | - |
| 0435 |  | Pump-drain | $96.08 ApplianceParts Pro |
| 0436 | | Sealing | - |
| 0437 | | 00096182NLA Pump-housing | Discontinued |
| 0438 | | 00095269NLA Sieve | Discontinued |
| 0440 |  | Hose-pressure chamber | $12.95 ApplianceParts Pro |
| 0442 | | 00069164NLA Sealing | Discontinued |
| 0451 | | Filter-water inlet | $17.16 Parts Dr |
| 0453 |  | Branching piece | - |
| 0454 |  | Valve | - |
