Model
Bosch WFG2420GB/01
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFG2420GB/01
1 diagram71 parts
Parts Sections (1)
Diagram

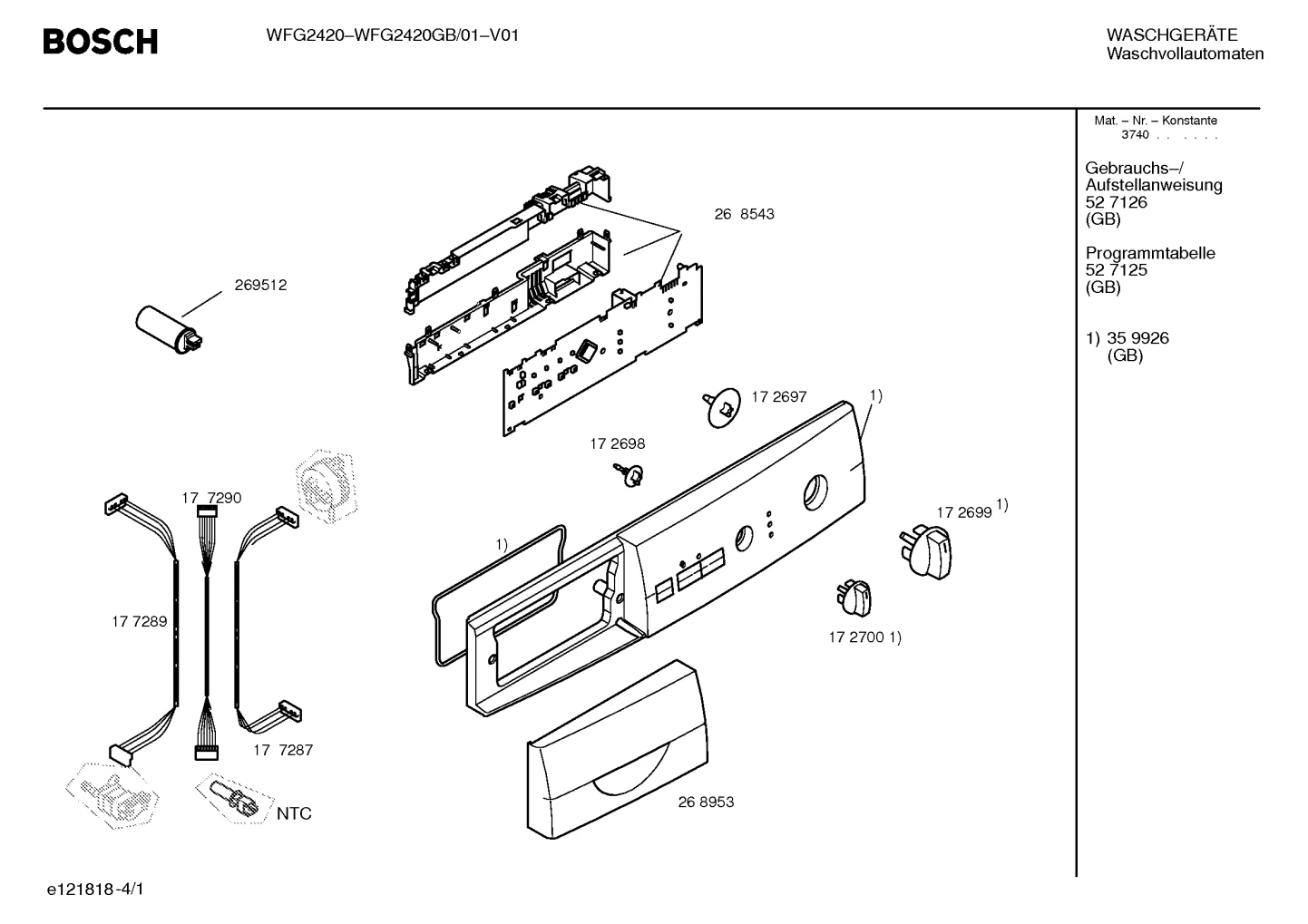

handles knobs , Flaps & Holders (0018-0478)
Parts in handles knobs , Flaps & Holders (0018-0478)
72 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0018 |  | Coupling | - |
| 0020 |  | Knob-programme | $46.54 ApplianceParts Pro |
| 0022 |  | Coupling | - |
| 0022 |  | Knob-RPM | - |
| 0212 |  | Transit bolt | - |
| 0214 |  | Transit bolt | - |
| 0216 | | Cover | - |
| 0218 | | Holder | - |
| 0220 |  | Worktop | - |
| 0226 | | Holder | - |
| 0228 |  | Holder | $6.27 Parts Dr |
| 0230 | | 00474870NLA Case-rear part | Discontinued |
| 0232 | | Nut | - |
| 0234 | | Housing | - |
| 0236 |  | Foot | - |
| 0240 | | Rail | - |
| 0242 | | Rail | - |
| 0248 |  | Auxiliary tool | $11.39 ApplianceParts Pro |
| 0250 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0252 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0256 |  | Window | $63.71 ApplianceParts Pro |
| 0260 |  | 00265776NLA Handle | Discontinued |
| 0262 |  | Hinge-window | - |
| 0264 |  | Worktop | - |
| 0266 | | 00170935NLA Electric lock | Discontinued |
| 0310 |  | Screw | $4.45 ApplianceParts Pro |
| 0312 |  | Pulley | $81.95 PartSelect |
| 0314 | | Screw | - |
| 0316 |  | Screw | - |
| 0318 | | Bearing cross | - |
| 0320 |  | Shaft seal | - |
| 0322 |  | Bearing set | - |
| 0326 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0328 |  | Spring-tank | - |
| 0330 |  | Spring-tank | $27.78 RepairClinic |
| 0332 | | Fixing kit | - |
| 0334 | | Tub | - |
| 0336 | | 00233132NLA Drum | Discontinued |
| 0338 |  | Sealing | $43.34 ApplianceParts Pro |
| 0344 | | Lock-clamp | - |
| 0348 | | Screw | - |
| 0350 |  | Belt-drive | - |
| 0352 | – | 10014435 Sensor-NTC | - |
| 0354 | | Cover | - |
| 0360 | | Holder | - |
| 0362 |  | Agitator paddle laundry | $10.95 ApplianceParts Pro |
| 0366 |  | Screw | $9.95 ApplianceParts Pro |
| 0368 |  | Motor | - |
| 0371 |  | Holder | - |
| 0372 | | Screw | - |
| 0374 |  | Carbon Brush | $54.65 Part Advantage |
| 0376 |  | Shock absorber | $44.85 RepairClinic |
| 0378 |  | Heating element | $110.41 PartSelect |
| 0410 |  | Hose-inlet | - |
| 0414 |  | Filter-water inlet | $17.16 Parts Dr |
| 0416 | | Hose connection inlet | - |
| 0418 | | 00029867NLA Sealing | Discontinued |
| 0422 |  | Stud | - |
| 0424 |  | Holder | $14.40 ApplianceParts Pro |
| 0426 |  | Hose-vent | $35.33 ApplianceParts Pro |
| 0440 | | Sealing | - |
| 0446 |  | fastening ring | - |
| 0448 |  | Outlet hose | - |
| 0450 |  | Ball-sump | - |
| 0452 | | fastening ring | - |
| 0456 | | Sealing | - |
| 0460 | | Filter-fluff | $20.93 Part Advantage |
| 0462 | | Latch | - |
| 0468 | | 00069164NLA Sealing | Discontinued |
| 0472 |  | Hose-fill | - |
| 0474 |  | Hose-pressure chamber | $12.95 ApplianceParts Pro |
| 0478 |  | Hose | $64.14 ApplianceParts Pro |
