Model
Bosch WFK7410GB/08
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFK7410GB/08Washer
1 diagram45 parts
Parts Sections (1)
Diagram

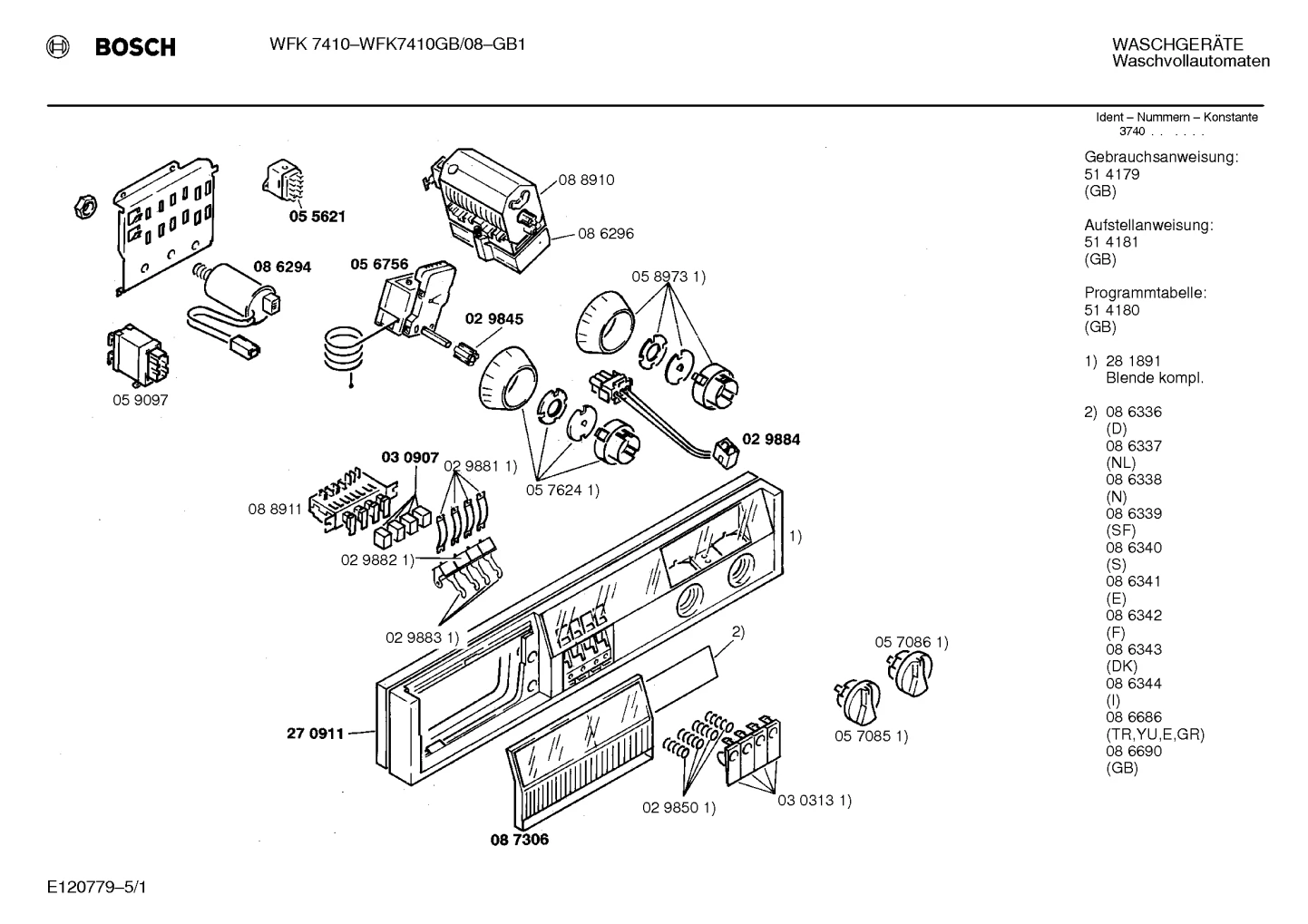

Flaps & Holders, Screws (0037-0153)
Parts in Flaps & Holders, Screws (0037-0153)
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0037 |  | Holder | - |
| 0038 |  | Holder | $6.27 Parts Dr |
| 0039 | | Holder | - |
| 0040 | | 00029856NLA Clip-earth | Discontinued |
| 0041 | | Holder | - |
| 0048 |  | Foot | - |
| 0051 |  | Electric lock | - |
| 0055 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0058 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0060 |  | Window | $63.71 ApplianceParts Pro |
| 0065 | | 00474870NLA Case-rear part | Discontinued |
| 0066 |  | Worktop | - |
| 0086 |  | 00029863NLA Spring guide | Discontinued |
| 0088 | | Holder | - |
| 0090 | | Screw | - |
| 0091 |  | Screw | - |
| 0092 |  | Screw | $4.45 ApplianceParts Pro |
| 0093 | | Spring guide | - |
| 0095 |  | Spring-tank | - |
| 0096 |  | Spring-tank | $27.78 RepairClinic |
| 0097 |  | Shaft seal | $54.68 PartSelect |
| 0098 | | Fixing kit | - |
| 0099 | | Screw | - |
| 0100 |  | Holder | - |
| 0101 |  | Screw | $9.95 ApplianceParts Pro |
| 0102 |  | Bearing set | - |
| 0106 |  | Shock absorber | $44.85 RepairClinic |
| 0107 |  | Pulley | $81.95 PartSelect |
| 0108 |  | Sealing | $43.34 ApplianceParts Pro |
| 0109 | | Lock-clamp | - |
| 0113 | | Front | - |
| 0114 | | Weight | - |
| 0115 | | Bearing cross | - |
| 0119 |  | Belt-drive | - |
| 0122 |  | Filter-water inlet | $17.16 Parts Dr |
| 0123 | | 00029867NLA Sealing | Discontinued |
| 0127 | | Sealing | - |
| 0130 |  | fastening ring | - |
| 0132 |  | Sealing | - |
| 0134 | | Hose connection inlet | - |
| 0138 |  | Ball-sump | - |
| 0139 | | 00056774NLA Sealing | Discontinued |
| 0143 |  | Holder | $14.40 ApplianceParts Pro |
| 0152 | | Latch | - |
| 0153 |  | Drain Hose | - |
