Model
Bosch WFK8010GB/14
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFK8010GB/14Washer
1 diagram47 parts
Parts Sections (1)
Diagram

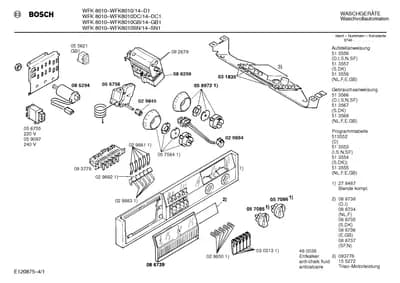

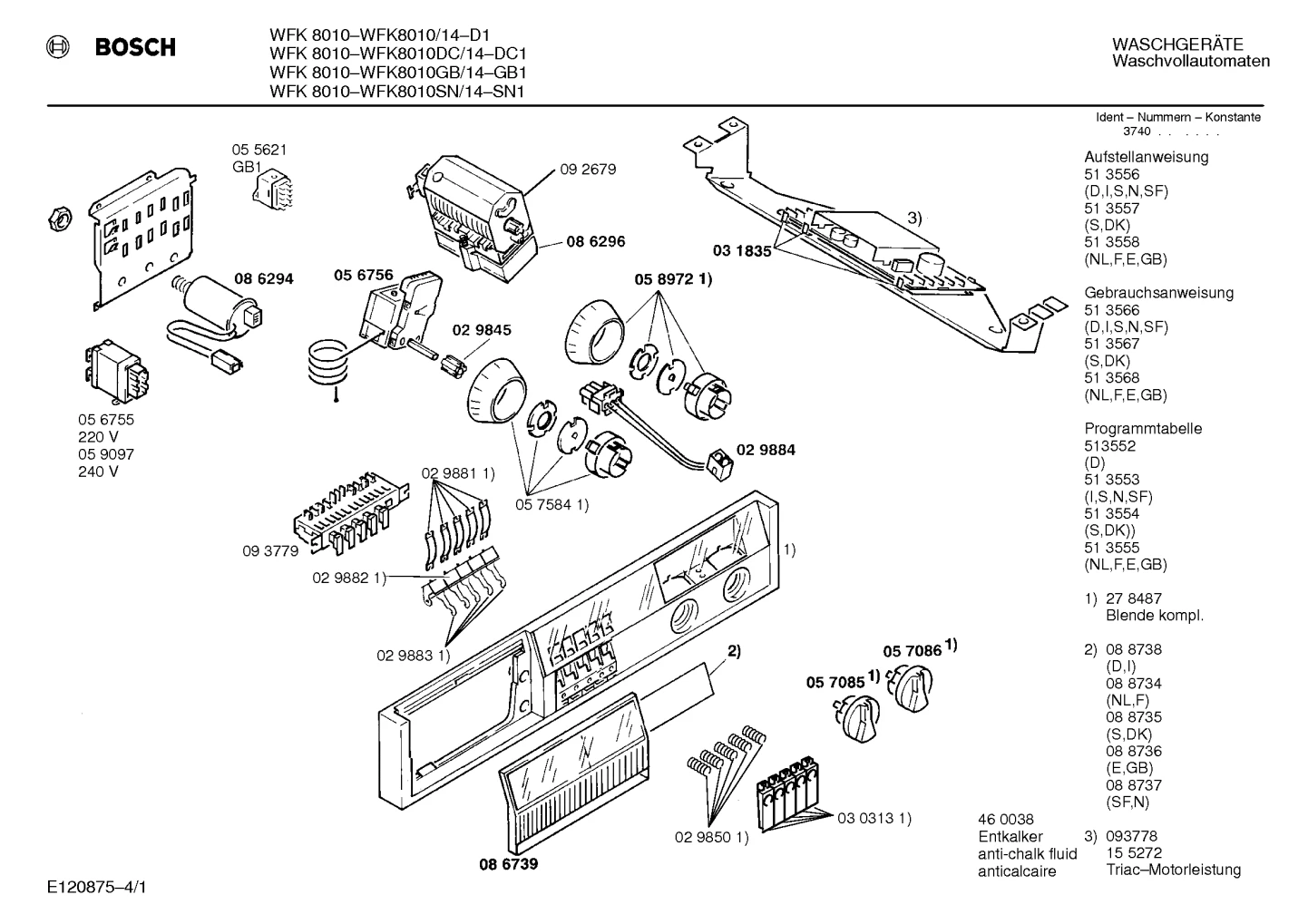

Flaps & Holders, Screws (0021-0436)
Parts in Flaps & Holders, Screws (0021-0436)
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0021 |  | Quick descaler | - |
| 0200 |  | Holder | $40.72 PartSelect |
| 0207 |  | Holder | - |
| 0208 | | 00029856NLA Clip-earth | Discontinued |
| 0209 | | Holder | - |
| 0211 | | Holder | - |
| 0215 |  | Holder | $6.27 Parts Dr |
| 0217 | | 00474870NLA Case-rear part | Discontinued |
| 0220 | | 00029856NLA Clip-earth | Discontinued |
| 0222 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0225 |  | Window | $63.71 ApplianceParts Pro |
| 0227 |  | Foot | - |
| 0232 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0233 |  | Electric lock | - |
| 0300 |  | Spring-tank | - |
| 0301 |  | 00029863NLA Spring guide | Discontinued |
| 0302 | | Screw | - |
| 0303 |  | Spring-tank | $27.78 RepairClinic |
| 0305 |  | Screw | $4.45 ApplianceParts Pro |
| 0306 |  | Pulley | $81.95 PartSelect |
| 0307 |  | Shaft seal | $54.68 PartSelect |
| 0309 | | Fixing kit | - |
| 0310 |  | Screw | - |
| 0311 | | Bearing cross | - |
| 0314 | | Spring guide | - |
| 0315 |  | Sealing | $43.34 ApplianceParts Pro |
| 0316 | | Front | - |
| 0318 |  | Bearing set | - |
| 0319 | | Weight | - |
| 0321 | | Lock-clamp | - |
| 0324 |  | Belt-drive | - |
| 0325 |  | Shock absorber | $44.85 RepairClinic |
| 0327 | | Holder | - |
| 0328 |  | Screw | $9.95 ApplianceParts Pro |
| 0329 | | Screw | - |
| 0332 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0400 |  | Drain Hose | - |
| 0402 |  | Filter-water inlet | $17.16 Parts Dr |
| 0407 | | Hose connection inlet | - |
| 0408 |  | Stud | - |
| 0412 | | 00029867NLA Sealing | Discontinued |
| 0414 | | 00056774NLA Sealing | Discontinued |
| 0416 |  | Ball-sump | - |
| 0419 |  | fastening ring | - |
| 0424 | | Latch | - |
| 0425 |  | Hose | $64.14 ApplianceParts Pro |
| 0427 | | Sealing | - |
| 0430 | | fastening ring | - |
| 0436 |  | Sealing | - |
