Model
Bosch WFL2090UC/11
Washer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFL2090UC/11Washer
4 diagrams101 parts
Parts Sections (4)
Diagram

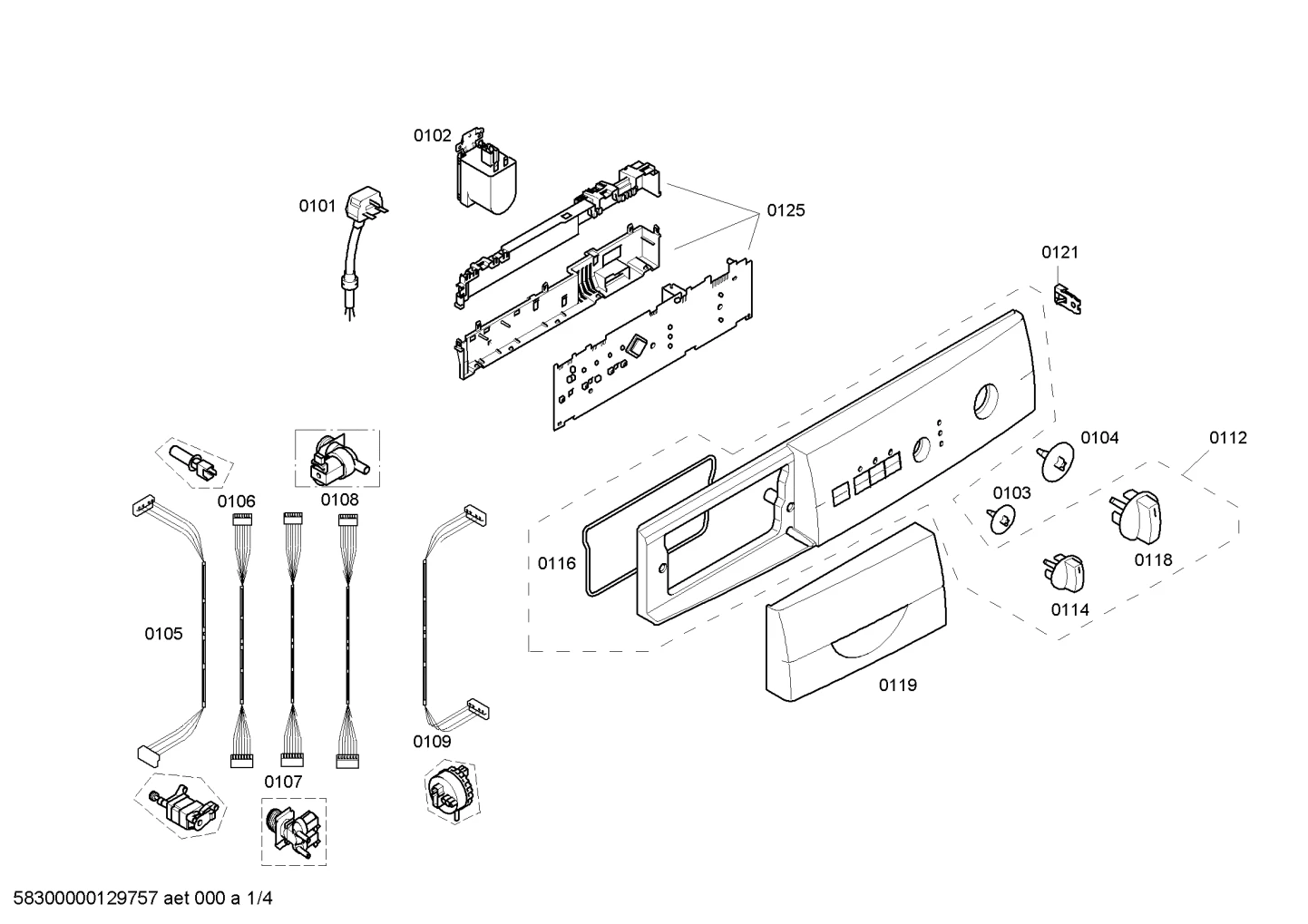

handles knobs , Door & Housing (0101-0125)
Parts in handles knobs , Door & Housing (0101-0125)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Power cord | - |
| 0102 |  | Capacitor-interference suppre. | - |
| 0103 |  | Coupling | - |
| 0104 |  | Coupling | - |
| 0105 |  | Cable harness | - |
| 0106 | | Cable harness | - |
| 0107 |  | Cable harness | - |
| 0108 |  | Cable harness | - |
| 0109 | | Cable harness | - |
| 0112 | | Panel-facia | - |
| 0114 |  | Knob-RPM | - |
| 0116 |  | Sealing | - |
| 0118 |  | Knob-programme | $46.54 ApplianceParts Pro |
| 0119 |  | Tray handle-dispenser | - |
| 0121 |  | Nut | - |
| 0125 | | Power module | - |
