Model
Bosch WFLI2440GB/01
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFLI2440GB/01Washer
1 diagram53 parts
Parts Sections (1)
Diagram

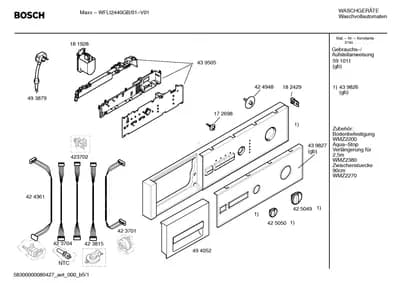

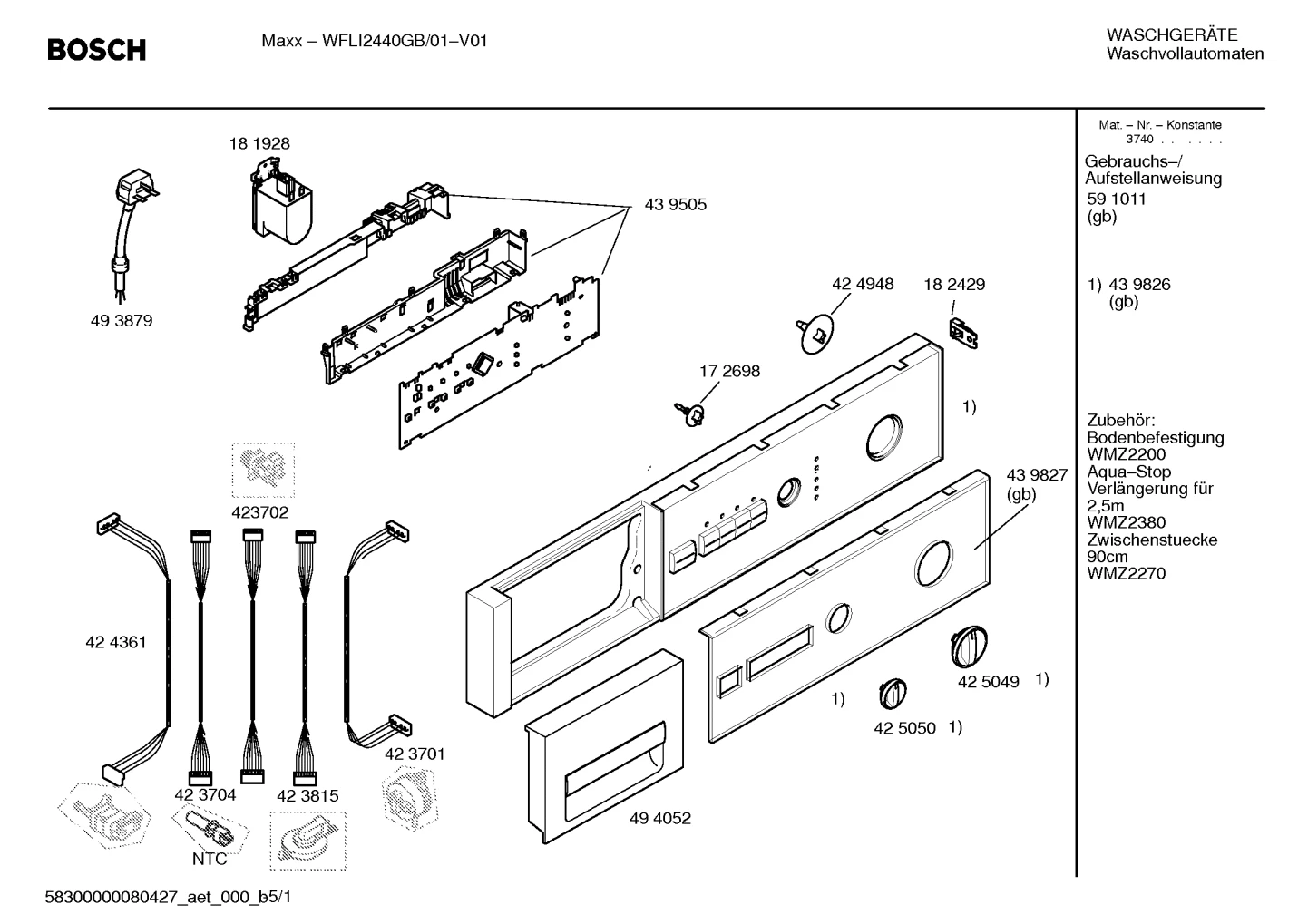

Flaps & Holders, Hoses (0106-0514)
Parts in Flaps & Holders, Hoses (0106-0514)
54 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0106 |  | Capacitor-interference suppre. | - |
| 0118 |  | Coupling | - |
| 0124 |  | Nut | - |
| 0204 |  | Cover | - |
| 0206 | | Holder | - |
| 0208 | | 00474870NLA Case-rear part | Discontinued |
| 0212 | | Rail | - |
| 0226 |  | Holder | $6.29 ApplianceParts Pro |
| 0229 | | Distance holder | - |
| 0234 |  | Hinge-window | - |
| 0236 |  | fastening ring | $12.98 Part Advantage |
| 0240 |  | Window | $54.77 Parts Dr |
| 0252 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0256 |  | Auxiliary tool | $5.40 ApplianceParts Pro |
| 0302 |  | Spring-tank | - |
| 0304 |  | Fixing kit | $32.79 ApplianceParts Pro |
| 0308 |  | Screw | $4.45 ApplianceParts Pro |
| 0310 |  | Pulley | - |
| 0312 |  | Drive Belt | $32.64 Part Advantage |
| 0315 |  | Bearing set | $111.18 Part Advantage |
| 0316 |  | Sealing | $49.59 Parts Dr |
| 0317 |  | Shaft seal | - |
| 0322 |  | Drum | - |
| 0324 |  | Tub | - |
| 0328 |  | Band | $37.97 Parts Dr |
| 0332 |  | fastening ring | $10.57 ApplianceParts Pro |
| 0334 |  | Holder | - |
| 0336 | – | 12045481 Heating element | - |
| 0338 | – | 10014435 Sensor-NTC | - |
| 0340 |  | Shock absorber | $160.57 Part Advantage |
| 0342 |  | Screw | - |
| 0344 |  | Fixture | $5.89 Parts Dr |
| 0346 |  | Holder | - |
| 0348 |  | Motor | $239.35 Parts Dr |
| 0350 |  | Carbon Brush | $54.65 Part Advantage |
| 0418 |  | Hose-fill | - |
| 0422 |  | Ball-sump | - |
| 0423 |  | Drain hose | - |
| 0424 |  | 00424981NLA Pressure chamber | Discontinued |
| 0428 |  | Hose-pressure chamber | - |
| 0430 |  | Regulator-water level | - |
| 0432 | | Duct | - |
| 0434 |  | fastening ring | - |
| 0436 |  | fastening ring | - |
| 0450 |  | Holder | $14.40 ApplianceParts Pro |
| 0451 |  | Container return | - |
| 0454 | | Hose-vent | - |
| 0456 | | Holder | - |
| 0500 |  | Sealing | $27.79 ApplianceParts Pro |
| 0501 |  | Filter-large | $30.71 PartSelect |
| 0503 |  | Filter-water inlet | $17.16 Parts Dr |
| 0506 |  | Float | $60.03 Part Advantage |
| 0508 | | Float | $60.03 Part Advantage |
| 0514 |  | Hose-valve/soap box | $35.95 ApplianceParts Pro |
