Model
Bosch WFM3030GB/04
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFM3030GB/04Washer
1 diagram54 parts
Parts Sections (1)
Diagram

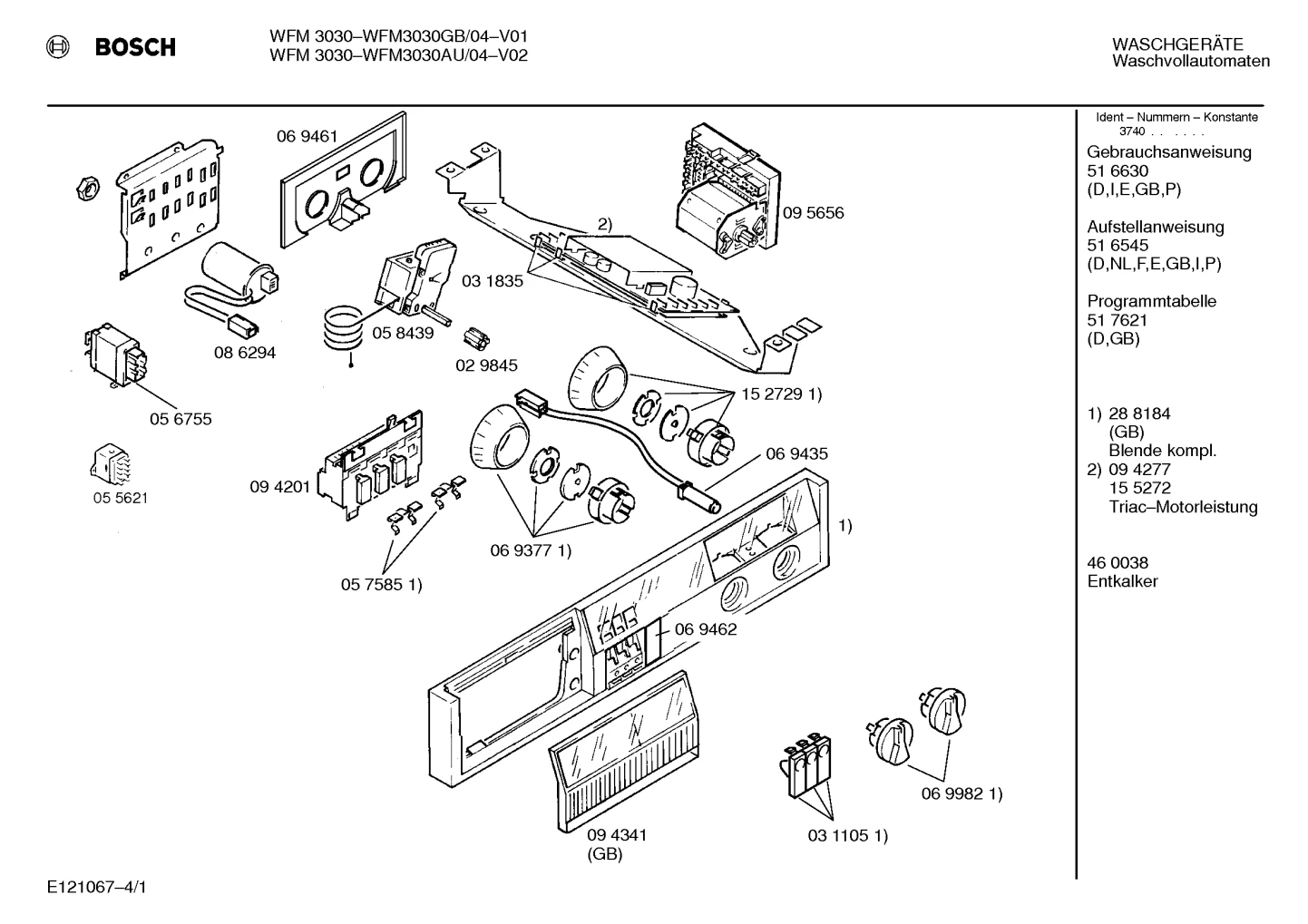

Flaps & Holders, Screws (0023-0459)
Parts in Flaps & Holders, Screws (0023-0459)
56 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0023 |  | Quick descaler | - |
| 0202 |  | Holder | $40.72 PartSelect |
| 0207 |  | Worktop | - |
| 0209 |  | Holder | - |
| 0210 | | 00029856NLA Clip-earth | Discontinued |
| 0211 | | Holder | - |
| 0212 | | Holder | - |
| 0215 | | 00474870NLA Case-rear part | Discontinued |
| 0218 | | 00029856NLA Clip-earth | Discontinued |
| 0219 |  | Holder | $6.27 Parts Dr |
| 0224 |  | Foot | - |
| 0225 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0230 |  | Electric lock | - |
| 0233 |  | Window | $63.71 ApplianceParts Pro |
| 0235 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0250 | | Nut | - |
| 0251 | | Clip | - |
| 0302 |  | Screw | $4.45 ApplianceParts Pro |
| 0303 |  | Pulley | $81.95 PartSelect |
| 0304 |  | Screw | - |
| 0305 | | Screw | - |
| 0306 |  | Shaft seal | - |
| 0307 | | Bearing cross | - |
| 0308 | | Spring guide | - |
| 0309 |  | Bearing set | - |
| 0313 |  | Belt-drive | - |
| 0314 |  | Screw | $9.95 ApplianceParts Pro |
| 0315 |  | Holder | - |
| 0318 |  | Shock absorber | $44.85 RepairClinic |
| 0319 | | Holder | - |
| 0322 | | Screw | - |
| 0324 | | Lock-clamp | - |
| 0325 | | Weight | - |
| 0326 | | Front | - |
| 0327 |  | Sealing | $43.34 ApplianceParts Pro |
| 0330 | | Fixing kit | - |
| 0332 |  | 00029863NLA Spring guide | Discontinued |
| 0333 |  | Spring-tank | $27.78 RepairClinic |
| 0334 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0335 |  | Spring-tank | - |
| 0404 | | Hose connection inlet | - |
| 0405 | | 00029867NLA Sealing | Discontinued |
| 0407 |  | Filter-water inlet | $17.16 Parts Dr |
| 0410 |  | Hose | $64.14 ApplianceParts Pro |
| 0411 | | 00056774NLA Sealing | Discontinued |
| 0412 |  | Ball-sump | - |
| 0413 |  | fastening ring | - |
| 0416 | | Latch | - |
| 0420 | | Sealing | - |
| 0421 | | fastening ring | - |
| 0424 | | 00069164NLA Sealing | Discontinued |
| 0425 |  | Hose-pressure chamber | $12.95 ApplianceParts Pro |
| 0433 |  | Holder | $14.40 ApplianceParts Pro |
| 0434 |  | Drain Hose | - |
| 0455 | | Sealing | - |
| 0459 | | 00095269NLA Sieve | Discontinued |
