Model
Bosch WFM3410GB/15
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFM3410GB/15Washer
1 diagram45 parts
Parts Sections (1)
Diagram

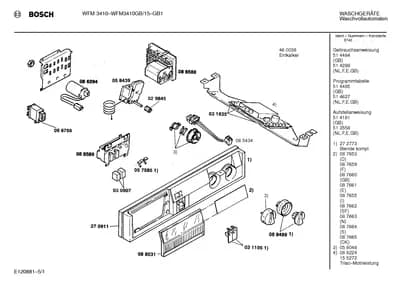

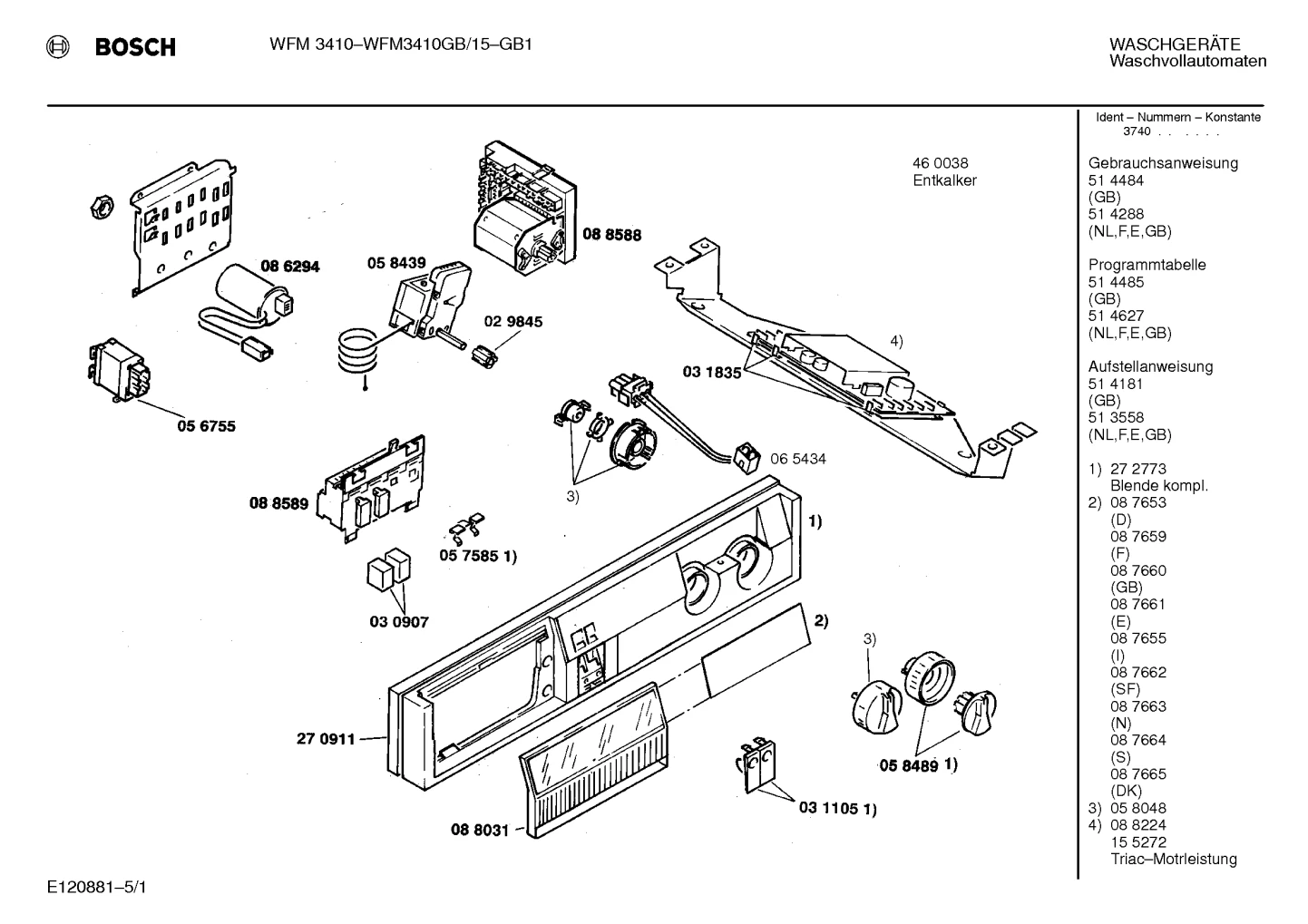

Flaps & Holders, Screws (0032-0200)
Parts in Flaps & Holders, Screws (0032-0200)
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0032 |  | Holder | $40.72 PartSelect |
| 0033 |  | Holder | - |
| 0034 |  | Holder | $6.27 Parts Dr |
| 0035 | | Holder | - |
| 0036 | | 00029856NLA Clip-earth | Discontinued |
| 0037 | | Holder | - |
| 0044 |  | Foot | - |
| 0050 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0053 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0057 | | 00474870NLA Case-rear part | Discontinued |
| 0058 |  | Worktop | - |
| 0077 |  | 00029863NLA Spring guide | Discontinued |
| 0079 | | Holder | - |
| 0081 | | Screw | - |
| 0082 |  | Screw | - |
| 0083 |  | Screw | $4.45 ApplianceParts Pro |
| 0084 | | Spring guide | - |
| 0086 |  | Spring-tank | - |
| 0087 |  | Spring-tank | $27.78 RepairClinic |
| 0088 | | Fixing kit | - |
| 0089 | | Screw | - |
| 0091 |  | Holder | - |
| 0092 |  | Screw | $9.95 ApplianceParts Pro |
| 0097 |  | Shock absorber | $44.85 RepairClinic |
| 0098 |  | Pulley | $81.95 PartSelect |
| 0099 |  | Sealing | $43.34 ApplianceParts Pro |
| 0100 | | Lock-clamp | - |
| 0104 | | Front | - |
| 0105 | | Weight | - |
| 0109 |  | Belt-drive | - |
| 0114 |  | Stud | - |
| 0115 |  | Filter-water inlet | $17.16 Parts Dr |
| 0116 | | 00029867NLA Sealing | Discontinued |
| 0119 | | Sealing | - |
| 0120 | | Sealing | - |
| 0123 |  | fastening ring | - |
| 0124 | | fastening ring | - |
| 0126 |  | Sealing | - |
| 0128 | | Hose connection inlet | - |
| 0131 |  | Ball-sump | - |
| 0132 | | 00056774NLA Sealing | Discontinued |
| 0134 |  | Holder | $14.40 ApplianceParts Pro |
| 0142 | | Latch | - |
| 0143 |  | Drain Hose | - |
| 0152 |  | Hose | $64.14 ApplianceParts Pro |
| 0199 |  | Electric lock | - |
| 0200 |  | Quick descaler | - |
