Model
Bosch WFM3420GB/03
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFM3420GB/03Washer
1 diagram36 parts
Parts Sections (1)
Diagram

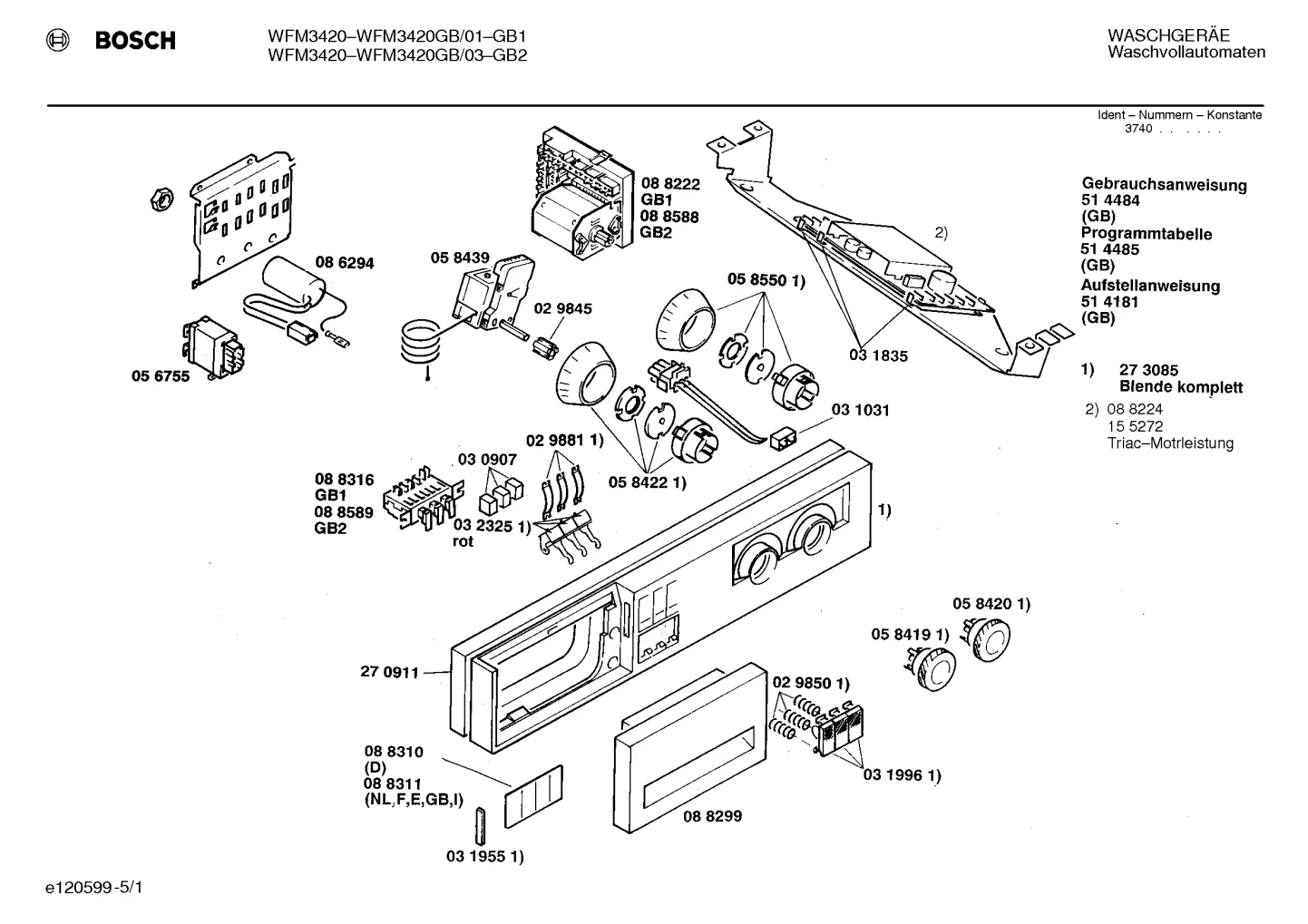

Flaps & Holders, Hoses (0031-0150)
Parts in Flaps & Holders, Hoses (0031-0150)
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0031 |  | Holder | - |
| 0032 |  | Holder | $6.27 Parts Dr |
| 0033 | | Holder | - |
| 0034 | | 00029856NLA Clip-earth | Discontinued |
| 0035 | | Holder | - |
| 0041 |  | Foot | - |
| 0047 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0049 |  | Window | $63.71 ApplianceParts Pro |
| 0052 | | 00474870NLA Case-rear part | Discontinued |
| 0053 |  | Worktop | - |
| 0084 |  | 00029863NLA Spring guide | Discontinued |
| 0086 | | Holder | - |
| 0089 | | Screw | - |
| 0090 |  | Screw | - |
| 0091 | | Spring guide | - |
| 0092 |  | Spring-tank | - |
| 0093 |  | Spring-tank | $27.78 RepairClinic |
| 0094 | | Fixing kit | - |
| 0095 | | Screw | - |
| 0099 |  | Shock absorber | $44.85 RepairClinic |
| 0100 |  | Pulley | $81.95 PartSelect |
| 0101 |  | Sealing | $43.34 ApplianceParts Pro |
| 0102 | | Lock-clamp | - |
| 0107 | | Front | - |
| 0108 | | Weight | - |
| 0115 | | 00029867NLA Sealing | Discontinued |
| 0118 | | Sealing | - |
| 0119 |  | fastening ring | - |
| 0121 | | Hose connection inlet | - |
| 0124 |  | Ball-sump | - |
| 0125 | | 00056774NLA Sealing | Discontinued |
| 0130 |  | Holder | $14.40 ApplianceParts Pro |
| 0138 | | Latch | - |
| 0139 |  | Drain Hose | - |
| 0148 |  | Hose | $64.14 ApplianceParts Pro |
| 0150 |  | Sealing | - |
