Model
Bosch WFM3710GB/15
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFM3710GB/15Washer
1 diagram50 parts
Parts Sections (1)
Diagram

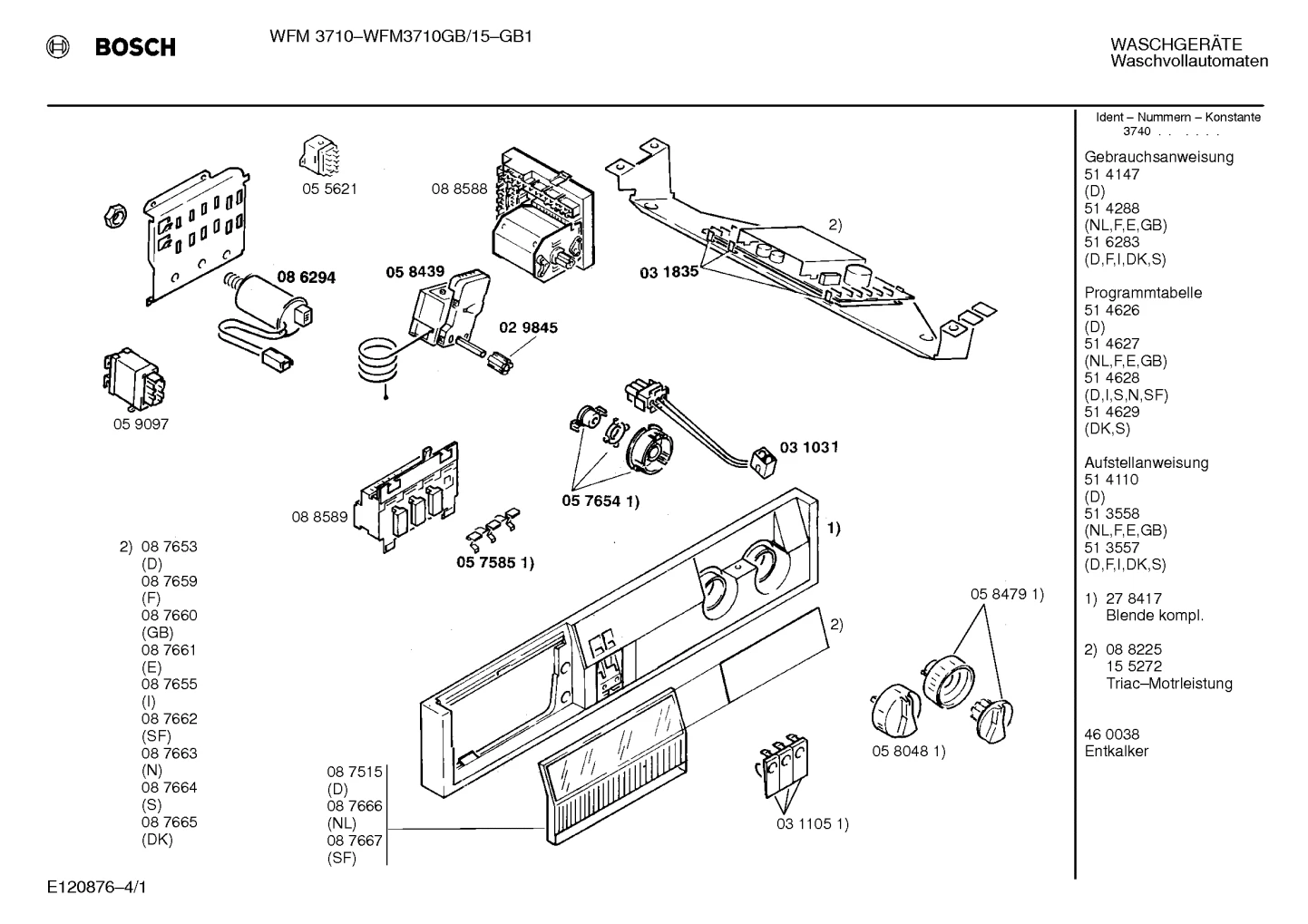

Flaps & Holders, Screws (0026-0199)
Parts in Flaps & Holders, Screws (0026-0199)
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0026 |  | Holder | $40.72 PartSelect |
| 0027 |  | Holder | - |
| 0028 |  | Holder | $6.27 Parts Dr |
| 0029 | | Holder | - |
| 0030 | | 00029856NLA Clip-earth | Discontinued |
| 0031 | | Holder | - |
| 0037 |  | Foot | - |
| 0041 |  | Electric lock | - |
| 0043 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0046 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0048 |  | Window | $63.71 ApplianceParts Pro |
| 0052 | | 00474870NLA Case-rear part | Discontinued |
| 0061 |  | 00029863NLA Spring guide | Discontinued |
| 0063 | | Holder | - |
| 0065 | | Screw | - |
| 0066 |  | Screw | - |
| 0067 |  | Screw | $4.45 ApplianceParts Pro |
| 0068 | | Spring guide | - |
| 0070 |  | Spring-tank | - |
| 0071 |  | Spring-tank | $27.78 RepairClinic |
| 0072 | | Fixing kit | - |
| 0073 | | Screw | - |
| 0074 |  | Shaft seal | - |
| 0075 |  | Holder | - |
| 0076 |  | Screw | $9.95 ApplianceParts Pro |
| 0078 |  | Bearing set | - |
| 0081 |  | Shock absorber | $44.85 RepairClinic |
| 0082 |  | Pulley | $81.95 PartSelect |
| 0083 |  | Sealing | $43.34 ApplianceParts Pro |
| 0084 | | Lock-clamp | - |
| 0089 | | Front | - |
| 0090 | | Weight | - |
| 0091 | | Bearing cross | - |
| 0093 |  | Belt-drive | - |
| 0097 |  | Stud | - |
| 0098 | | 00029867NLA Sealing | Discontinued |
| 0101 | | Sealing | - |
| 0104 |  | fastening ring | - |
| 0106 |  | Sealing | - |
| 0108 | | Hose connection inlet | - |
| 0111 |  | Ball-sump | - |
| 0112 | | 00056774NLA Sealing | Discontinued |
| 0114 |  | Holder | $14.40 ApplianceParts Pro |
| 0122 | | Latch | - |
| 0123 |  | Drain Hose | - |
| 0131 |  | Hose | $64.14 ApplianceParts Pro |
| 0135 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0137 |  | Branching piece | - |
| 0140 |  | Filter-water inlet | $17.16 Parts Dr |
| 0199 |  | Quick descaler | - |
