Model
Bosch WFMC6400UC/02
Washer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFMC6400UC/02Washer
4 diagrams126 parts
Parts Sections (4)
Diagram
Hoses, Flaps & Holders (0401-0436)
Parts in Hoses, Flaps & Holders (0401-0436)
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0401 |  | Holder | - |
| 0402 |  | Outlet hose | - |
| 0403 |  | Installation set | $40.80 Parts Dr |

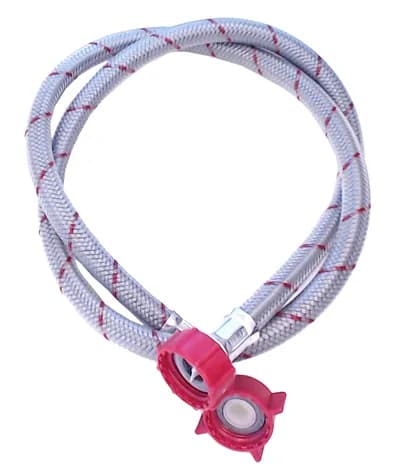

| 0404 |  | Hose-inlet | - |
| 0405 |  | Hose-inlet | - |
| 0406 |  | Dual Inlet Valve | $47.30 Part Advantage |
| 0407 |  | Inlet Valve | $31.39 Part Advantage |
| 0408 | | 00600338NLA Hose-inlet | Discontinued |
| 0409 |  | Flow-through sensor | $55.29 PartSelect |
| 0410 | | Hose-inlet | - |
| 0411 |  | Connection piece | - |
| 0412 | | Hose-inlet | - |
| 0413 |  | Hose clamp | $4.74 ApplianceParts Pro |
| 0414 |  | fastening ring | - |
| 0415 |  | Hose-inlet | $28.74 Parts Dr |
| 0416 |  | Hose clamp | - |
| 0417 |  | 00640612NLA Dispenser tray | Discontinued |
| 0418 | | Hose-vent | - |
| 0419 |  | 00436479NLA Drain gutter | Discontinued |
| 0420 | | Hose clamp | - |
| 0421 |  | Analogue pressure sensor | - |

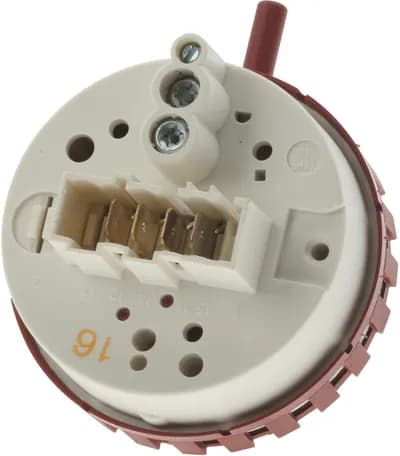

| 0422 |  | Regulator-water level | - |
| 0423 |  | Sensor | - |
| 0424 |  | Screw | $24.27 Part Advantage |
| 0425 | | Hose-pressure chamber | - |
| 0426 | | Hose-pressure chamber | - |
| 0427 | | Branching piece | - |
| 0428 | | Hose-pressure chamber | - |
| 0429 |  | 00424981NLA Pressure chamber | Discontinued |
| 0430 |  | Hose clamp | - |
| 0431 |  | Sump | - |
| 0432 | | Sump | - |
| 0433 |  | Hose clamp | $6.40 PartSelect |
| 0434 |  | Hose clamp | - |
| 0435 |  | 00436440NLA Pump-drain | Discontinued |
| 0436 | | Cable harness | - |
