Model
Bosch WFMC6401UC/02
Washer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFMC6401UC/02Washer
4 diagrams126 parts
Parts Sections (4)
Diagram

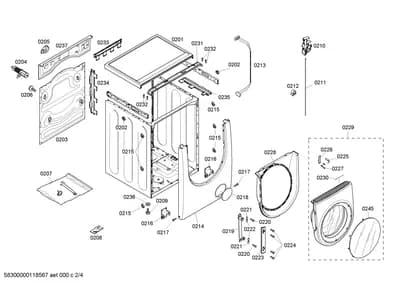

Door & Housing, Screws (0201-0245)
Parts in Door & Housing, Screws (0201-0245)
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0201 |  | Cover | - |
| 0202 | | Plug | - |
| 0203 | | 00474596NLA Case-rear part | Discontinued |
| 0204 |  | Shipping Bolt With Spacer | $10.75 Parts Dr |
| 0205 |  | Lid | $7.68 PartSelect |
| 0206 |  | Screw | $24.27 Part Advantage |
| 0207 |  | Installation set | $40.80 Parts Dr |
| 0208 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0209 |  | Washer Foot | $9.21 Part Advantage |
| 0210 |  | 00497255NLA Lock-mechanical | Discontinued |
| 0211 | | Rod | $10.90 ApplianceParts Pro |
| 0212 | | Lock-clamp | - |
| 0213 | | 00421564NLA Cable harness | Discontinued |
| 0214 | | Front panel | - |
| 0215 |  | Plug | $3.34 ApplianceParts Pro |
| 0216 |  | Bracket | $2.59 RepairClinic |
| 0217 |  | Screw | $5.95 ApplianceParts Pro |
| 0218 |  | 00491676NLA Cover | Discontinued |
| 0219 |  | Door Hinge Kit | $30.13 Part Advantage |
| 0220 |  | Screw | $2.95 ApplianceParts Pro |
| 0221 |  | 00422204NLA Sleeve | Discontinued |
| 0222 |  | Sleeve | $7.68 PartSelect |
| 0223 |  | Cover | $27.44 Parts Dr |
| 0224 |  | Screw | $1.15 RepairClinic |
| 0225 | | Hook | - |
| 0226 |  | Hook | $32.23 ApplianceParts Pro |
| 0227 |  | Screw | $2.84 ApplianceParts Pro |
| 0228 |  | Door Gasket Holder | $129.85 Parts Dr |
| 0229 | | Door | - |
| 0230 |  | Band | - |
| 0231 | | Rail | - |
| 0232 | | Screw | $24.27 Part Advantage |
| 0233 | | Tray | - |
| 0234 | | Tray | - |
| 0235 | | Tray | - |
| 0236 |  | Washer | - |
| 0237 | | Panel frame | $44.95 ApplianceParts Pro |
| 0245 |  | 00680865NLA Window | Discontinued |
