Model
Bosch WFMC8400UC/13
Washer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFMC8400UC/13Washer
4 diagrams120 parts
Parts Sections (4)
Diagram

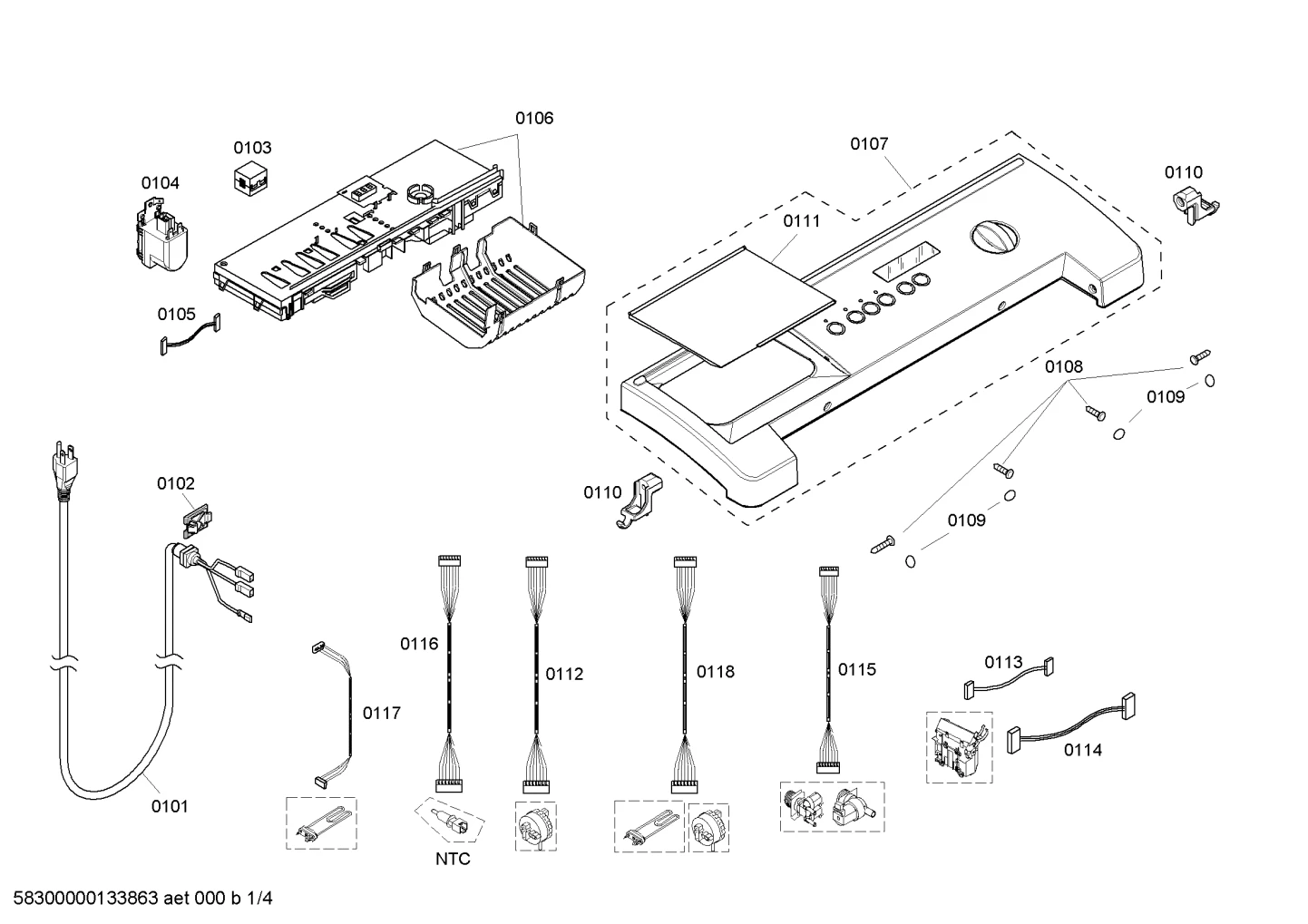

Door & Housing, Screws (0101-0118)
Parts in Door & Housing, Screws (0101-0118)
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00442362NLA Power cord | Discontinued |
| 0102 | | 00422156NLA Stress-relief | Discontinued |
| 0103 |  | Clamping piece | $24.27 Part Advantage |
| 0104 |  | Capacitor-interference | $58.42 PartSelect |
| 0105 | | Cable harness | - |
| 0106 | | Control module | - |
| 0107 | | Panel-facia | - |
| 0108 |  | Screw | - |
| 0109 |  | Cover | $12.74 ApplianceParts Pro |
| 0110 |  | Bracket | - |
| 0111 | | Flap | - |
| 0112 | | Cable harness | - |
| 0113 | | Cable harness | - |
| 0114 |  | Cable harness | - |
| 0115 | | Cable harness | - |
| 0116 | | Cable harness | - |
| 0117 | | Cable harness | - |
| 0118 | | Cable harness | - |
