Model
Bosch WFO2460GB/01
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFO2460GB/01
1 diagram80 parts
Parts Sections (1)
Diagram

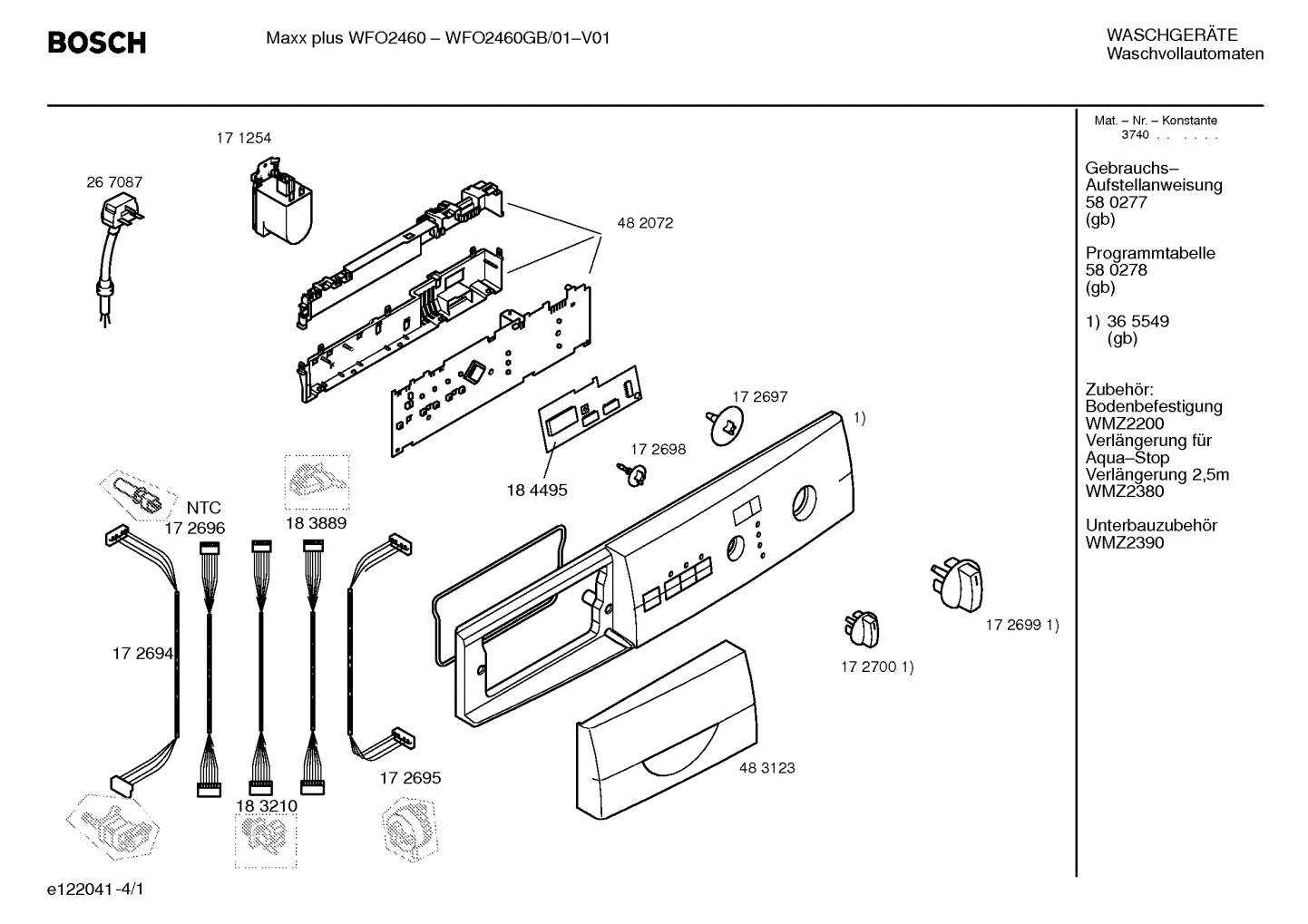

Hoses, handles knobs (0106-0456)
Parts in Hoses, handles knobs (0106-0456)
80 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0106 |  | Capacitor-interference suppre. | - |
| 0110 |  | Control module | - |
| 0114 |  | Coupling | - |
| 0116 |  | Knob-programme | $46.54 ApplianceParts Pro |
| 0118 |  | Coupling | - |
| 0120 |  | Knob-RPM | - |
| 0202 |  | Transit bolt | - |
| 0204 |  | Lid | $7.68 PartSelect |
| 0206 |  | Holder | - |
| 0208 |  | Case-rear part | - |
| 0212 |  | Foot | $14.36 Parts Dr |
| 0216 |  | Holder | - |
| 0226 |  | Holder | $6.29 ApplianceParts Pro |
| 0228 |  | Holder | $6.27 Parts Dr |
| 0230 |  | Front panel | - |
| 0232 |  | Bushing | $10.35 RepairClinic |
| 0234 |  | Hinge-window | $35.64 Parts Dr |
| 0236 |  | fastening ring | $12.98 Part Advantage |
| 0238 |  | Ring | - |
| 0240 |  | Window | $54.77 Parts Dr |
| 0242 |  | Frame-window | - |
| 0244 |  | Handle | $116.96 ApplianceParts Pro |
| 0246 |  | Axis | $12.91 Parts Dr |
| 0247 |  | Latch | $47.71 Part Advantage |
| 0248 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0250 |  | Auxiliary tool | $5.40 ApplianceParts Pro |
| 0252 | | Rail | - |
| 0254 | | Rail | - |
| 0300 |  | Support | - |
| 0302 |  | Spring-tank | $14.09 PartSelect |
| 0304 |  | Fixing kit | - |
| 0306 |  | Weight | - |
| 0308 |  | Screw | $4.45 ApplianceParts Pro |
| 0310 |  | Pulley | - |
| 0312 |  | Drive Belt | $32.64 Part Advantage |
| 0314 |  | Tub | - |
| 0315 |  | Bearing set | $111.18 Part Advantage |
| 0316 |  | Sealing | $34.80 ApplianceParts Pro |
| 0317 |  | Shaft seal | - |
| 0322 |  | Drum | - |
| 0324 |  | Tub | - |
| 0326 |  | Weight | - |
| 0328 |  | Band | $37.97 Parts Dr |
| 0330 |  | Boot Gasket | $65.83 Part Advantage |
| 0332 |  | fastening ring | $10.57 ApplianceParts Pro |
| 0334 |  | Holder | - |
| 0336 | – | 12045481 Heating element | - |
| 0338 | – | 10014435 Sensor-NTC | - |
| 0340 |  | Shock absorber | $160.57 Part Advantage |
| 0342 |  | Screw | - |
| 0344 |  | Fixture | $5.89 Parts Dr |
| 0346 |  | Holder | - |
| 0348 |  | Motor | $239.35 Parts Dr |
| 0350 |  | Carbon Brush | $54.65 Part Advantage |
| 0400 |  | Hose-inlet | - |
| 0402 |  | Filter-water inlet | $17.16 Parts Dr |
| 0406 |  | Valve-magnet | $26.41 ApplianceParts Pro |
| 0407 |  | Valve Magnet | $83.93 Parts Dr |
| 0408 |  | Hose-valve/soap box | $35.95 ApplianceParts Pro |
| 0409 |  | Connection piece | - |
| 0410 |  | Hose-valve/soap box | - |
| 0416 |  | Dispenser tray | - |
| 0418 |  | Hose-fill | - |
| 0419 |  | Siphon-device | $10.57 ApplianceParts Pro |
| 0420 |  | Eco-hose-sump | - |
| 0421 |  | Drain hose | - |
| 0422 |  | Ball-sump | - |
| 0424 |  | 00424981NLA Pressure chamber | Discontinued |
| 0428 |  | Hose-pressure chamber | - |
| 0430 |  | Regulator-water level | - |
| 0434 |  | Hose | $18.84 Part Advantage |
| 0448 | | Filter-fluff | $20.93 Part Advantage |
| 0448 |  | Fluff Filter | - |
| 0450 |  | Holder | $14.40 ApplianceParts Pro |
| 0450 |  | Container return | - |
| 0451 |  | fastening ring | - |
| 0452 |  | fastening ring | - |
| 0452 |  | Drain Hose | - |
| 0454 | | Hose-vent | - |
| 0456 |  | Branching piece | - |
