Model
Bosch WFR2450UC/01
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFR2450UC/01Washer
1 diagram106 parts
Parts Sections (1)
Diagram
Hoses, Flaps & Holders (0100-0474)
Parts in Hoses, Flaps & Holders (0100-0474)
107 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0100 |  | Operating/installation instructions | - |
| 0102 | | Program table | - |
| 0104 |  | Power cord | - |
| 0106 |  | Capacitor-interference suppre. | - |
| 0108 | | Cable harness | - |
| 0108 | | 00188875NLA Cable harness | Discontinued |
| 0108 | | Cable harness | - |
| 0108 | | Cable harness | - |
| 0108 | | Cable harness | - |
| 0108 | | 00188879NLA Cable harness | Discontinued |
| 0108 | | Cable harness | - |
| 0110 | | Control module | - |

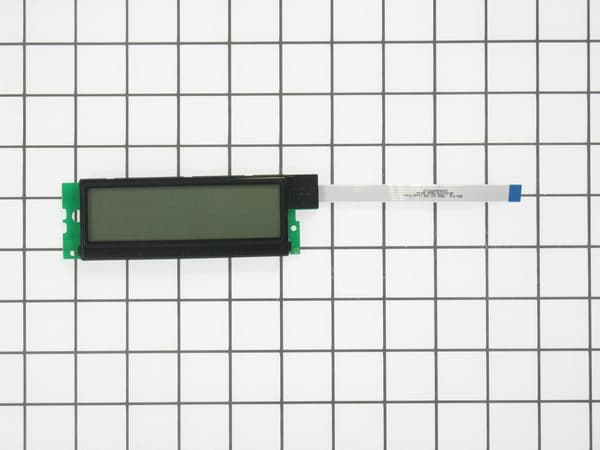

| 0111 |  | Display module | $260.56 RepairClinic |
| 0114 | | Coupling | - |
| 0116 |  | Knob-programme | $11.49 RepairClinic |
| 0124 |  | Nut | - |
| 0200 |  | Transit bolt | $19.20 PartSelect |
| 0202 | | Transit bolt | - |
| 0204 | | Cover | - |
| 0206 | | Holder | - |
| 0208 | | 00474870NLA Case-rear part | Discontinued |
| 0210 | | Housing | - |
| 0211 | | Rail | - |
| 0213 |  | Washer Foot | $9.21 Part Advantage |
| 0214 | | Nut | - |
| 0216 |  | Holder | $6.41 PartSelect |
| 0220 |  | Panel-base | $36.54 ApplianceParts Pro |
| 0222 | | Panel-base | $36.54 ApplianceParts Pro |
| 0224 |  | Electric lock | $103.57 Parts Dr |
| 0225 |  | Band | $6.41 PartSelect |
| 0226 |  | Holder | $6.29 ApplianceParts Pro |
| 0228 |  | Holder | $6.27 Parts Dr |
| 0230 |  | Front panel | - |
| 0232 |  | Bushing | $10.35 RepairClinic |
| 0234 |  | Hinge-window | $35.64 Parts Dr |
| 0236 |  | fastening ring | $12.98 Part Advantage |
| 0238 | | Frame-window | - |
| 0240 |  | Window | $54.77 Parts Dr |
| 0242 |  | Frame-window | $39.74 Parts Dr |
| 0244 |  | Handle | $52.78 RepairClinic |
| 0246 |  | Axis | $12.91 Parts Dr |
| 0247 |  | Latch | $47.71 Part Advantage |
| 0252 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0254 | | Insulating plate | - |
| 0256 |  | Auxiliary tool | $5.40 ApplianceParts Pro |
| 0258 |  | Worktop | - |
| 0302 |  | Spring-tank | - |
| 0304 |  | Fixing kit | $32.79 ApplianceParts Pro |
| 0306 |  | Weight | - |
| 0308 |  | Screw | $4.45 ApplianceParts Pro |
| 0310 |  | Pulley | - |
| 0312 |  | Drive Belt | $32.64 Part Advantage |
| 0314 |  | Tub at rear | - |
| 0315 |  | Bearing set | $151.96 PartSelect |
| 0317 |  | Shaft seal | - |
| 0322 | | Drum | - |
| 0324 | | Tub | - |
| 0326 |  | Weight | - |
| 0328 |  | Band | $37.97 Parts Dr |
| 0330 |  | Boot Gasket | $65.83 Part Advantage |
| 0332 |  | fastening ring | $10.57 ApplianceParts Pro |
| 0334 |  | Holder | - |
| 0336 | – | 12045481 Heating element | - |
| 0338 | – | 10014435 Sensor-NTC | - |
| 0340 |  | Shock absorber | $160.57 Part Advantage |
| 0342 |  | Screw | - |
| 0344 |  | Fixture | $5.89 Parts Dr |
| 0346 |  | Holder | - |
| 0348 |  | Motor | $389.36 Parts Dr |
| 0349 |  | Carbon Brush | $54.65 Part Advantage |
| 0400 |  | Dispenser tray-upper part | - |
| 0402 |  | Dispenser tray-lower part | - |
| 0404 |  | Dispenser tray | - |
| 0405 |  | Siphon-device | $10.57 ApplianceParts Pro |
| 0406 |  | Hose-fill | - |
| 0408 |  | Eco-hose-sump | - |
| 0412 |  | Ball-sump | - |
| 0414 |  | Drain hose | - |
| 0416 |  | 00424981NLA Pressure chamber | Discontinued |
| 0418 |  | Hose-pressure chamber | - |
| 0419 | | Branching piece | - |

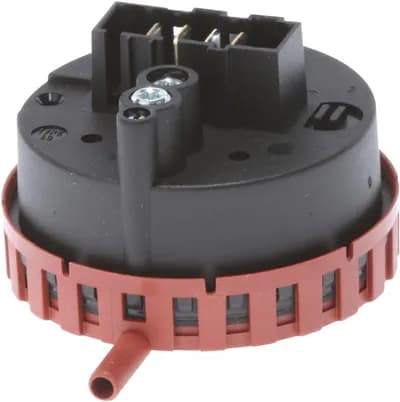

| 0420 |  | Regulator-water level | - |
| 0420 | | Adapter | - |
| 0421 |  | Analogue pressure sensor | - |
| 0422 | | Holder | - |
| 0423 |  | Drain Hose | - |
| 0424 |  | Pump-drain | $113.79 Parts Dr |
| 0428 | | Filter-fluff | $20.93 Part Advantage |
| 0442 |  | Holder | $14.40 ApplianceParts Pro |
| 0444 |  | fastening ring | - |
| 0444 |  | fastening ring | - |
| 0446 | | Hose-vent | - |
| 0448 |  | Container return | - |
| 0448 |  | Hose | $18.84 Part Advantage |
| 0450 | | Rinsing sensor | - |
| 0452 |  | Hose-valve/soap box | - |
| 0454 | | 00182230NLA Hose | Discontinued |
| 0456 |  | Hose-inlet | - |
| 0456 | | Hose-inlet | - |
| 0458 |  | Filter-water inlet | $17.16 Parts Dr |
| 0460 | | Sieve | - |
| 0462 |  | Valve-magnet | $26.41 ApplianceParts Pro |
| 0464 |  | Hose-valve/soap box | $35.95 ApplianceParts Pro |
| 0466 |  | Flow-through sensor | $55.29 PartSelect |
| 0470 |  | Valve Magnet | $83.93 Parts Dr |
| 0472 |  | Connection piece | - |
| 0474 |  | Branching piece | - |
