Model
Bosch WFS4010GB/01
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFS4010GB/01
1 diagram49 parts
Parts Sections (1)
Diagram

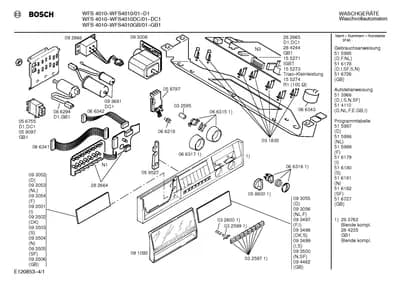

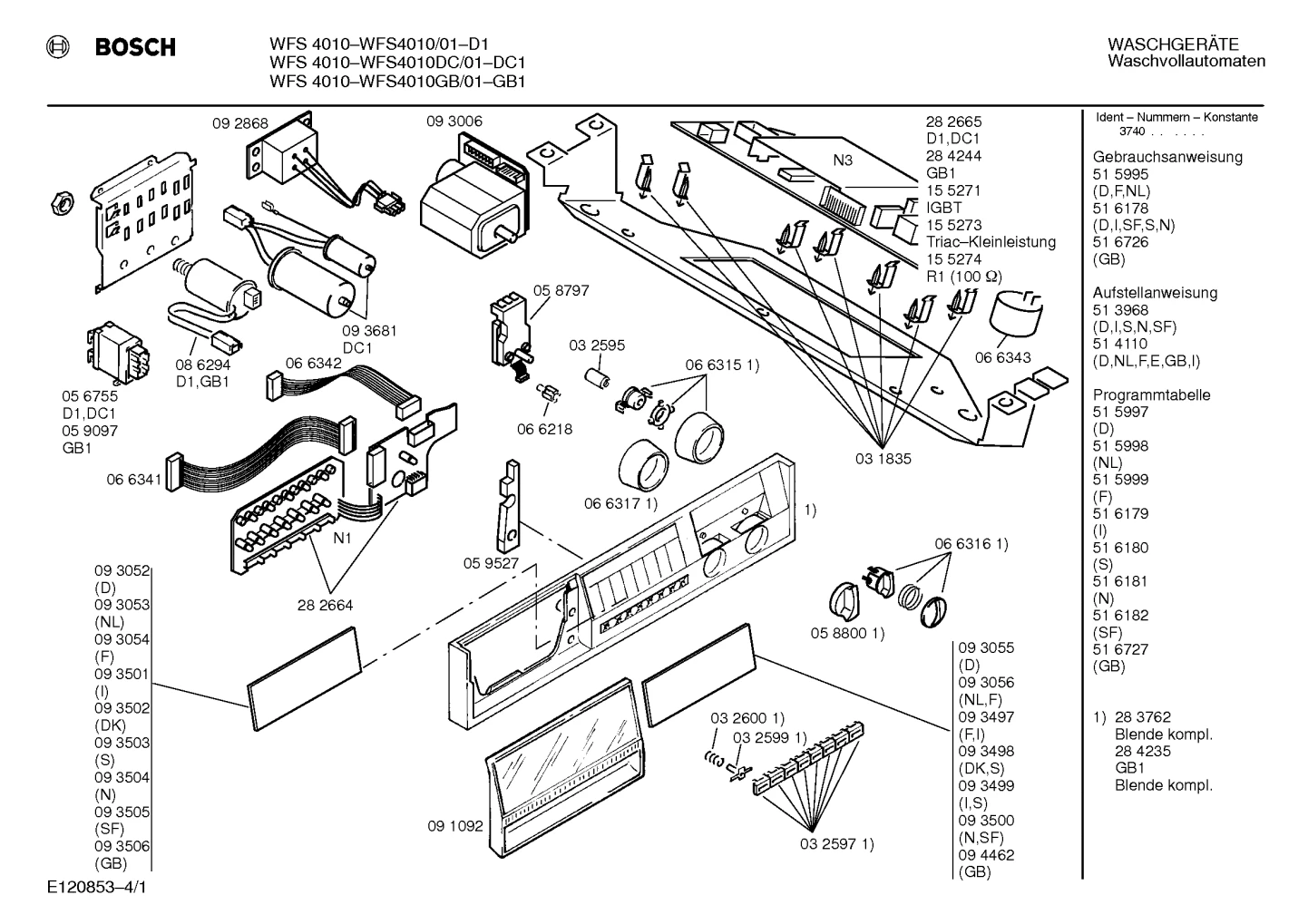

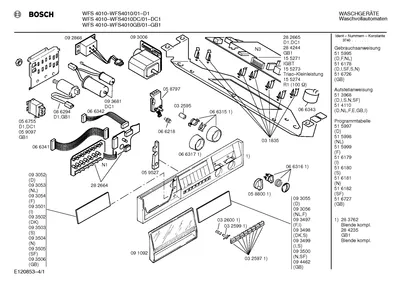

Flaps & Holders, Screws (0102-0344)
Parts in Flaps & Holders, Screws (0102-0344)
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | Holder | $30.97 ApplianceParts Pro |
| 0106 |  | Holder | - |
| 0108 | | 00474870NLA Case-rear part | Discontinued |
| 0113 |  | Foot | - |
| 0114 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0116 | | 00029856NLA Clip-earth | Discontinued |
| 0117 | | 00029856NLA Clip-earth | Discontinued |
| 0121 | | Holder | - |
| 0122 | | Holder | - |
| 0123 |  | Holder | $6.27 Parts Dr |
| 0132 |  | Worktop | - |
| 0134 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0136 |  | Window | $63.71 ApplianceParts Pro |
| 0140 | | Worktop | - |
| 0202 |  | Screw | $4.45 ApplianceParts Pro |
| 0203 |  | Pulley | $81.95 PartSelect |
| 0204 |  | Screw | - |
| 0205 |  | Bearing set | - |
| 0206 | | Bearing cross | - |
| 0207 | | Screw | - |
| 0208 |  | Shaft seal | $54.68 PartSelect |
| 0211 |  | Belt-drive | - |
| 0212 |  | Screw | $9.95 ApplianceParts Pro |
| 0213 |  | Holder | - |
| 0219 | | Spring guide | - |
| 0220 |  | Spring-tank | - |
| 0221 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0222 |  | Spring-tank | $27.78 RepairClinic |
| 0223 |  | 00029863NLA Spring guide | Discontinued |
| 0225 | | Fixing kit | - |
| 0229 |  | Shock absorber | $44.85 RepairClinic |
| 0230 | | Holder | - |
| 0233 |  | Sealing | $43.34 ApplianceParts Pro |
| 0234 | | Front | - |
| 0235 | | Weight | - |
| 0237 | | Lock-clamp | - |
| 0239 | | Screw | - |
| 0301 | | Hose connection inlet | - |
| 0304 | | 00029867NLA Sealing | Discontinued |
| 0305 |  | Filter-water inlet | $17.16 Parts Dr |
| 0308 |  | Hose | $64.14 ApplianceParts Pro |
| 0310 |  | Sealing | - |
| 0319 | | 00056774NLA Sealing | Discontinued |
| 0320 |  | Ball-sump | - |
| 0321 |  | fastening ring | - |
| 0326 | | Latch | - |
| 0330 | | Sealing | - |
| 0332 | | fastening ring | - |
| 0334 |  | Holder | $14.40 ApplianceParts Pro |
| 0335 |  | Drain Hose | - |
| 0336 |  | Stud | - |
| 0344 |  | Branching piece | - |
