ModelBosch
WFT7420GB/08
1 diagram43 parts
Parts Sections (1)

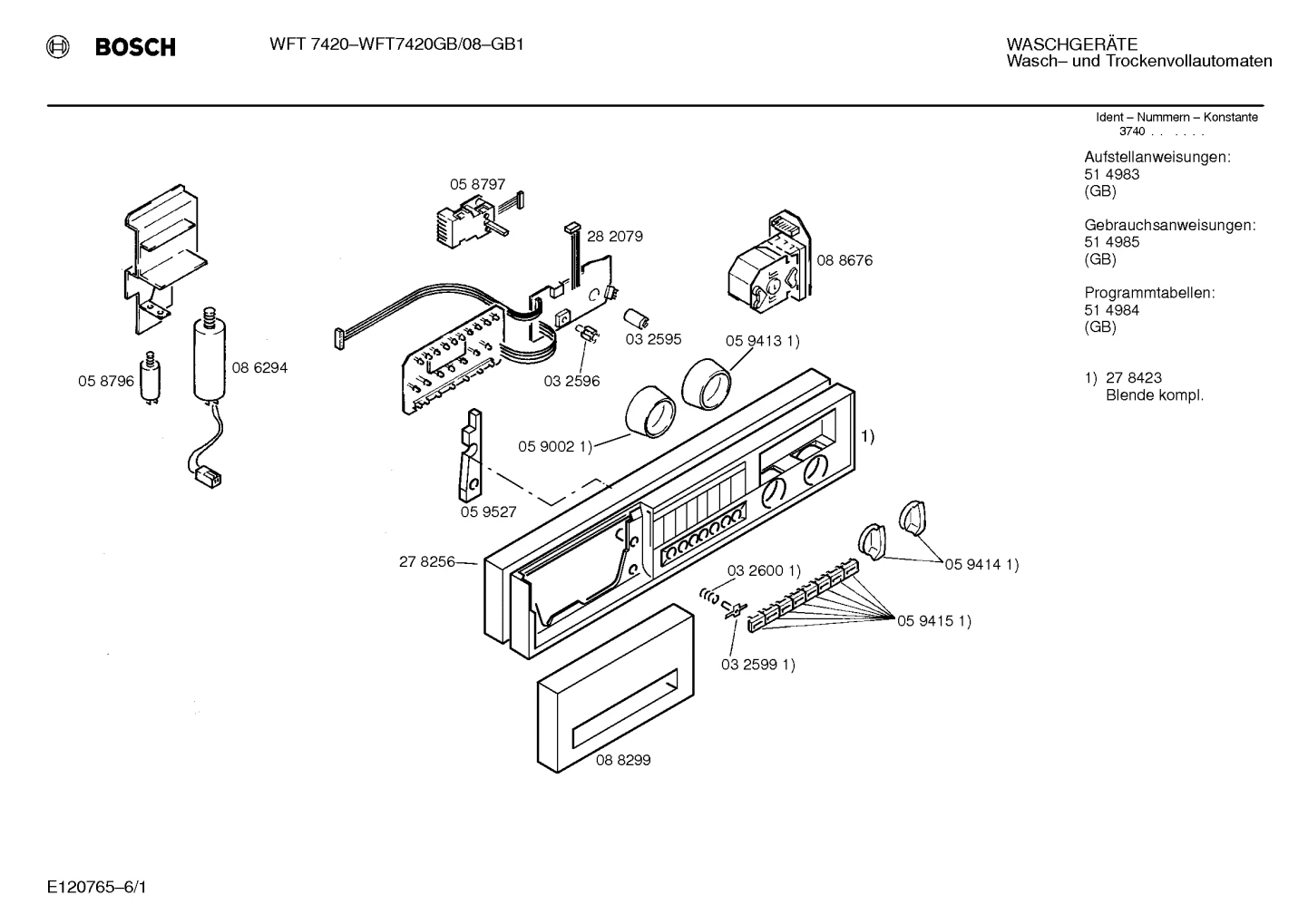

Diagram
Flaps & Holders, Screws (0024-0177)
Parts in Flaps & Holders, Screws (0024-0177)
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0024 |  | Holder | - |
| 0025 |  | Holder | $6.27 Parts Dr |
| 0026 | | Holder | - |
| 0027 | | 00029856NLA Clip-earth | Discontinued |
| 0028 | | Holder | - |
| 0036 |  | Foot | - |
| 0045 |  | Kit to Attach Washer to Floor/Pedestal | $60.98 Parts Dr |
| 0049 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0052 | | 00474870NLA Case-rear part | Discontinued |
| 0053 |  | Worktop | - |
| 0098 |  | 00029863NLA Spring guide | Discontinued |
| 0100 | | Holder | - |
| 0101 | | Screw | - |
| 0103 |  | Screw | - |
| 0105 |  | Screw | $4.45 ApplianceParts Pro |
| 0106 | | Spring guide | - |
| 0108 |  | Spring-tank | - |
| 0109 |  | Spring-tank | $27.78 RepairClinic |
| 0110 | | Fixing kit | - |
| 0111 | | Screw | - |
| 0112 |  | Holder | - |
| 0113 |  | Screw | $9.95 ApplianceParts Pro |
| 0114 |  | Bearing set | - |
| 0120 |  | Shock absorber | $44.85 RepairClinic |
| 0121 |  | Pulley | $81.95 PartSelect |
| 0122 |  | Sealing | $43.34 ApplianceParts Pro |
| 0123 | | Lock-clamp | - |
| 0126 | | Front | - |
| 0127 | | Weight | - |
| 0128 | | Bearing cross | - |
| 0133 |  | Belt-drive | - |
| 0137 |  | Stud | - |
| 0138 |  | Filter-water inlet | $17.16 Parts Dr |
| 0139 | | 00029867NLA Sealing | Discontinued |
| 0144 |  | fastening ring | - |
| 0145 | | fastening ring | - |
| 0147 |  | Sealing | - |
| 0149 | | Hose connection inlet | - |
| 0152 |  | Ball-sump | - |
| 0153 | | 00056774NLA Sealing | Discontinued |
| 0157 |  | Holder | $14.40 ApplianceParts Pro |
| 0166 | | Latch | - |
| 0167 |  | Drain Hose | - |
| 0177 |  | Hose | $64.14 ApplianceParts Pro |
