Model
Bosch WFT8030GB/01
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFT8030GB/01
1 diagram53 parts
Parts Sections (1)
Diagram

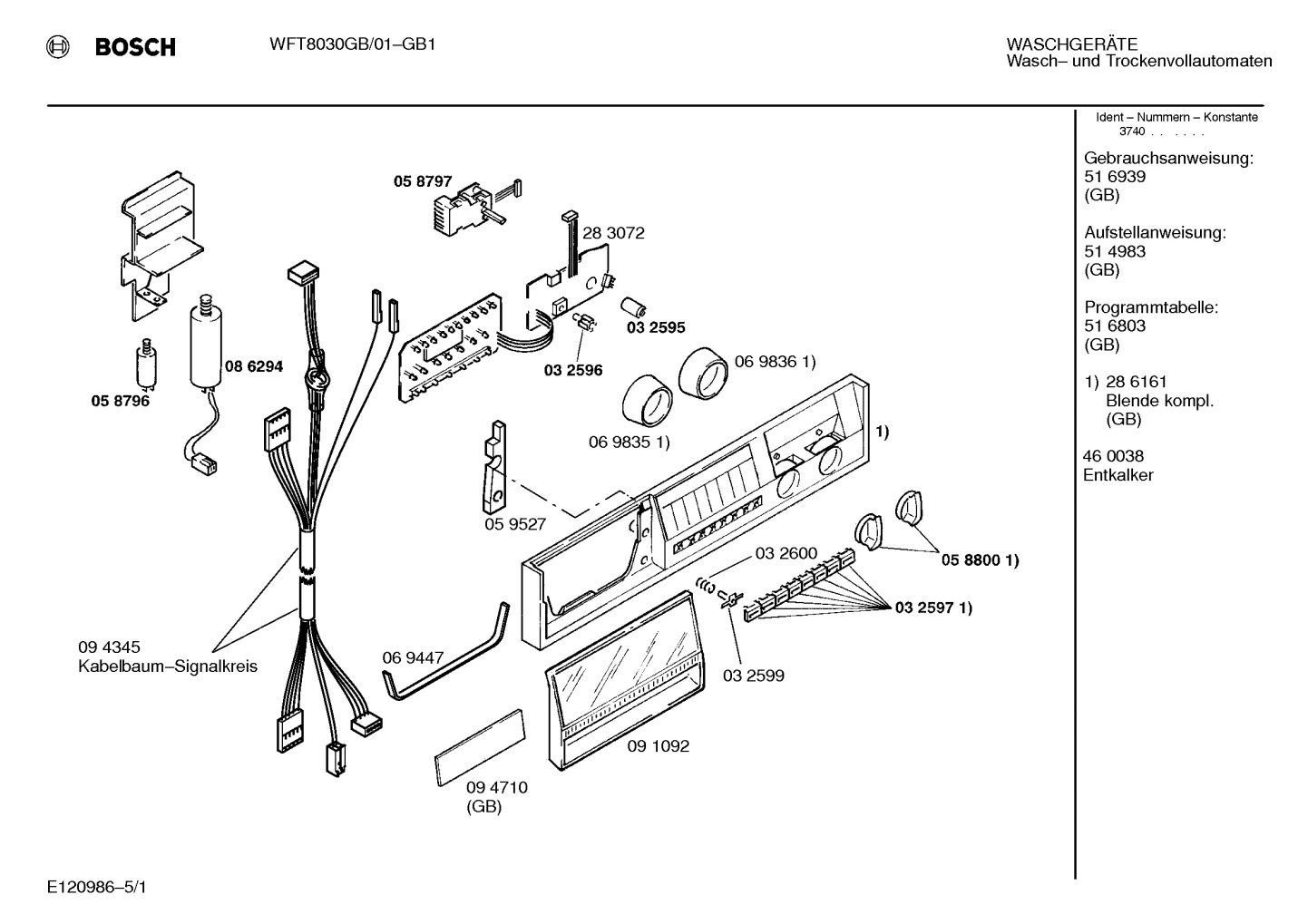

Flaps & Holders, Screws (0023-0549)
Parts in Flaps & Holders, Screws (0023-0549)
56 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0023 |  | Quick descaler | - |
| 0202 |  | Holder | $30.97 ApplianceParts Pro |
| 0204 |  | 00474870NLA Case-rear part | Discontinued |
| 0205 | | Holder | - |
| 0209 | | Case-bottom | - |
| 0211 |  | Foot | - |
| 0216 | | 00029856NLA Clip-earth | Discontinued |
| 0218 | | Holder | - |
| 0219 | | Holder | - |
| 0223 |  | Holder | $6.27 Parts Dr |
| 0225 | | 00029856NLA Clip-earth | Discontinued |
| 0227 |  | Worktop | - |
| 0234 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0402 |  | Screw | $4.45 ApplianceParts Pro |
| 0403 |  | Pulley | $81.95 PartSelect |
| 0404 |  | Screw | - |
| 0405 | | Screw | - |
| 0406 |  | Spring-tank | - |
| 0407 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0408 |  | Spring-tank | $27.78 RepairClinic |
| 0409 |  | 00029863NLA Spring guide | Discontinued |
| 0410 |  | Shaft seal | $54.68 PartSelect |
| 0412 | | Fixing kit | - |
| 0413 | | 00207803NLA Drum | Discontinued |
| 0415 | | Spring guide | - |
| 0416 | | Bearing cross | - |
| 0417 |  | Bearing set | - |
| 0422 |  | Belt-drive | - |
| 0423 |  | Screw | $9.95 ApplianceParts Pro |
| 0424 |  | Holder | - |
| 0427 |  | Shock absorber | $44.85 RepairClinic |
| 0428 | | Holder | - |
| 0430 |  | Sealing | $43.34 ApplianceParts Pro |
| 0431 | | Front | - |
| 0432 | | Weight | - |
| 0433 | | Lock-clamp | - |
| 0437 | | Screw | - |
| 0501 |  | Branching piece | - |
| 0506 |  | Filter-water inlet | $17.16 Parts Dr |
| 0510 |  | Sealing | - |
| 0517 | | Hose connection inlet | - |
| 0518 | | 00029867NLA Sealing | Discontinued |
| 0520 |  | Hose-vent | $35.33 ApplianceParts Pro |
| 0522 | | 00056774NLA Sealing | Discontinued |
| 0523 |  | Ball-sump | - |
| 0524 |  | fastening ring | - |
| 0525 |  | Drain Hose | - |
| 0526 |  | Stud | - |
| 0534 |  | Holder | $14.40 ApplianceParts Pro |
| 0537 |  | Hose-pressure chamber | $12.95 ApplianceParts Pro |
| 0539 | | fastening ring | - |
| 0540 |  | Hose | $64.14 ApplianceParts Pro |
| 0541 | | Latch | - |
| 0546 | | Sealing | - |
| 0547 | | fastening ring | - |
| 0549 | | 00069164NLA Sealing | Discontinued |
