Bosch WFT8430GB/02
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WFT8430GB/02
1 diagram58 parts
Parts Sections (1)
Diagram

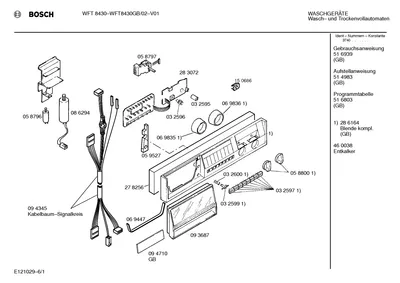

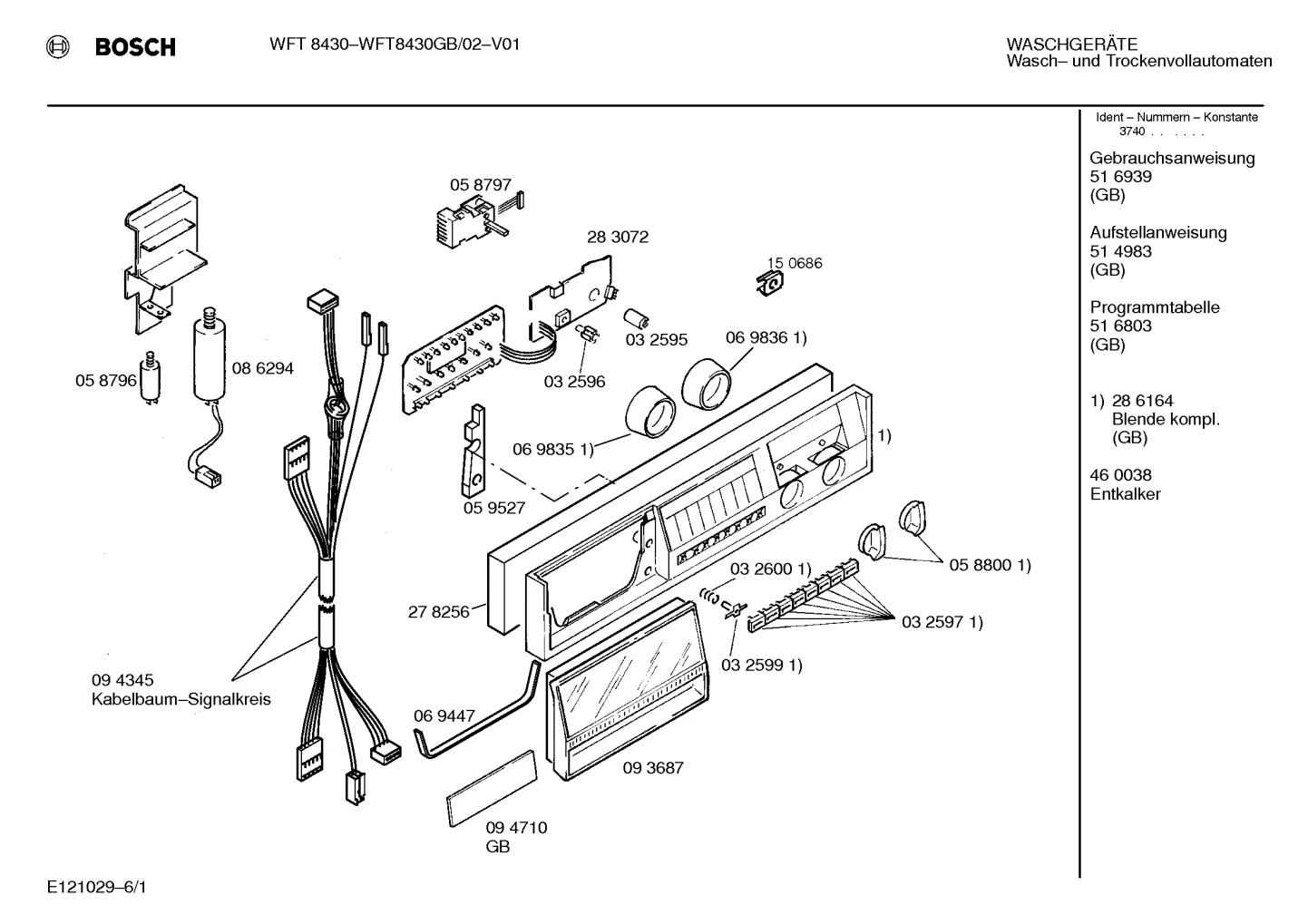

Flaps & Holders, Screws (0023-0649)
Parts in Flaps & Holders, Screws (0023-0649)
61 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0023 |  | Quick descaler | - |
| 0025 |  | Clip | - |
| 0201 |  | Holder | $40.72 PartSelect |
| 0204 | | 00474870NLA Case-rear part | Discontinued |
| 0205 | | Holder | - |
| 0209 | | Case-bottom | - |
| 0211 |  | Foot | - |
| 0214 | | 00029856NLA Clip-earth | Discontinued |
| 0215 | | Holder | - |
| 0216 | | 00029856NLA Clip-earth | Discontinued |
| 0221 | | Holder | - |
| 0224 |  | Holder | $6.27 Parts Dr |
| 0227 |  | Worktop | - |
| 0234 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0250 | | Transit bolt | - |
| 0251 |  | Transit bolt | - |
| 0253 | | 00474870NLA Case-rear part | Discontinued |
| 0254 |  | Auxiliary tool | $11.39 ApplianceParts Pro |
| 0502 |  | Screw | $4.45 ApplianceParts Pro |
| 0503 |  | Pulley | $81.95 PartSelect |
| 0504 |  | Screw | - |
| 0507 |  | Belt-drive | - |
| 0508 |  | Screw | $9.95 ApplianceParts Pro |
| 0509 |  | Holder | - |
| 0511 |  | Spring-tank | - |
| 0512 | | Screw | - |
| 0513 |  | Shaft seal | $54.68 PartSelect |
| 0514 | | Bearing cross | - |
| 0515 | | Spring guide | - |
| 0515 |  | Bearing set | - |
| 0519 |  | Spring guide | $18.95 ApplianceParts Pro |
| 0520 |  | 00029863NLA Spring guide | Discontinued |
| 0521 |  | Spring-tank | $27.78 RepairClinic |
| 0523 | | Fixing kit | - |
| 0524 | | 00207803NLA Drum | Discontinued |
| 0525 |  | Shock absorber | $44.85 RepairClinic |
| 0526 | | Holder | - |
| 0529 |  | Sealing | $43.34 ApplianceParts Pro |
| 0530 | | Front | - |
| 0531 | | Weight | - |
| 0532 | | Lock-clamp | - |
| 0536 | | Screw | - |
| 0601 |  | Branching piece | - |
| 0607 |  | Filter-water inlet | $17.16 Parts Dr |
| 0611 | | Sealing | - |
| 0613 | | 00095269NLA Sieve | Discontinued |
| 0618 | | Hose connection inlet | - |
| 0619 | | 00029867NLA Sealing | Discontinued |
| 0620 |  | Hose-vent | $35.33 ApplianceParts Pro |
| 0621 | | 00056774NLA Sealing | Discontinued |
| 0622 |  | Ball-sump | - |
| 0623 |  | fastening ring | - |
| 0624 |  | Hose | $64.14 ApplianceParts Pro |
| 0630 | | Latch | - |
| 0636 |  | Holder | $14.40 ApplianceParts Pro |
| 0640 | | Sealing | - |
| 0641 | | fastening ring | - |
| 0643 |  | Drain Hose | - |
| 0644 |  | Stud | - |
| 0647 |  | Hose-pressure chamber | $12.95 ApplianceParts Pro |
| 0649 | | 00069164NLA Sealing | Discontinued |
