Model
Bosch WIM3410GB/01
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WIM3410GB/01
1 diagram34 parts
Parts Sections (1)
Diagram

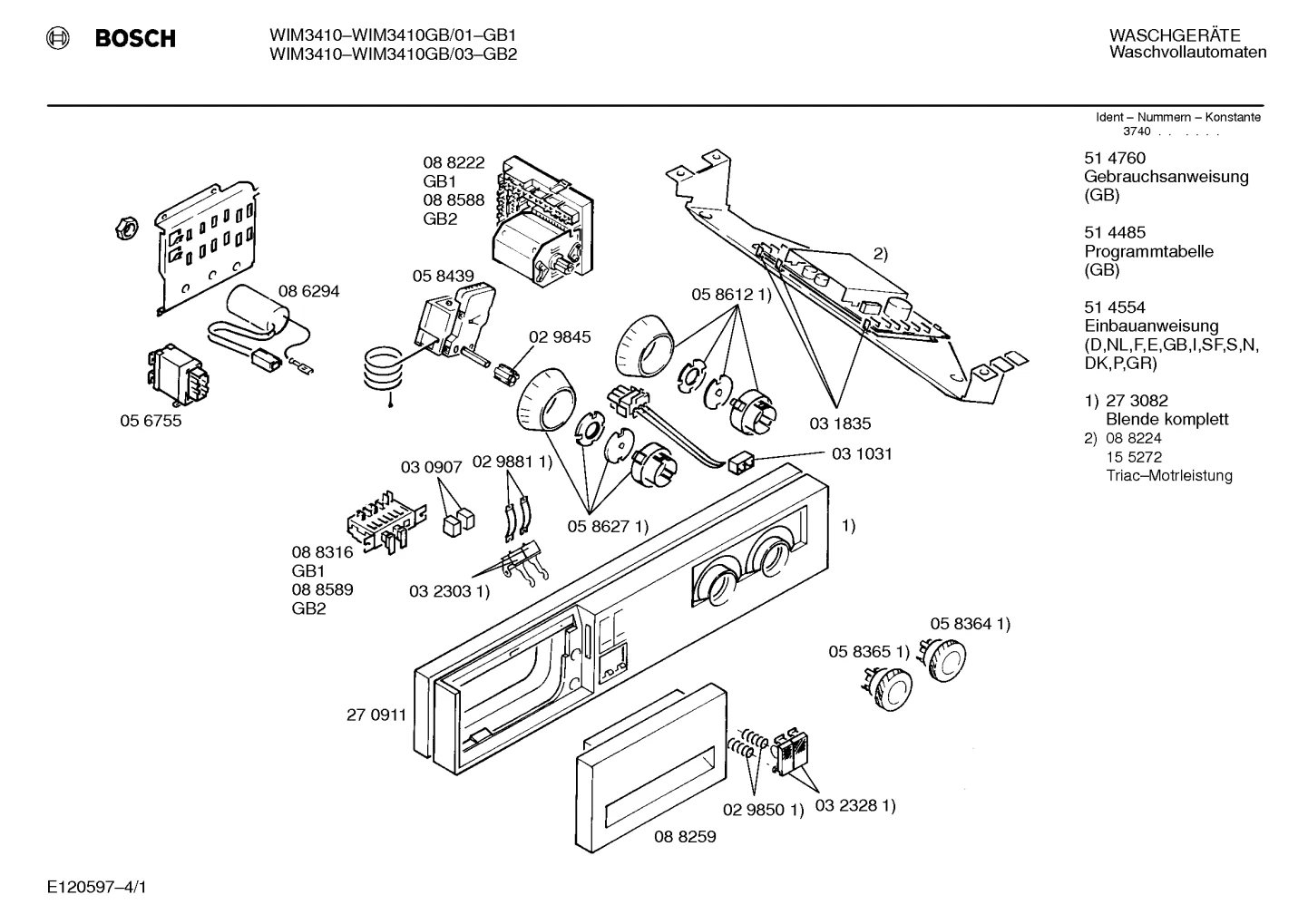

Flaps & Holders, Hoses (0027-0129)
Parts in Flaps & Holders, Hoses (0027-0129)
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0027 |  | Holder | - |
| 0028 | | Holder | - |
| 0029 | | 00029856NLA Clip-earth | Discontinued |
| 0030 | | Holder | - |
| 0041 |  | Electric lock | - |
| 0047 |  | Lock-clamp | $21.68 ApplianceParts Pro |
| 0048 |  | Window | $63.71 ApplianceParts Pro |
| 0050 | | 00474870NLA Case-rear part | Discontinued |
| 0063 |  | 00029863NLA Spring guide | Discontinued |
| 0065 | | Holder | - |
| 0068 | | Screw | - |
| 0069 |  | Screw | - |
| 0070 | | Spring guide | - |
| 0071 |  | Spring-tank | - |
| 0072 |  | Spring-tank | $27.78 RepairClinic |
| 0073 | | Fixing kit | - |
| 0074 | | Screw | - |
| 0078 |  | Shock absorber | $44.85 RepairClinic |
| 0079 |  | Pulley | $81.95 PartSelect |
| 0080 |  | Sealing | $43.34 ApplianceParts Pro |
| 0081 | | Lock-clamp | - |
| 0086 | | Front | - |
| 0087 | | Weight | - |
| 0094 | | 00029867NLA Sealing | Discontinued |
| 0097 | | Sealing | - |
| 0098 |  | fastening ring | - |
| 0100 | | Hose connection inlet | - |
| 0103 |  | Ball-sump | - |
| 0104 | | 00056774NLA Sealing | Discontinued |
| 0109 |  | Holder | $14.40 ApplianceParts Pro |
| 0117 | | Latch | - |
| 0118 |  | Drain Hose | - |
| 0127 |  | Hose | $64.14 ApplianceParts Pro |
| 0129 |  | Sealing | - |
