Model
Bosch WTA3100GB/01
Dryer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WTA3100GB/01Dryer
1 diagram47 parts
Parts Sections (1)
Diagram

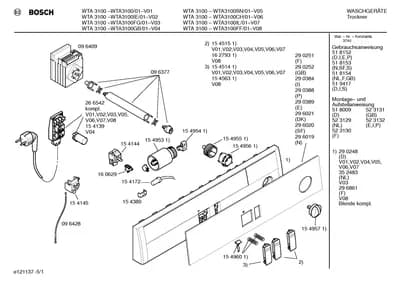

Flaps & Holders, Seals & Gaskets (0010-0517)
Parts in Flaps & Holders, Seals & Gaskets (0010-0517)
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

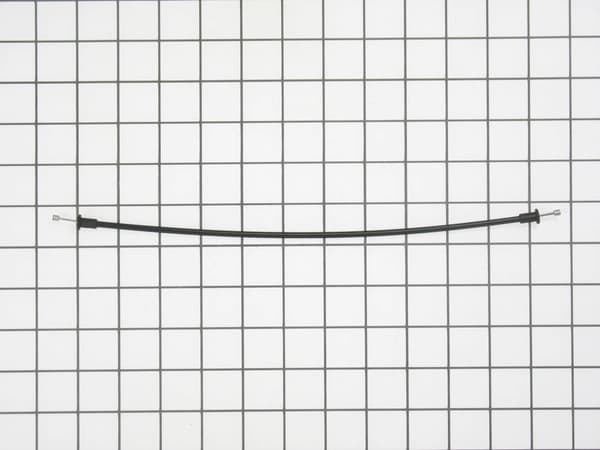

| 0010 |  | Bowden cable | - |
| 0025 |  | Push button cap | $11.93 Parts Dr |
| 0026 |  | 00154515NLA Push button cap | Discontinued |
| 0201 |  | Rivet | - |

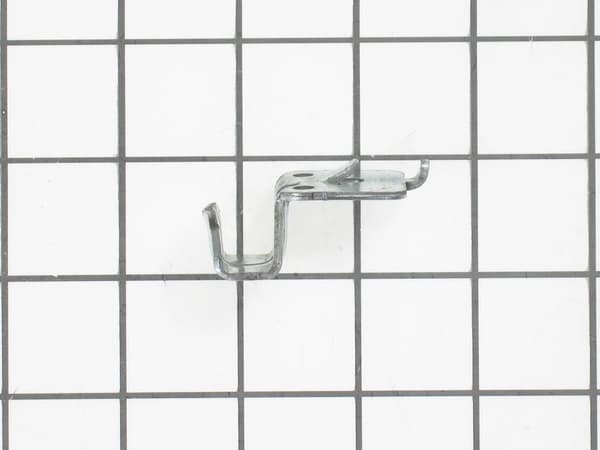

| 0202 |  | Bracket | - |
| 0204 |  | Cover | - |
| 0205 | | Hood | - |
| 0206 |  | Sealing | $23.26 ApplianceParts Pro |
| 0208 | | 00289731NLA Strip | Discontinued |
| 0209 | | 00154159NLA Holder | Discontinued |

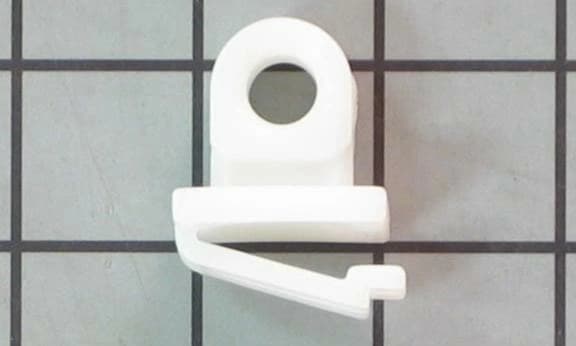

| 0210 |  | Holder | - |
| 0211 | | 00233110NLA Panel side | Discontinued |
| 0213 | | Panel side | - |
| 0217 | | Duct | - |
| 0218 | | Case-rear part | - |
| 0220 |  | Sealing | - |
| 0222 |  | 00289546NLA Panel-base | Discontinued |
| 0223 | | Front panel | - |
| 0224 | | Screw | - |
| 0225 | | Sealing | - |
| 0226 | | 00154163NLA Cover | Discontinued |
| 0230 |  | Exhaust Air Vent Hose | - |
| 0232 |  | Holder | $42.90 ApplianceParts Pro |
| 0301 |  | 00096422NLA Sealing | Discontinued |
| 0302 |  | 00096421NLA Seal-door | Discontinued |
| 0304 |  | Hook | $11.72 Part Advantage |
| 0306 |  | Hinge | - |
| 0307 | | 00210147NLA Door-outer | Discontinued |
| 0401 |  | Seating | - |
| 0402 |  | Holder | - |

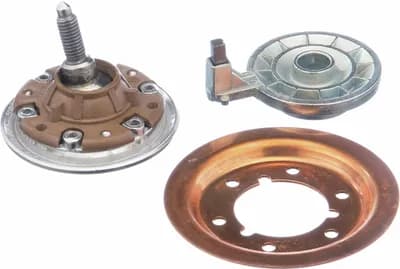

| 0403 |  | Bearing set | $307.20 Parts Dr |

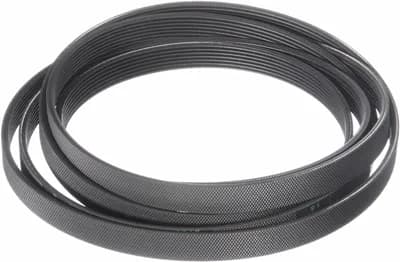

| 0404 |  | Belt-drive | $50.51 Part Advantage |
| 0405 | | Drive coupling | - |
| 0406 | | Drum | - |
| 0407 |  | Seal set - drum support | - |
| 0502 | | Nut | - |
| 0504 |  | Roller-tension | $248.95 PartSelect |

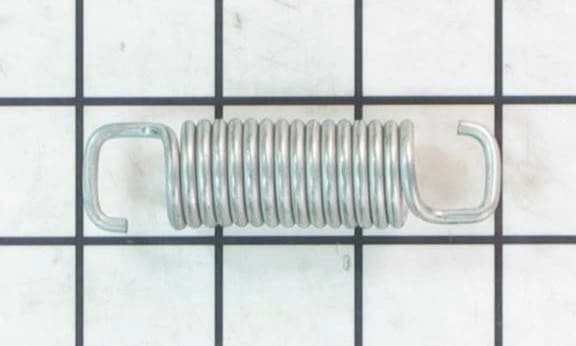

| 0506 |  | Spring | $40.24 ApplianceParts Pro |
| 0507 |  | Holder | $3.06 ApplianceParts Pro |
| 0508 |  | Fan drum | $65.73 PartSelect |
| 0509 |  | Bushing | $60.05 ApplianceParts Pro |
| 0510 |  | Belt-drive | $21.35 Part Advantage |
| 0511 | | 00154150NLA Holder | Discontinued |
| 0514 |  | Foot | $9.21 Part Advantage |
| 0515 |  | Holder | $273.87 Part Advantage |
| 0516 | | Holder | - |
| 0517 |  | Stud | - |
