Model
Bosch WTA3500GB/08
Dryer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WTA3500GB/08Dryer
1 diagram61 parts
Parts Sections (1)
Diagram

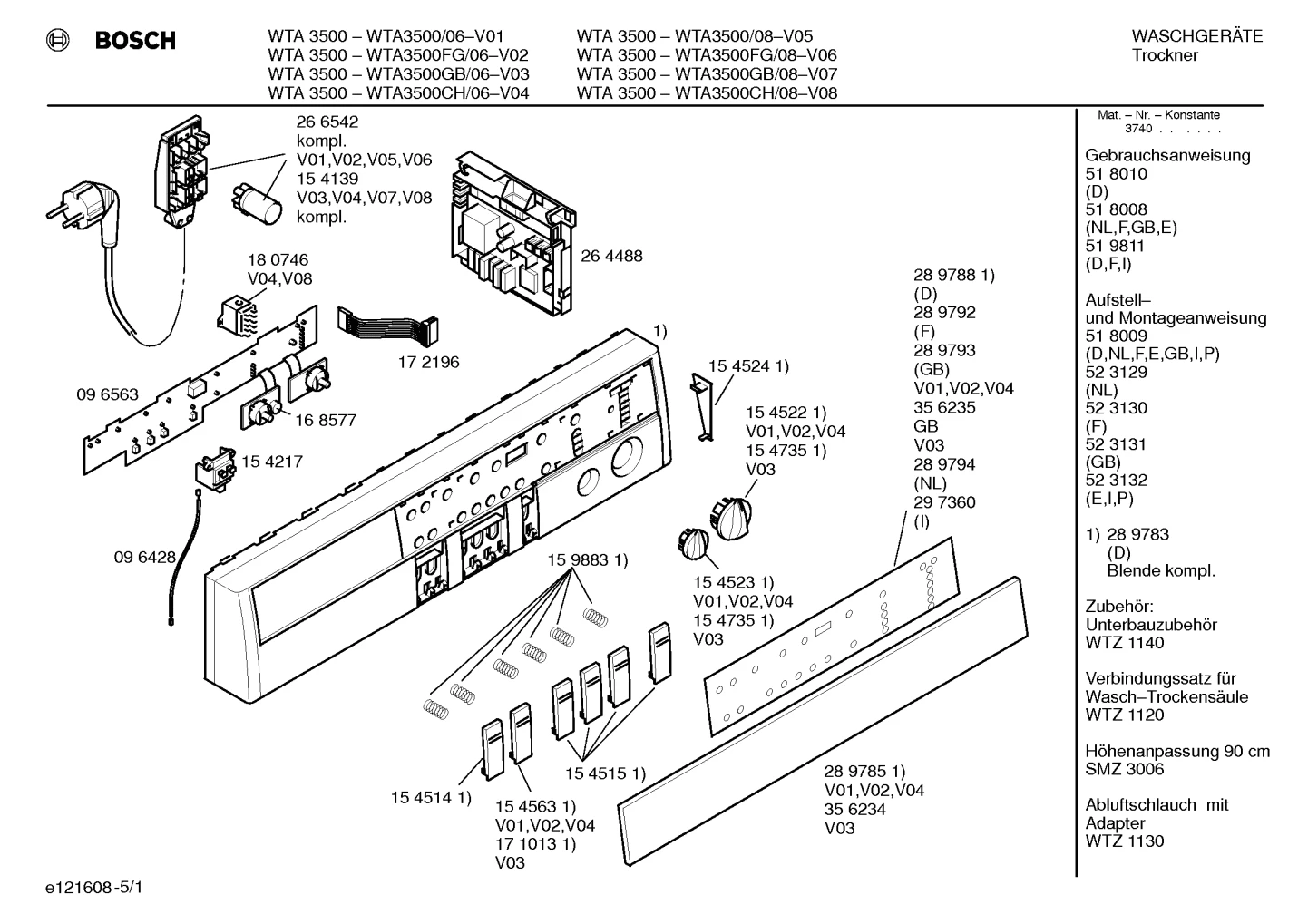

Flaps & Holders, Seals & Gaskets (0004-0519)
Parts in Flaps & Holders, Seals & Gaskets (0004-0519)
64 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0004 |  | Switch | - |
| 0005 |  | Cable harness | - |

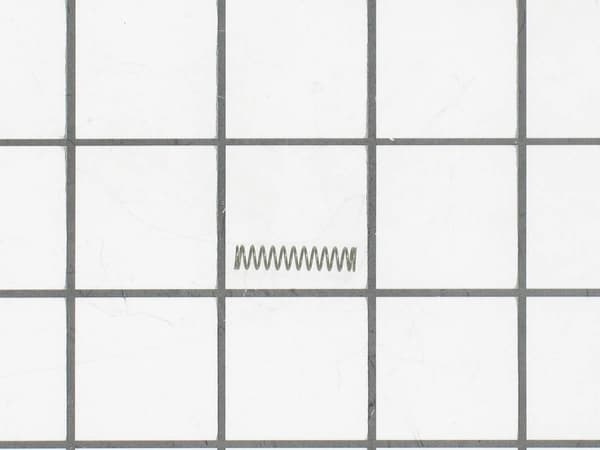

| 0007 |  | Spring | $21.86 Parts Dr |
| 0008 |  | Push button cap | $11.93 Parts Dr |
| 0009 |  | 00154515NLA Push button cap | Discontinued |
| 0021 | | 00168577NLA Buzzer | Discontinued |
| 0029 |  | Bowden cable | - |
| 0201 | | Hood | - |
| 0202 | | Sealing | - |
| 0203 |  | Bracket | - |
| 0205 |  | Cover | - |
| 0205 |  | Holder | $42.90 ApplianceParts Pro |
| 0206 | | 00289731NLA Strip | Discontinued |
| 0207 | | 00154159NLA Holder | Discontinued |
| 0208 |  | 00163297NLA Limiter-temperature | Discontinued |
| 0211 | | Panel side | - |
| 0212 |  | Holder | - |
| 0213 | | Duct | - |
| 0214 | | Case-rear part | - |
| 0215 | | 00233110NLA Panel side | Discontinued |
| 0220 |  | Sealing | - |
| 0221 |  | Electric lock | - |
| 0222 | | Front panel | - |
| 0224 |  | Seal | - |
| 0225 |  | Repair-set | $26.78 Part Advantage |
| 0226 | | 00154163NLA Cover | Discontinued |
| 0227 | | Sealing | - |
| 0228 | | Screw | - |
| 0229 |  | 00289546NLA Panel-base | Discontinued |
| 0233 |  | Cover | - |
| 0234 | | Light socket | - |
| 0235 |  | Lamp | - |
| 0238 |  | Exhaust Air Vent Hose | - |
| 0239 |  | Sealing | $23.26 ApplianceParts Pro |
| 0301 |  | 00096422NLA Sealing | Discontinued |
| 0302 |  | 00096421NLA Seal-door | Discontinued |
| 0304 |  | Hook | $11.72 Part Advantage |
| 0305 |  | Hinge | - |
| 0306 | | 00210147NLA Door-outer | Discontinued |
| 0401 |  | Seating | - |
| 0402 |  | Holder | - |
| 0403 | | 00210158NLA Band | Discontinued |
| 0404 |  | Bearing set | $307.20 Parts Dr |
| 0405 |  | Holder | - |
| 0406 | | Holder | - |
| 0406 | | Holder | - |
| 0407 | | Drive coupling | - |
| 0408 |  | Belt-drive | $50.51 Part Advantage |
| 0409 | | Holder | - |
| 0410 |  | Seal set - drum support | - |
| 0411 | | Drum | - |
| 0412 |  | Lubricant | - |
| 0505 | | Holder | - |
| 0506 | | Nut | - |
| 0507 |  | Foot | $9.21 Part Advantage |
| 0508 |  | Roller-tension | $248.95 PartSelect |
| 0509 |  | Spring | $40.24 ApplianceParts Pro |
| 0510 |  | Holder | $3.06 ApplianceParts Pro |
| 0511 |  | Belt-drive | $21.35 Part Advantage |
| 0512 | | 00154150NLA Holder | Discontinued |
| 0514 |  | Bushing | $60.05 ApplianceParts Pro |
| 0515 |  | 00264487NLA Fan drum | Discontinued |
| 0518 |  | Stud | - |
| 0519 |  | Holder | $273.87 Part Advantage |
