Model
Bosch WTA4409GB/05
Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WTA4409GB/05Dryer
5 diagrams57 parts
Parts Sections (5)
Diagram

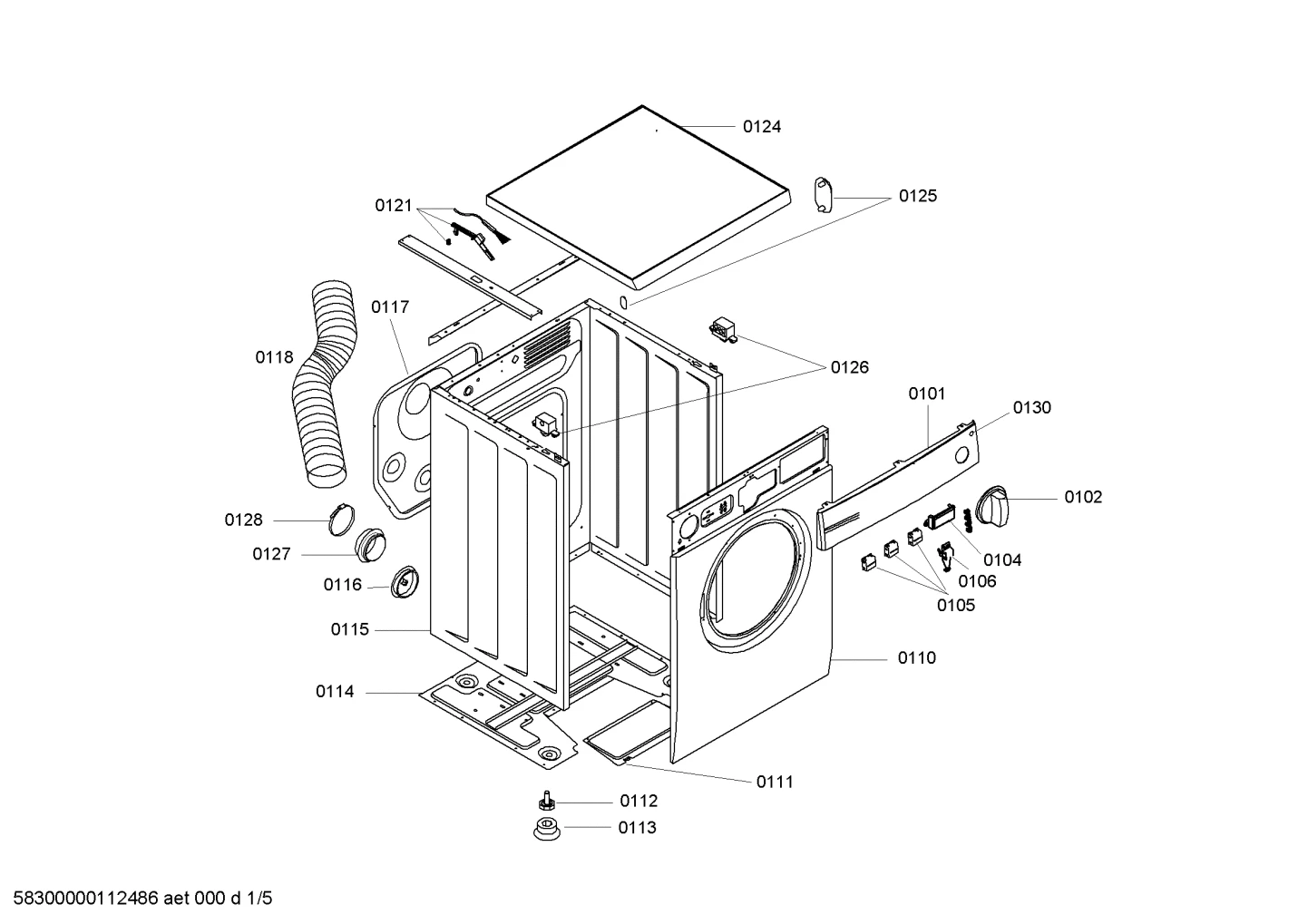

Flaps & Holders, Handles & Knobs (0102-0130)
Parts in Flaps & Holders, Handles & Knobs (0102-0130)
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | 00604440NLA Knob-programme | Discontinued |
| 0104 |  | Cover | - |
| 0105 | | Push button cap | - |
| 0106 | | Push button cap | - |
| 0110 | | Front panel | - |
| 0111 | | 00492198NLA Case-bottom | Discontinued |
| 0112 | | Foot | - |
| 0113 | | Foot | - |
| 0114 | | Case-bottom | - |
| 0116 | | Cover | - |
| 0117 | | Case-rear part | - |
| 0118 |  | Exhaust Air Vent Hose | - |
| 0121 |  | Holder | - |
| 0124 | | Worktop | - |
| 0125 | | Cover | - |
| 0126 | | Distance holder | - |
| 0127 |  | Stud | - |
| 0128 | | Part not included in this appliance | - |
| 0130 | | Lamp | - |
