Model
Bosch WTL5100GB/05
Dryer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WTL5100GB/05Dryer
1 diagram63 parts
Parts Sections (1)
Diagram

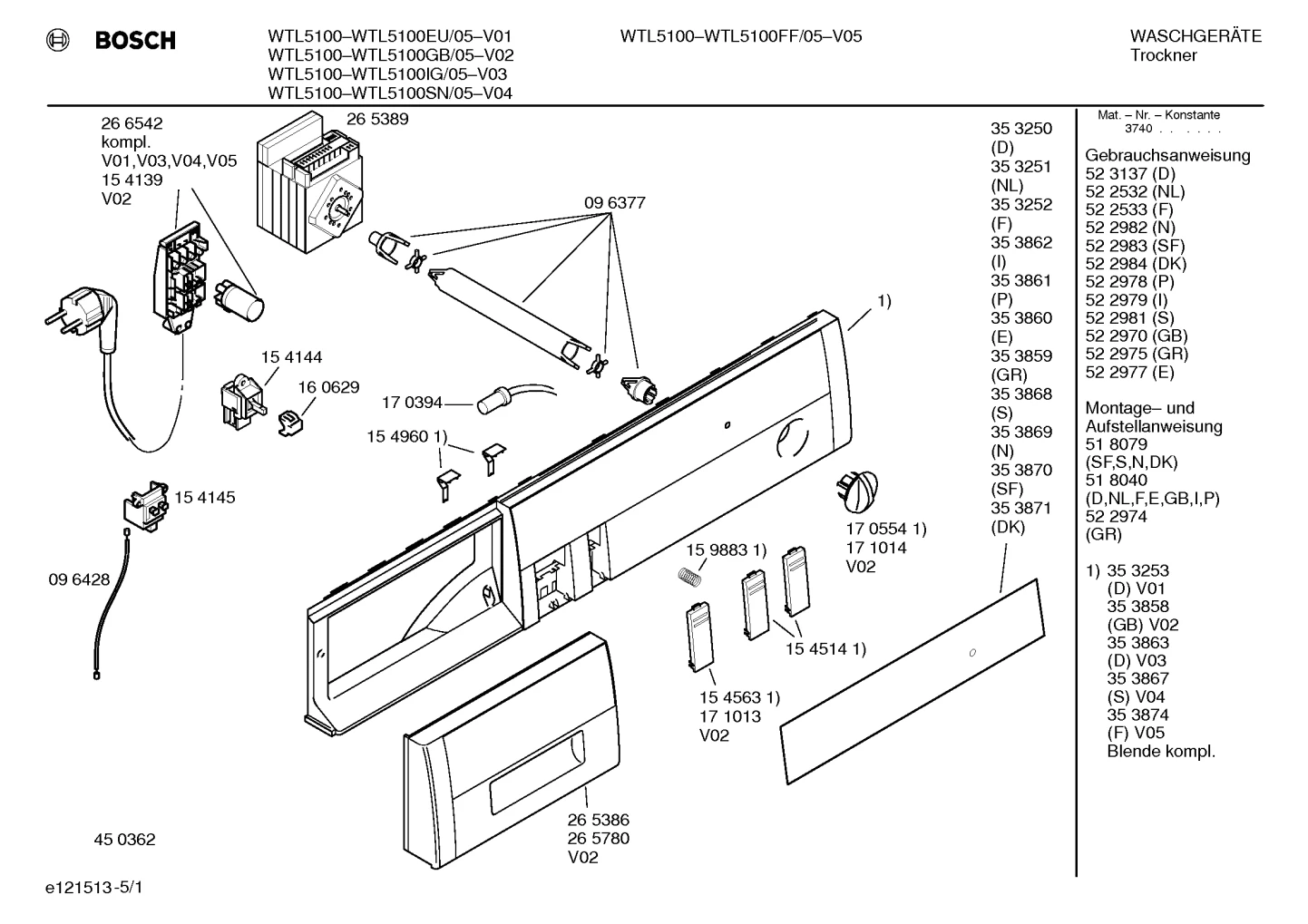

Flaps & Holders, Seals & Gaskets (0003-0537)
Parts in Flaps & Holders, Seals & Gaskets (0003-0537)
63 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0003 |  | Push button cap | $11.93 Parts Dr |
| 0004 |  | Spring | $21.86 Parts Dr |
| 0018 |  | Bowden cable | - |
| 0201 |  | Rivet | - |
| 0203 |  | Cover | - |
| 0204 | | Hood | - |
| 0205 |  | Sealing | $23.26 ApplianceParts Pro |
| 0206 | | 00289731NLA Strip | Discontinued |
| 0207 | | 00154159NLA Holder | Discontinued |
| 0209 |  | Holder | $42.90 ApplianceParts Pro |
| 0211 | | Sealing | - |
| 0215 | | Duct | - |
| 0217 |  | Cover | - |
| 0218 | | Panel side | - |
| 0219 | | Panel side | - |
| 0222 |  | Sealing | - |
| 0223 |  | Bearing | - |
| 0224 | | 00210159NLA Front panel | Discontinued |
| 0225 |  | Lock-mechanical | $49.81 Part Advantage |
| 0226 |  | Key | - |
| 0228 | | Strip | - |
| 0229 | | Screw | - |
| 0230 | | Sealing | - |
| 0232 | | 00154163NLA Cover | Discontinued |
| 0302 |  | 00096422NLA Sealing | Discontinued |
| 0303 |  | 00096421NLA Seal-door | Discontinued |
| 0304 |  | Hook | $11.72 Part Advantage |
| 0306 |  | Hinge | - |
| 0307 | | 00210147NLA Door-outer | Discontinued |
| 0401 |  | Seating | - |
| 0402 |  | Bearing set | $307.20 Parts Dr |
| 0403 |  | Holder | - |
| 0404 | | Drive coupling | - |
| 0405 | | Drum | - |
| 0406 |  | Belt-drive | $50.51 Part Advantage |
| 0407 |  | Holder | - |
| 0409 |  | Seal set - drum support | - |
| 0410 |  | Lubricant | - |
| 0507 |  | Drain Hose | $22.19 Part Advantage |
| 0508 | | Nut | - |
| 0509 | | Hose connection inlet | - |
| 0510 | | 00165277NLA Plug | Discontinued |
| 0513 | | Cover | - |
| 0516 |  | Foot | $9.21 Part Advantage |
| 0517 |  | Hinge | $6.33 RepairClinic |
| 0518 |  | Cooler | $393.52 ApplianceParts Pro |
| 0519 |  | Sealing | - |
| 0520 | | Jet | - |
| 0521 | | Holder | - |
| 0522 |  | 00264487NLA Fan drum | Discontinued |
| 0524 | | 00154204NLA Ball bearing | Discontinued |
| 0525 | | Bushing | - |
| 0526 |  | Holder | $3.06 ApplianceParts Pro |
| 0527 |  | Spring | $40.24 ApplianceParts Pro |
| 0528 |  | Belt-drive | $21.35 Part Advantage |
| 0529 | | Holder | - |
| 0530 |  | Roller-tension | $248.95 PartSelect |
| 0531 |  | Holder | $273.87 Part Advantage |
| 0532 |  | Fan drum | - |
| 0533 |  | Lock-mechanical | $5.03 RepairClinic |
| 0534 |  | Panel-base | - |
| 0535 |  | Drain Hose Kit for Dryers | $32.22 Parts Dr |
| 0537 |  | Flap | - |
