Model
Bosch WTL5600GB/02
Dryer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
WTL5600GB/02Dryer
1 diagram66 parts
Parts Sections (1)
Diagram

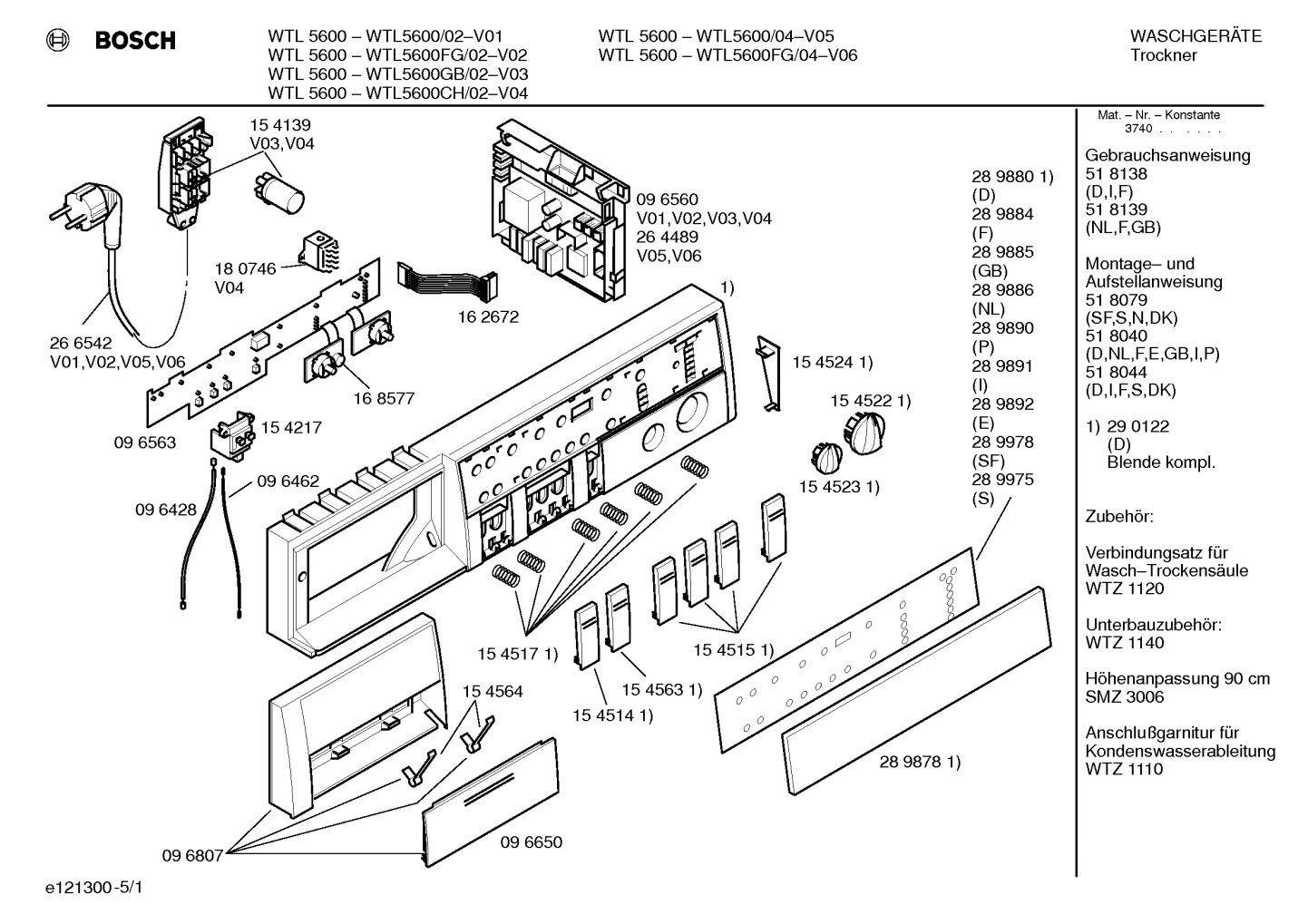

Flaps & Holders, Seals & Gaskets (0002-0543)
Parts in Flaps & Holders, Seals & Gaskets (0002-0543)
70 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | 00168577NLA Buzzer | Discontinued |
| 0004 |  | Switch | - |
| 0005 | | Power module | - |
| 0007 |  | Bowden cable | - |
| 0010 |  | Spring | $21.86 Parts Dr |
| 0013 |  | 00154515NLA Push button cap | Discontinued |
| 0014 |  | Push button cap | $11.93 Parts Dr |
| 0015 | | Push button cap | $11.93 Parts Dr |
| 0016 | | Cable harness | - |
| 0201 | | Rivet | - |
| 0202 |  | Bracket | - |
| 0204 |  | Cover | - |
| 0205 | | 00289731NLA Strip | Discontinued |
| 0206 | | 00154159NLA Holder | Discontinued |
| 0207 |  | Holder | - |
| 0209 |  | 00163297NLA Limiter-temperature | Discontinued |
| 0211 | | Hood | - |
| 0212 | | Sealing | - |
| 0214 | | Duct | - |
| 0216 | | Panel side | - |
| 0217 | | Panel side | - |
| 0220 |  | Cover | - |
| 0221 | | Light socket | - |
| 0222 |  | Lamp | - |
| 0224 |  | Sealing | - |
| 0226 |  | Electric lock | - |
| 0227 |  | Bearing | - |
| 0228 | | Strip | - |
| 0230 |  | Lock-mechanical | $49.81 Part Advantage |
| 0231 |  | Key | - |
| 0236 | | Screw | - |
| 0237 |  | Seal | - |
| 0238 | | 00154163NLA Cover | Discontinued |
| 0239 |  | Repair-set | $26.78 Part Advantage |
| 0301 |  | 00096422NLA Sealing | Discontinued |
| 0302 |  | 00096421NLA Seal-door | Discontinued |
| 0401 |  | Seating | - |
| 0403 |  | Holder | - |
| 0404 | | Holder | - |
| 0405 | | Drive coupling | - |
| 0407 |  | Seal set - drum support | - |
| 0408 |  | Holder | - |
| 0409 |  | Bearing set | $307.20 Parts Dr |
| 0410 | | 00210158NLA Band | Discontinued |
| 0411 | | Drum | - |
| 0412 |  | Belt-drive | $50.51 Part Advantage |
| 0413 |  | Lubricant | - |
| 0504 | | Hose connection inlet | - |
| 0505 |  | Drain Hose | $22.19 Part Advantage |
| 0506 | | Nut | - |
| 0508 | | Repair-set | $26.78 Part Advantage |
| 0509 | | Seal | - |
| 0515 | | Cover | - |
| 0517 | | Jet | - |
| 0518 |  | 00289557NLA Insulating plate | Discontinued |
| 0519 |  | Sealing | - |
| 0522 |  | Cooler | $393.52 ApplianceParts Pro |
| 0523 |  | Lock-mechanical | $5.03 RepairClinic |
| 0525 |  | Foot | $9.21 Part Advantage |
| 0527 |  | Drain Hose Kit for Dryers | $32.22 Parts Dr |
| 0528 | | Holder | - |
| 0529 |  | Roller-tension | $248.95 PartSelect |
| 0530 |  | Spring | $40.24 ApplianceParts Pro |
| 0531 |  | Holder | $3.06 ApplianceParts Pro |
| 0532 |  | Fan drum | $65.73 PartSelect |
| 0536 | | 00154204NLA Ball bearing | Discontinued |
| 0537 |  | Belt-drive | $21.35 Part Advantage |
| 0538 | | Bushing | - |
| 0539 |  | Fan drum | - |
| 0543 |  | Holder | $273.87 Part Advantage |
