Model
Kenmore 253.44302401
Refrigerator (Kenmore 25344302401)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.44302401Refrigerator (Kenmore 25344302401)
9 diagrams367 parts

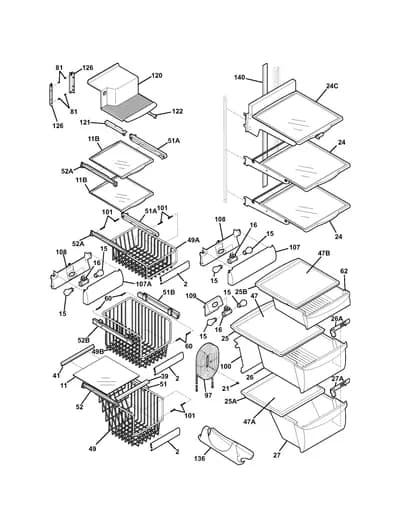

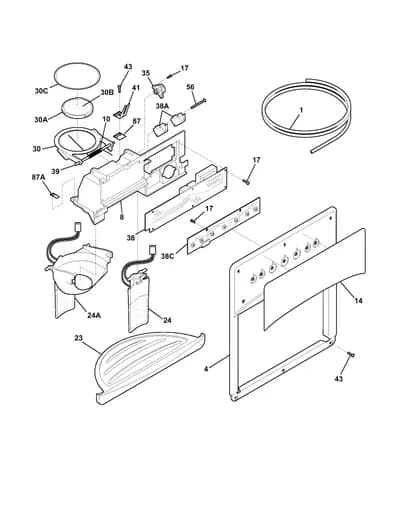

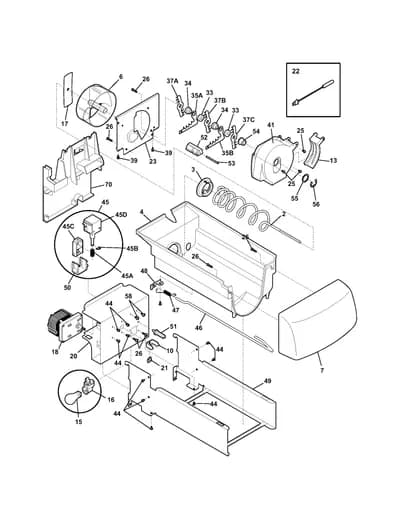

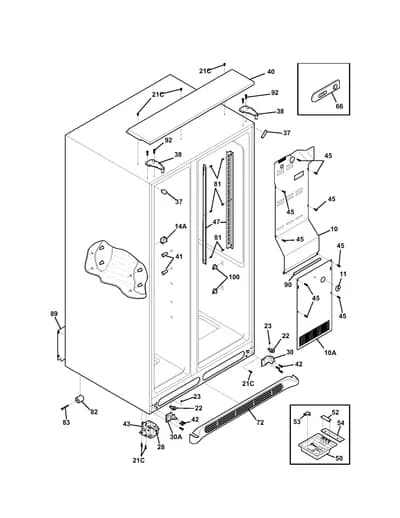

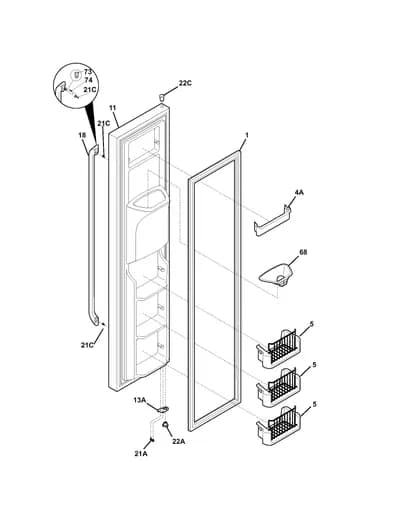

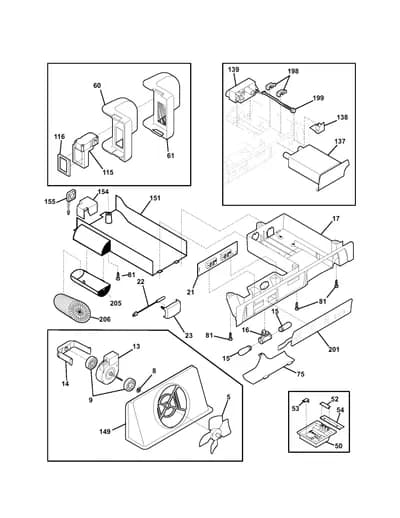

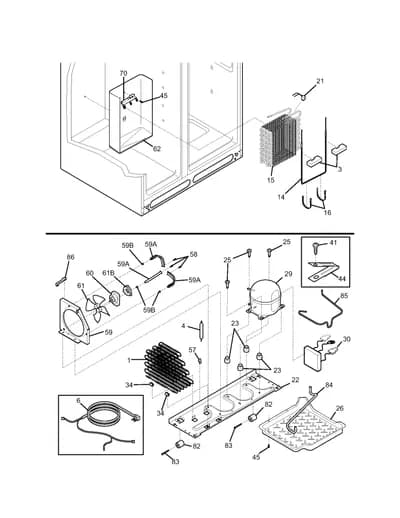

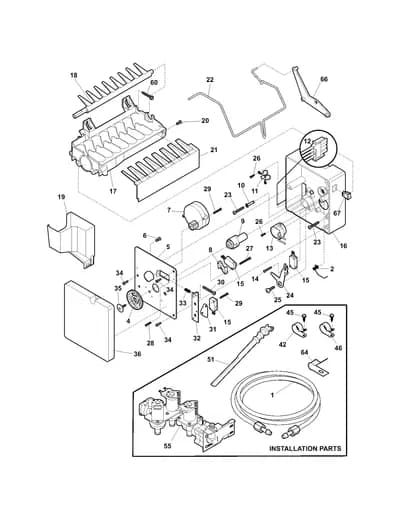

Parts Sections (9)
Diagram

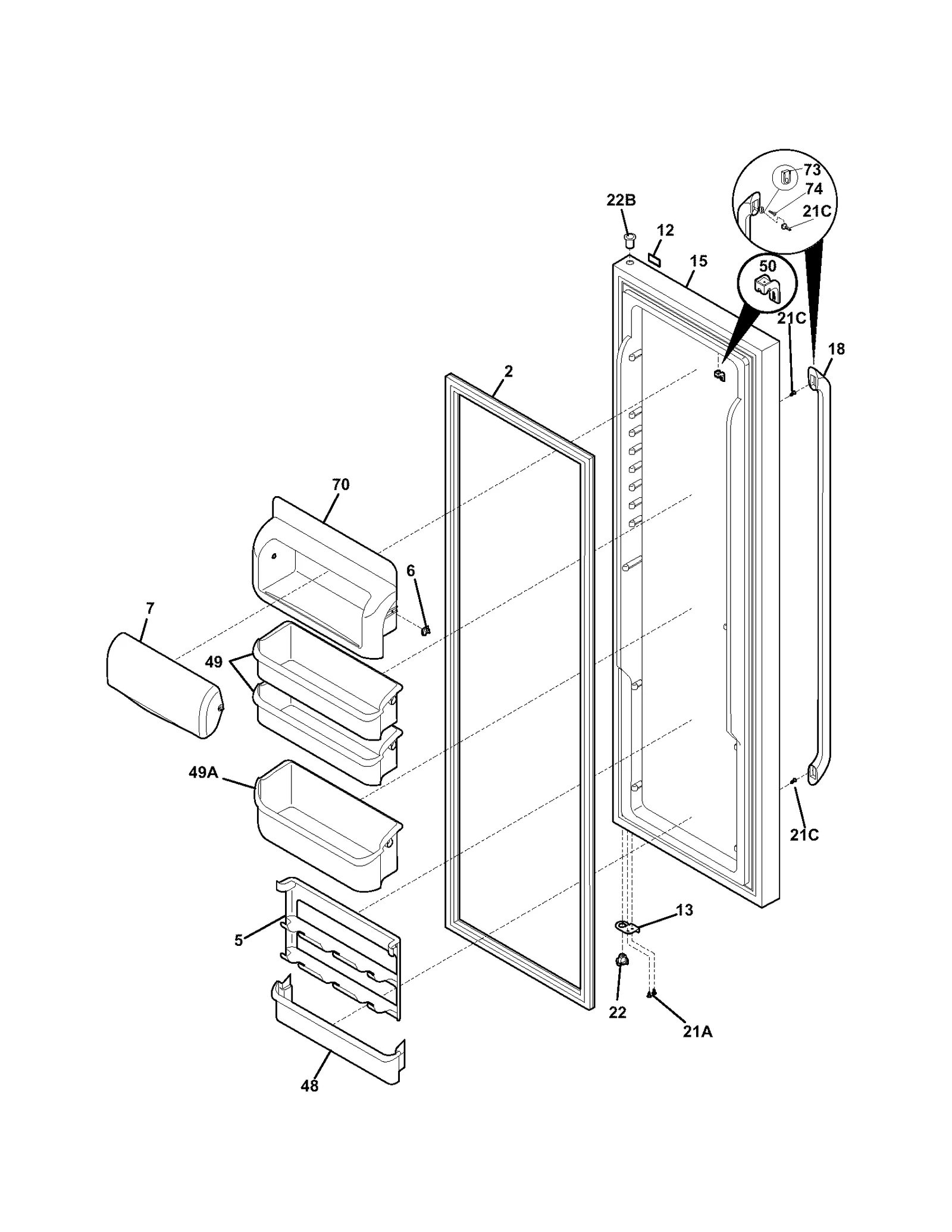

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | Refrigerator Door Gasket | $129.32 Parts Dr |
| 2 |  | 241510207replaces 241510203 Refrigerator Door Gasket | $53.98 Part Advantage |
| 5 |  | 241516102NLA Refrigerator Can Rack | Discontinued |
| 6 |  | Refrigerator Door Bin Retainer Clip | $15.77 RepairClinic |
| 7 |  | 241515606replaces 241515601 Refrigerator Dairy Bin Cover | $22.15 Part Advantage |
| 12 | | Refrigerator Nameplate | - |
| 13 |  | 5303918455replaces 240537101 Refrigerator Stop | $81.30 Part Advantage |
| 13 | | 5303918455replaces 240537103 Refrigerator Trim | $81.30 Part Advantage |
| 13 | | 5303918455replaces 240537105 Refrigerator Stop | $81.30 Part Advantage |
| 15 | – | 241534510 Refrigerator Door | - |
| 15 | – | 241534511 Refrigerator Door | - |
| 15 | – | 241534512 Blk Ff Door | - |
| 18 | – | 241556201 Refrigerator Door Handle | - |
| 18 | – | 241556203 Refrigerator Door Handle | - |
| 18 | – | 241556205 Refrigerator Door Handle | - |
| 21A |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 21C |  | 240521303replaces 240521301 Screw | $8.19 Part Advantage |
| 22 |  | Refrigerator Door Closer Bearing | $10.24 Part Advantage |
| 22 |  | Refrigerator Door Hinge Bushing | $12.29 Part Advantage |
| 22B |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 22B | | 240328401NLA Refrigerator Door Hinge Bushing, Upper | Discontinued |
| 48 |  | 241511701replaces 241511704 Refrigerator Door Bin | $37.01 Part Advantage |
| 49 |  | 241505301replaces 241505304 Refrigerator Door Bin | $39.43 Parts Dr |
| 49A |  | 241505506replaces 241505504 Refrigerator Door Bin | $55.21 Parts Dr |
| 50 | | Magnet Cover | - |
| 70 |  | Refrigerator Dairy Bin | $100.17 Part Advantage |
| 73 | | 241556401NLA Refrigerator Door Handle Mounting Block | Discontinued |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
