Model
Kenmore 253.44352409
Refrigerator (Kenmore 25344352409)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.44352409Refrigerator (Kenmore 25344352409)
9 diagrams356 parts
Parts Sections (9)
Diagram

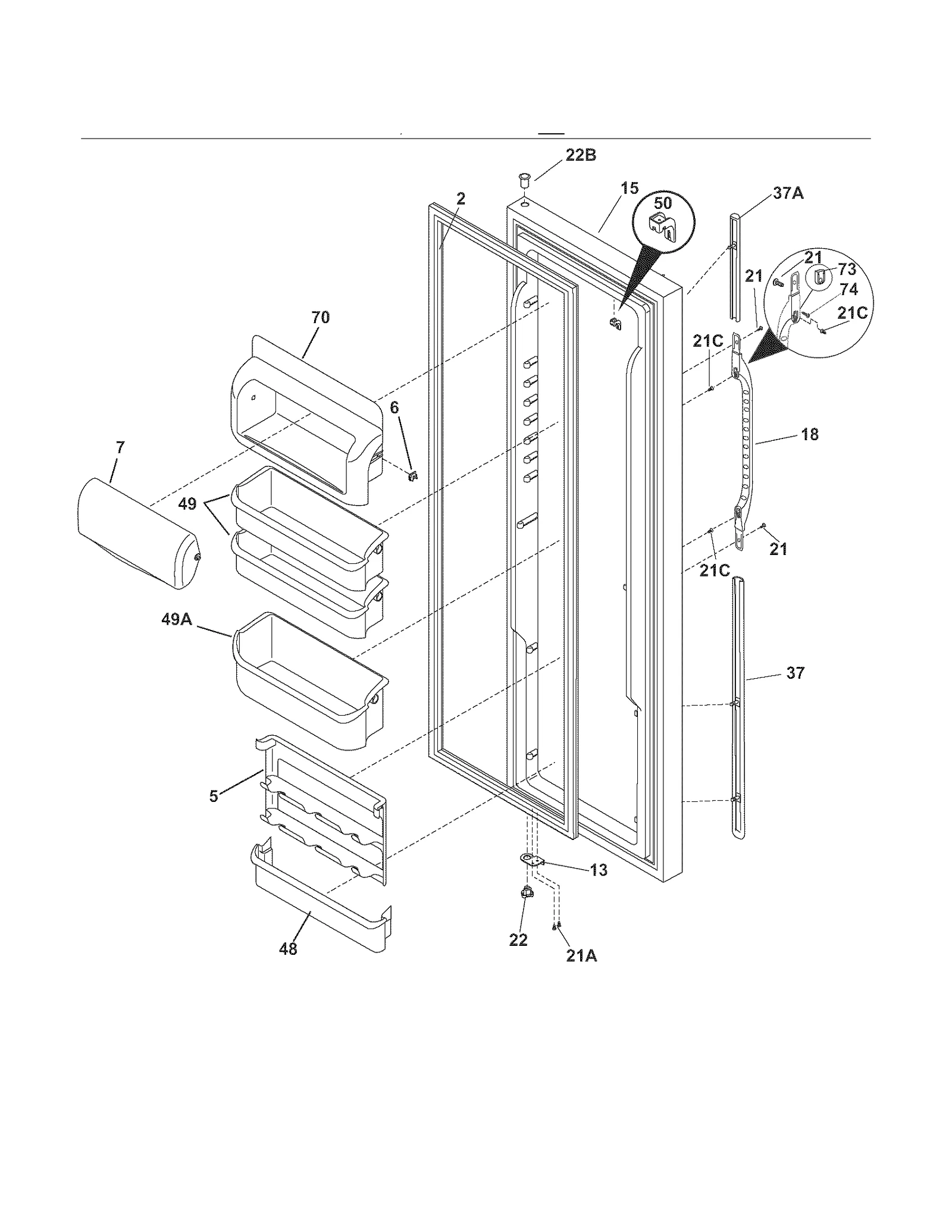

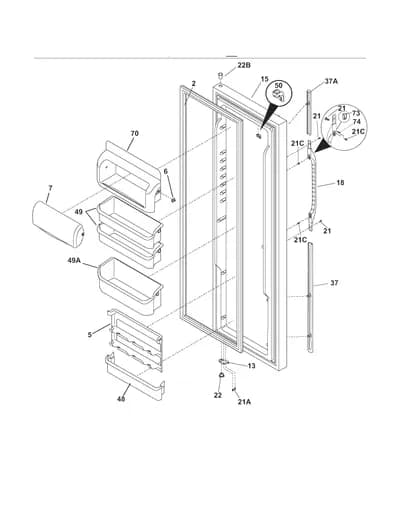

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | Refrigerator Door Gasket | $129.32 Parts Dr |
| 2 |  | 241510207replaces 241510203 Refrigerator Door Gasket | $53.98 Part Advantage |
| 5 |  | Refrigerator Can Rack | - |
| 6 |  | Refrigerator Door Bin Retainer Clip | $15.77 RepairClinic |
| 7 |  | 241515606replaces 241515601 Refrigerator Dairy Bin Cover | $22.15 Part Advantage |
| 13 |  | 5303918455replaces 240537101 Refrigerator Stop | $81.30 Part Advantage |
| 13 | | 5303918455replaces 240537103 Refrigerator Trim | $81.30 Part Advantage |
| 13 | | 5303918455replaces 240537105 Refrigerator Stop | $81.30 Part Advantage |
| 13 |  | Refrigerator Door Stop (Black) | $34.87 Part Advantage |
| 15 | – | 241534516 Refrigerator Complete Door | - |
| 15 | – | 241534517 Refrigerator Complete Door | - |
| 15 | – | 241534518 Refrigerator Complete Door | - |
| 15 | – | 241534549 Refrigerator Door | - |
| 18 |  | 297272500replaces 218803901 Upright Freezer Door Handle (White) | $45.51 Part Advantage |
| 18 |  | Refrigerator Door Handle (Gray) | Discontinued |
| 18 | – | 218803904 Handle Ff &f | - |
| 21 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 21A |  | 5303323137replaces 240598401 Refrigerator Freezer Door Handle Screw | $8.39 ApplianceParts Pro |
| 21A |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 21C | | 240521302NLA Refrigerator Freezer Door Handle Screw | Discontinued |
| 22 |  | Refrigerator Door Closer Bearing | $10.24 Part Advantage |
| 22 |  | Refrigerator Door Hinge Bushing | $12.29 Part Advantage |
| 22B | | 240328401NLA Refrigerator Door Hinge Bushing, Upper | Discontinued |
| 22B |  | 240328403NLA Refrigerator Door Hinge Bushing | Discontinued |
| 37 |  | Freezer Door Handle Trim, Lower | - |
| 37 | | 218779320NLA Refrigerator Door Handle Trim, Lower (Black) | Discontinued |
| 37 | | Refrigerator Freezer Door Handle Trim, Lower (Bisque) | - |
| 37A | | 218776501replaces 218776600 Tri Snap | - |
| 37A | | Refrigerator Door Handle Trim, Upper (White) | - |
| 37A | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 37A | | Refrigerator Handle Trim | - |
| 48 |  | Refrigerator Door Bin | $59.48 ApplianceParts Pro |
| 49 |  | Refrigerator Door Bin | $39.74 Part Advantage |
| 49A |  | Refrigerator Door Bin | $55.21 Parts Dr |
| 50 | | Magnet Cover | - |
| 58 | | Refrigerator Door Inner Liner Screw | - |
| 70 |  | Refrigerator Dairy Bin | $100.17 Part Advantage |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| NI |  | 218709101replaces 218709100 Refrigerator Handle Screw | $5.31 RepairClinic |
