Model
Kenmore 253.44353400
Refrigerator (Kenmore 25344353400)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.44353400Refrigerator (Kenmore 25344353400)
9 diagrams353 parts
Parts Sections (9)
Diagram

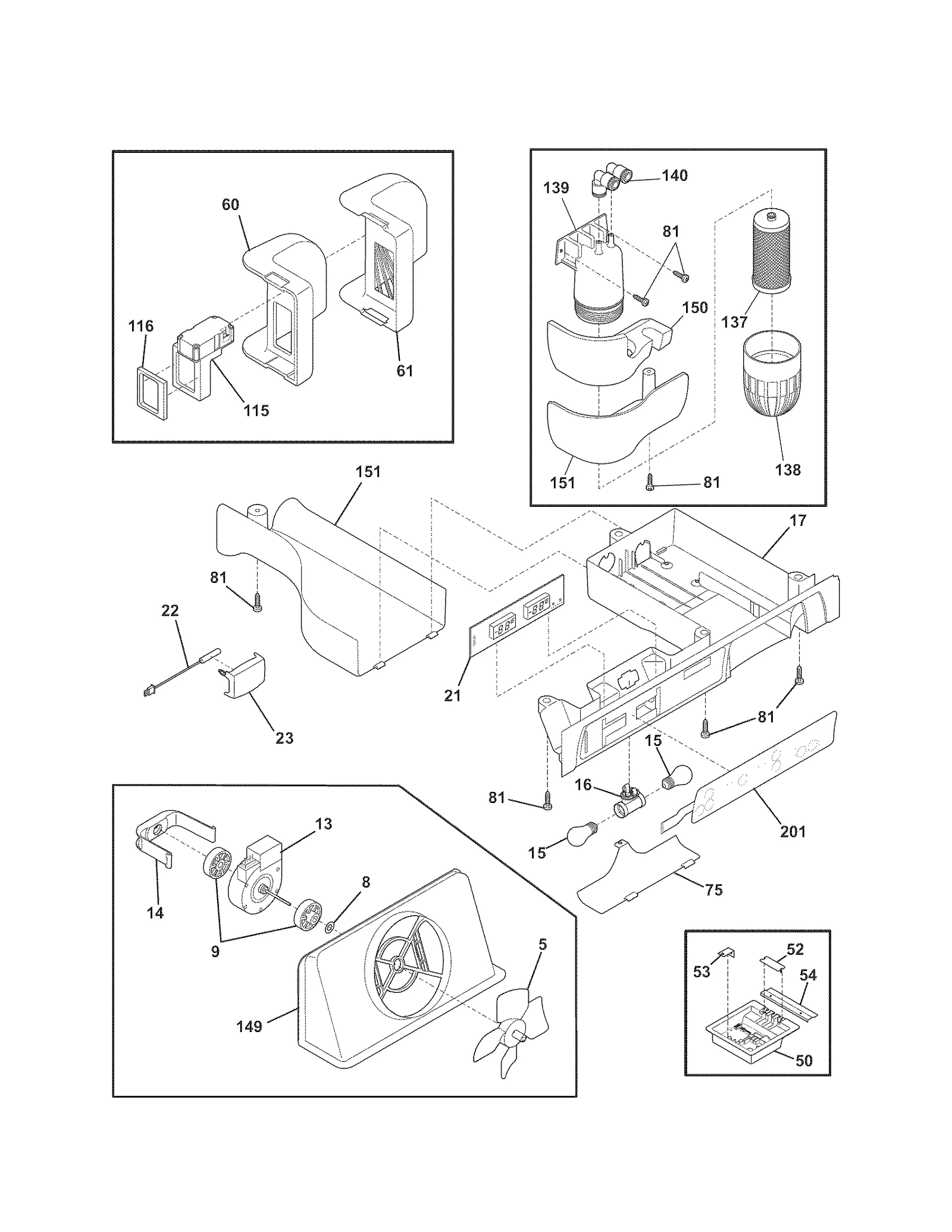

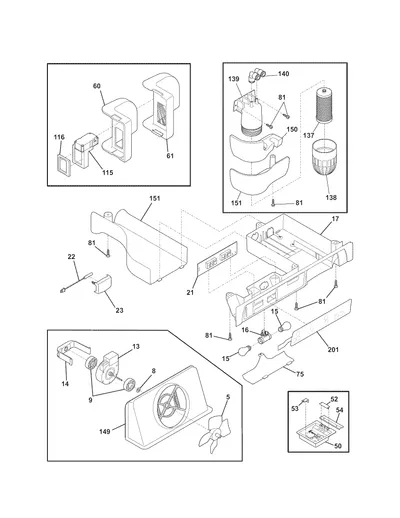

CONTROLS
Parts in CONTROLS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | Refrigerator Evaporator Fan Blade | $28.91 Part Advantage |
| 8 |  | Ikea Refrigerator Evaporator Fan Shaft Washer | $13.13 Parts Dr |
| 9 |  | Universal/Multiflex (Frigidaire) Refrigerator Evaporator Fan Motor Grommet | $43.18 Parts Dr |
| 13 |  | 809069220replaces 241509401 Refrigerator Motor | $73.14 Part Advantage |
| 14 |  | 242135301replaces 241517701 Refrigerator Clip | $6.48 RepairClinic |
| 15 |  | 5304517886replaces 241552801 Refrigerator Light Bulb | $39.73 Part Advantage |
| 16 |  | 241622802replaces 241507803 Refrigerator Light Socket | $40.08 Parts Dr |
| 17 | | Refrigerator Box | - |
| 21 |  | 240596804replaces 240596801 Refrigerator Control | $131.49 Parts Dr |
| 22 |  | 240597220replaces 240597201 Refrigerator Sensor | $2.76 Part Advantage |
| 23 |  | Cover Sensor | - |
| 50 |  | Refrigerator Electronic Control Board | - |
| 52 | | Clip Seal | Discontinued |
| 53 | | 241511101replaces 241509101 Refrigerator Main Power Board | - |
| 54 |  | Refrigerator Wire Harness Channel | - |
| 60 |  | 241510301replaces 241510401 Diffuser | $43.65 ApplianceParts Pro |
| 61 | | 241510301replaces 241511201 Refrigerator Cover Assembly | $43.65 ApplianceParts Pro |
| 75 | | 241517802replaces 241517801 Refrigerator Shield | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 115 |  | 5303918899replaces 241518501 Refrigerator Air Damper | $41.85 Part Advantage |
| 116 |  | Universal/Multiflex (Frigidaire) Refrigerator Air Damper Gasket | $5.32 Part Advantage |
| 137 |  | Refrigerator Water Filter Wrench | $2.66 Part Advantage |
| 137 |  | WFCBreplaces 9913 Kenmore Refrigerator Water Filter | $25.07 Parts Dr |
| 138 |  | 240434401replaces 240434403 Refrigerator Water Filter Cap | $43.88 Part Advantage |
| 139 |  | Refrigerator Water Filter Housing | $43.04 Part Advantage |
| 140 |  | Refrigerator Water Tube Fitting | $42.65 Part Advantage |
| 149 | | 242204504replaces 241517601 Refrigerator Shroud Evaporator | $44.23 PartSelect |
| 149 | – | 241528301 Refrigerator Seal | - |
| 150 |  | 240394102NLA Refrigerator Water Filter Cover Insulation | Discontinued |
| 151 | | Refrigerator Water Filter Cover | - |
| 158 | | 241505001NLA Refrigerator Water Cover | Discontinued |
| 201 | | 240598702NLA Refrigerator Control Membrane Switch | Discontinued |
| NI | | 241510301replaces 241510501 Refrigerator Cover Assembly | $43.65 ApplianceParts Pro |
| NI |  | 241510802replaces 241510801 Wiring Harness | $35.95 ApplianceParts Pro |
| NI | – | 241524801 Refrigerator Main Power Board | - |
| NI | | Refrigerator Seal | Discontinued |
| NI | | Refrigerator Guard | $59.32 ApplianceParts Pro |
