Model
Kenmore 253.50689000
Side-By-Side Refrigerator (Kenmore 25350689000)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.50689000Side-By-Side Refrigerator (Kenmore 25350689000)
10 diagrams391 parts

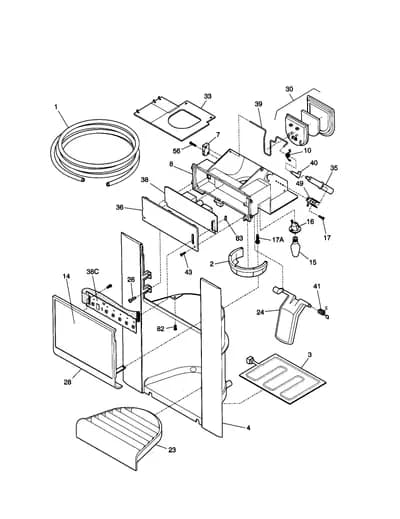

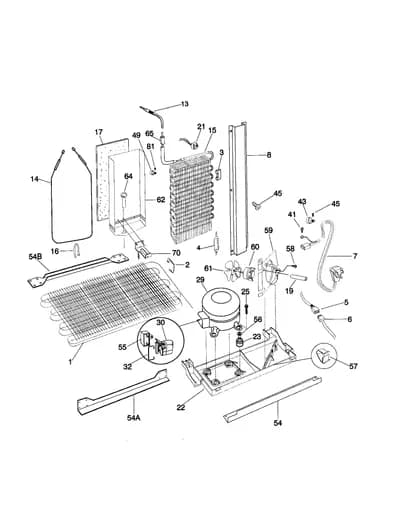

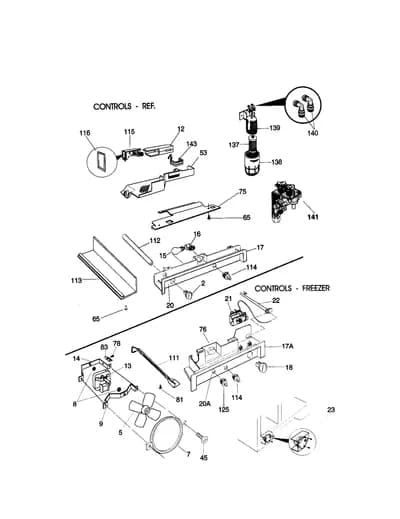

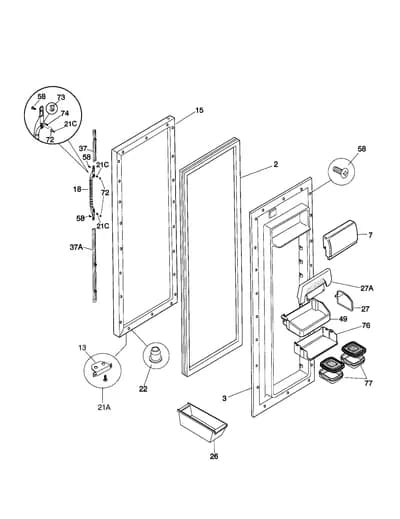

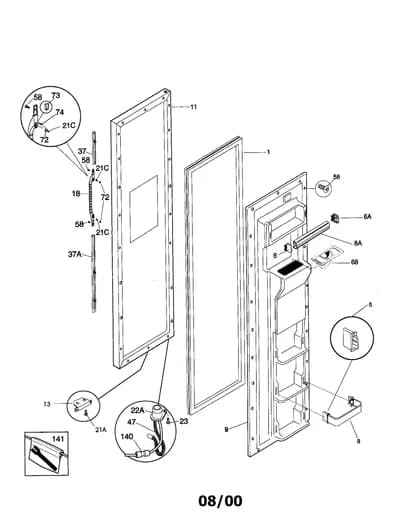

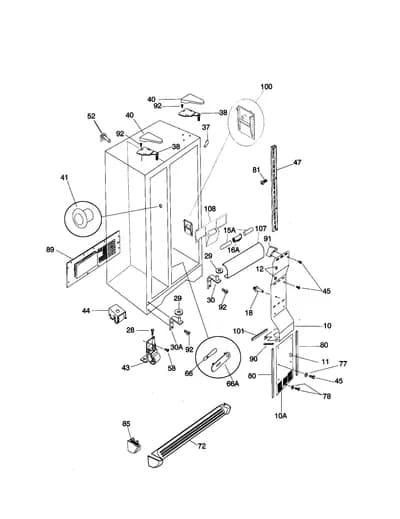

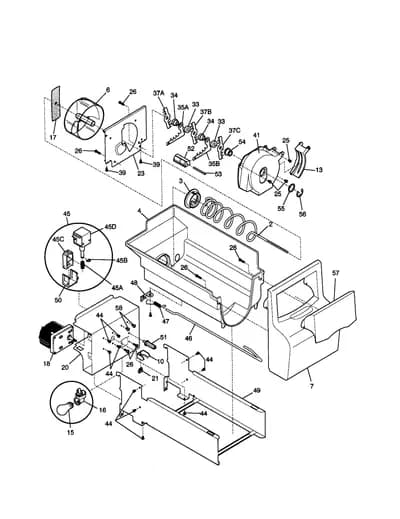

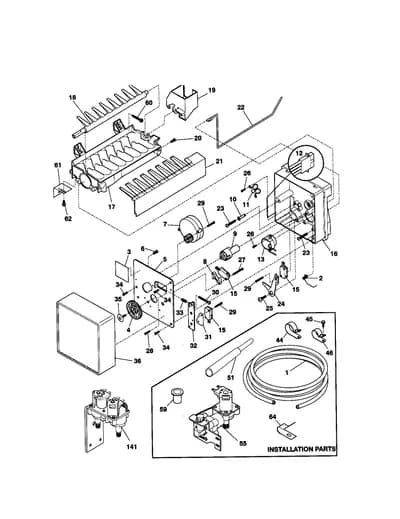

Parts Sections (10)
Diagram

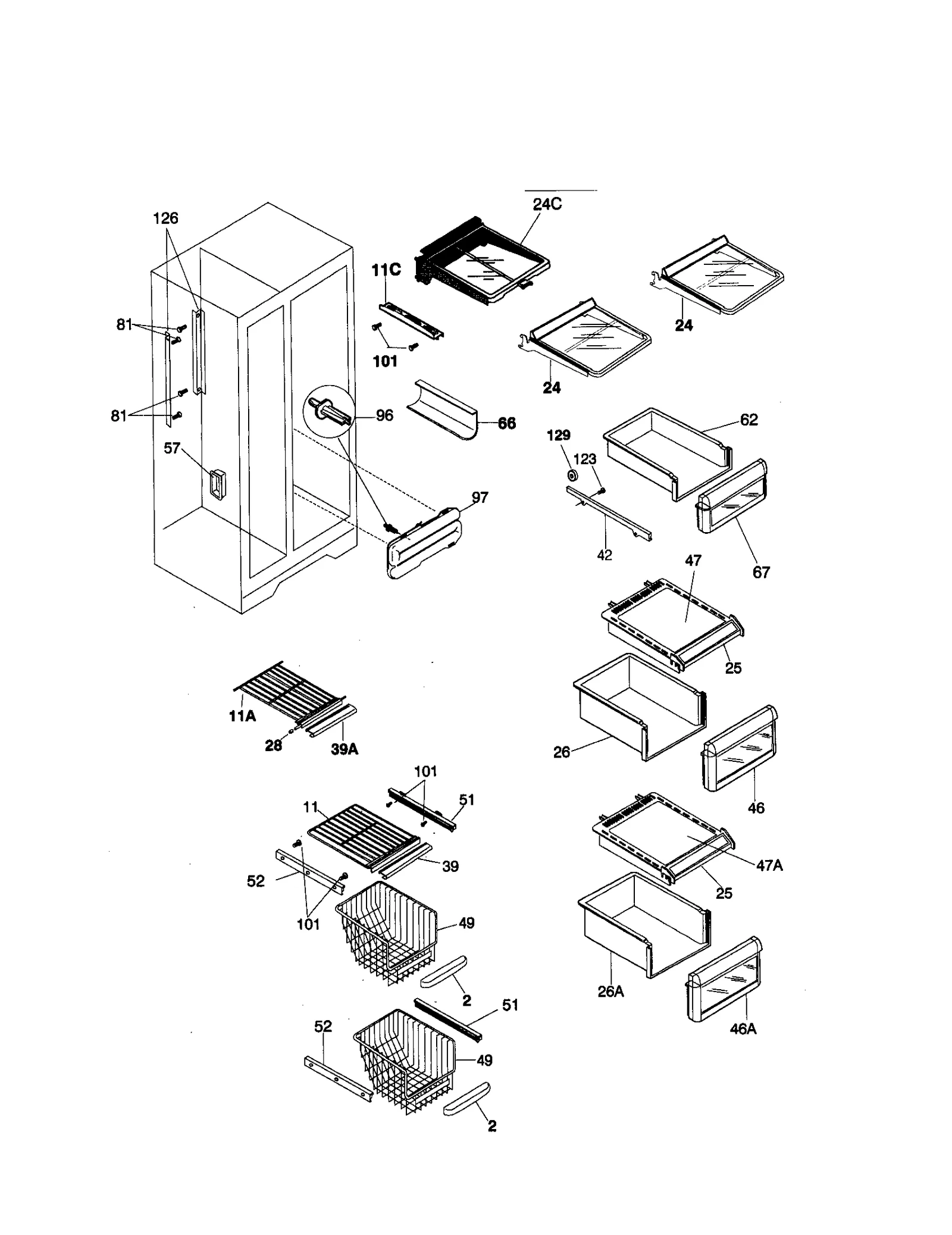

SHELVES
Parts in SHELVES
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 5303298147 Refrigerator Basket Trim | - |
| 11 |  | Refrigerator Freezer Shelf | - |
| 11A | – | 5304405879 Refrigerator Freezer Shelf | - |
| 11C |  | Refrigerator Freezer Pizza Shelf | $41.46 RepairClinic |
| 24 | – | 215029007 Refrigerator Shelf | - |
| 24C | – | 218842401 Aspect Shelf | - |
| 24CA | | 215328300replaces 218826700 Refrigerator Shelf Clip | $5.76 RepairClinic |
| 24CB | – | 218836901 Refrigerator Spill Shelf | - |
| 24CD | – | 218841001 Shelf Knob | - |
| 25 |  | 218147701NLA Refrigerator Drawer Cover | Discontinued |
| 25A | | 5304475373replaces 5303289586 Trim-storage | - |
| 25B | – | 5303323279 Trim Storage | - |
| 25C |  | 5303307715replaces 5303301393 Refrigerator Humidity Control | $49.24 ApplianceParts Pro |
| 26 |  | 5303289500replaces 5303299657 Storage Pan | $95.18 Part Advantage |
| 26A |  | Refrigerator Crisper Drawer | $89.80 Part Advantage |
| 28 | | Refrigerator Cap | $2.35 RepairClinic |
| 39 | | Refrigerator Freezer Shelf Trim | - |
| 39A | – | 215217558 Refrigerator Shelf Trim | - |
| 42 | | 215002301NLA Refrigerator Deli Drawer Hanger | Discontinued |
| 42A | | 215002401NLA Refrigerator Deli Drawer Slide Rail | Discontinued |
| 46 |  | 5304411659replaces 218278206 Refrigerator Pan | $111.62 Parts Dr |
| 46A | | 5304411659replaces 218278205 Refrigerator Trim Cover | $111.62 Parts Dr |
| 47 | | Refrigerator Glass Shelf | Discontinued |
| 47A | | Crisper Insert | Discontinued |
| 49 | | Refrigerator Sliding Basket | - |
| 51 | | 5303296575NLA Refrigerator Freezer Basket Support Rail | Discontinued |
| 52 |  | Refrigerator Freezer Drawer Slide Rail | $80.31 RepairClinic |
| 52A |  | Refrigerator Freezer Basket Hanger, Left | - |
| 57 | | Inner Ferrule | - |
| 62 | | Refrigerator Deli Tray | - |
| 66 | | 5304402116NLA Refrigerator Wine Rack | Discontinued |
| 67 | | 218278503NLA Strg Pan Frt | Discontinued |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 96 |  | Refrigerator Water Reservoir Support | - |
| 97 |  | 5303918258replaces 218942701 Refrigerator Water Tank | $69.61 Part Advantage |
| 101 | | 5304455650replaces 215005000 Refrigerator Screw | $10.31 Parts Dr |
| 123 |  | 215005101replaces 215005100 Refrigerator Screw Roller | $9.25 Parts Dr |
| 126 |  | 241674401replaces 218867401 Refrigerator Channel | $34.95 ApplianceParts Pro |
| 126A |  | 241674402replaces 218867402 Refrigerator Channel | - |
| 129 | | 5303299152NLA Refrigerator Deli Drawer Roller | Discontinued |
| 129A | | Refrigerator Drawer Roller Bearing | $5.49 RepairClinic |
