Model
Kenmore 253.51232106
Side-By-Side Refrigerator (Kenmore 25351232106)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.51232106Side-By-Side Refrigerator (Kenmore 25351232106)
10 diagrams320 parts
Parts Sections (10)

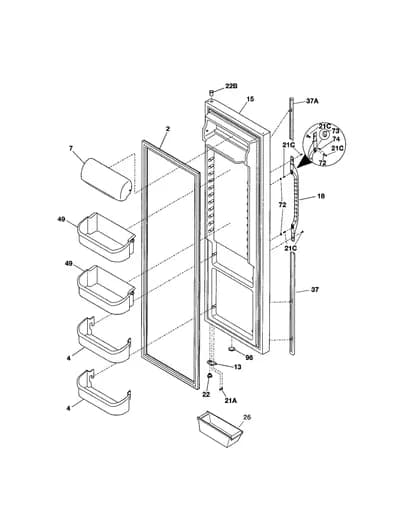

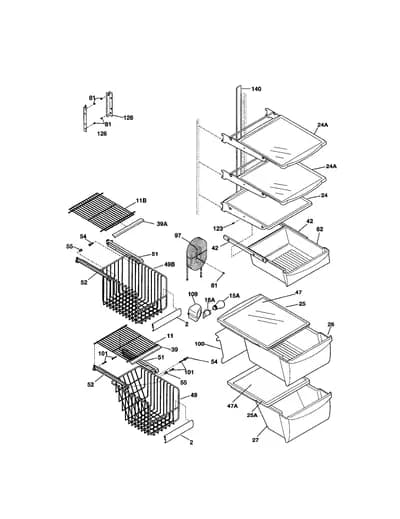

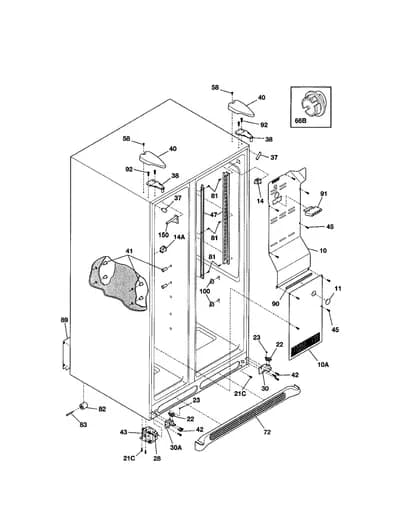

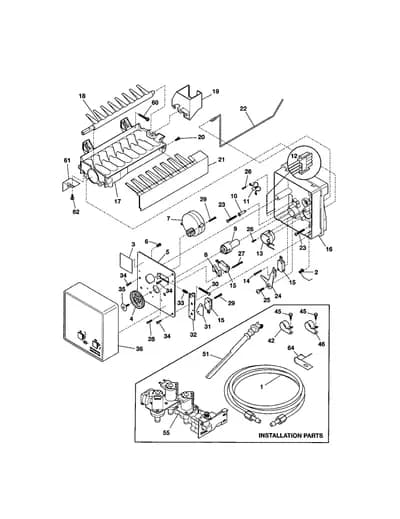

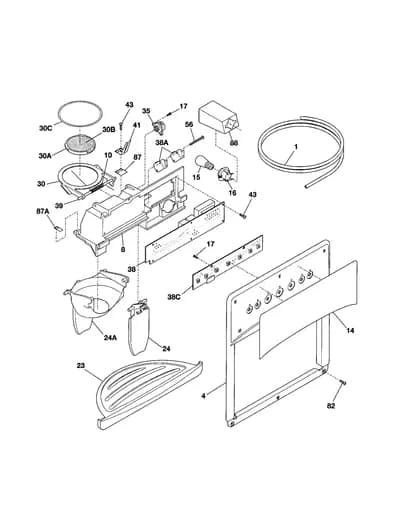

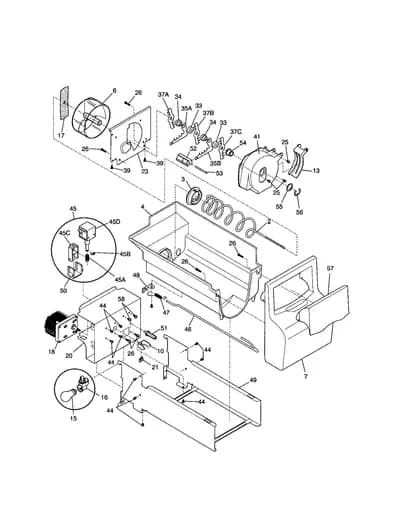

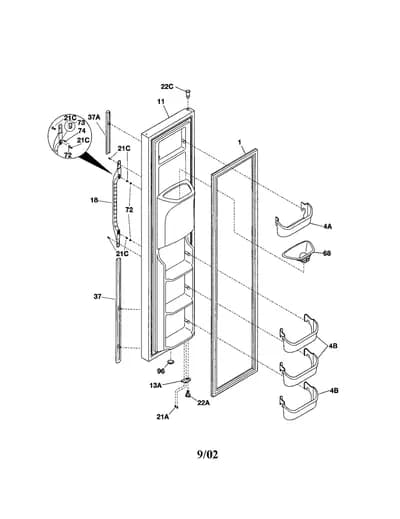

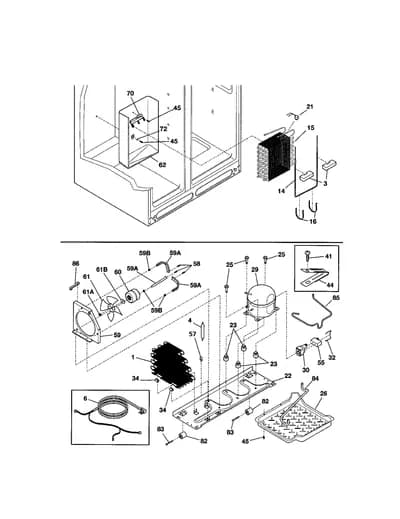

Diagram

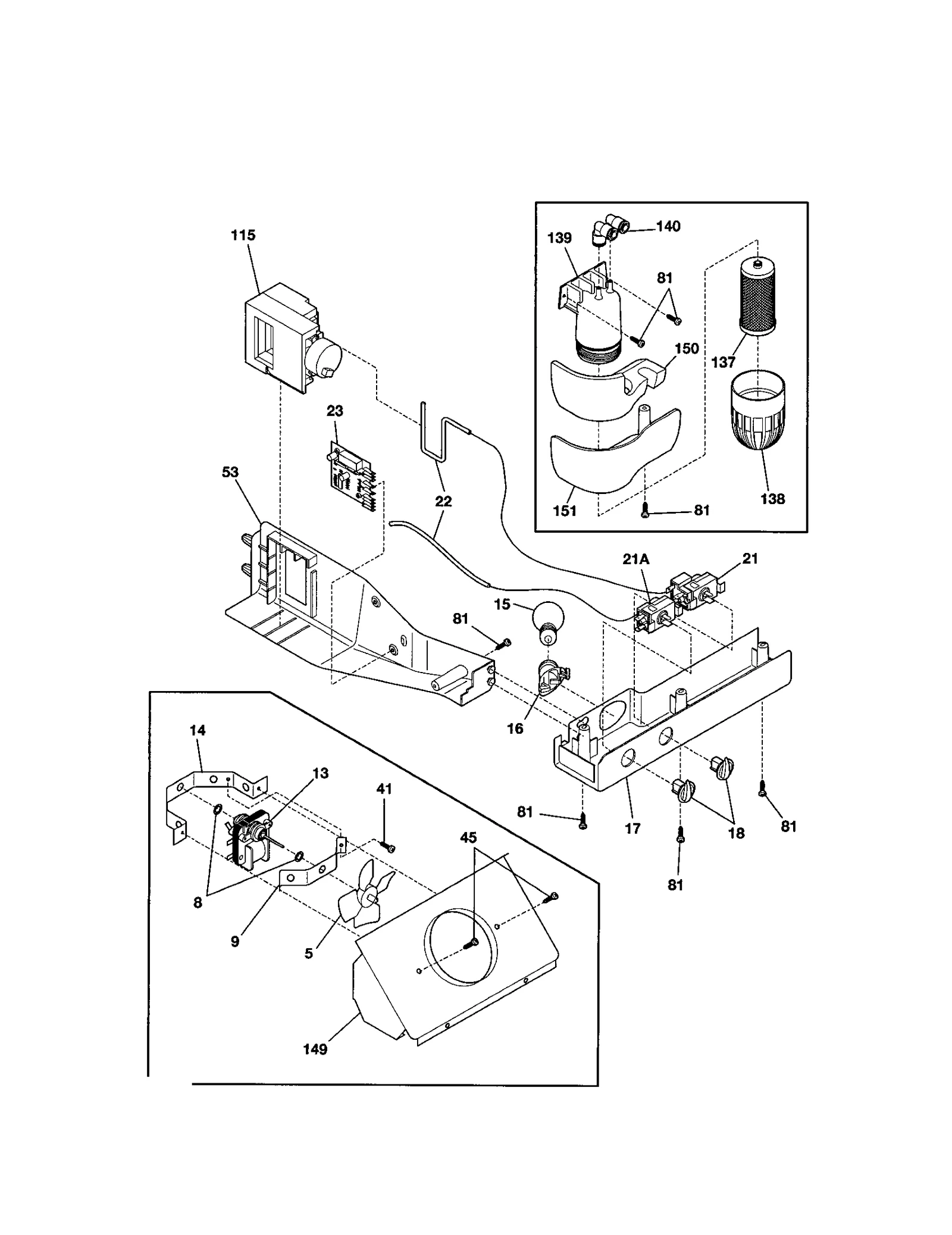

CONTROLS
Parts in CONTROLS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | Refrigerator Evaporator Fan Blade | $28.91 Part Advantage |
| 8 |  | Refrigerator Bushing | Discontinued |
| 9 |  | 5303292396NLA Refrigerator Evaporator Fan Motor Bracket, Front | Discontinued |
| 13 |  | 5303918549replaces 240315803 Evaporator Motor | $41.09 Part Advantage |
| 13A |  | Ikea Refrigerator Evaporator Fan Shaft Washer | $13.13 Parts Dr |
| 14 |  | 240438003replaces 5303292397 Refrigerator Evaporator Fan Motor Bracket, Rear | $12.29 RepairClinic |
| 15 |  | 316538904replaces 240436702 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16 |  | 218906802replaces 218906801 Refrigerator Light Socket | $10.24 Part Advantage |
| 17 | – | 240374005 Refrigerator Box | - |
| 17A | – | 240556902 Refrigerator Control Wiring Harness | - |
| 18 |  | 240360801NLA Refrigerator Temperature Control Knob | Discontinued |
| 21 | – | 240448304 Refrigerator Thermostat | - |
| 21A |  | 5304496561replaces 5304429602 Refrigerator Temperature Control | $80.91 Part Advantage |
| 22 |  | 218660704replaces 218660702 Insulation Tube | - |
| 23 |  | 240554502NLA Refrigerator Defrost Control Board | Discontinued |
| 23A |  | 5304455649replaces 5303001259 Refrigerator Screw | $12.95 ApplianceParts Pro |
| 41 |  | Refrigerator Evaporator Motor Screw | $9.95 ApplianceParts Pro |
| 45 |  | 241500305replaces 241500301 Refrigerator Lower Evaporator Cover Screw | $1.66 Part Advantage |
| 53 | – | 240549101 Refrigerator Control Box | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 115 |  | 241600902replaces 240521106 Refrigerator Damper Assembly | $134.84 Part Advantage |
| 115A | – | 5304421593 Switch-mic | - |
| 137 |  | Refrigerator Water Filter Wrench | $2.66 Part Advantage |
| 137A |  | WFCBreplaces 9910 Genuine Kenmore Refrigerator Water Filter | $25.07 Parts Dr |
| 138 |  | Water Cup | Discontinued |
| 138A |  | Refrigerator Water Filter Cup O-Ring | $7.48 Part Advantage |
| 139 | | Refrigerator Filter Housing | Discontinued |
| 140 |  | 240545201replaces 240388601 Water Elbow | $42.65 Part Advantage |
| 149 | – | 240331601 Evaporator Fan Shroud | - |
| 150 |  | 240394102NLA Refrigerator Water Filter Cover Insulation | Discontinued |
| 151 | | Refrigerator Water Filter Cover | - |
