Kenmore 253.51394101
Side-By-Side Refrigerator (Kenmore 25351394101)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.51394101Side-By-Side Refrigerator (Kenmore 25351394101)
10 diagrams323 parts
Parts Sections (10)

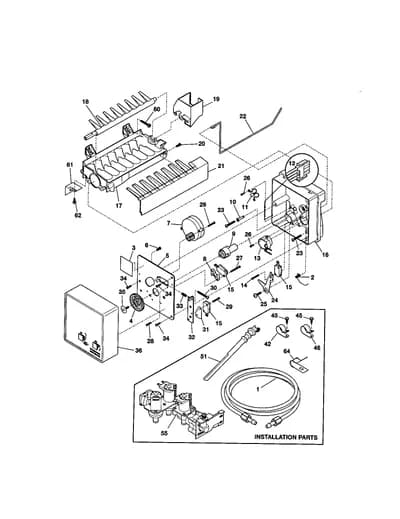

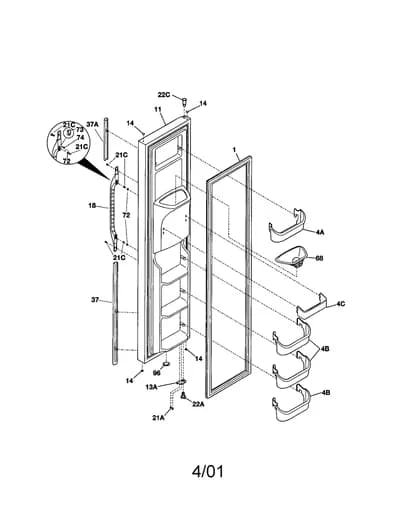

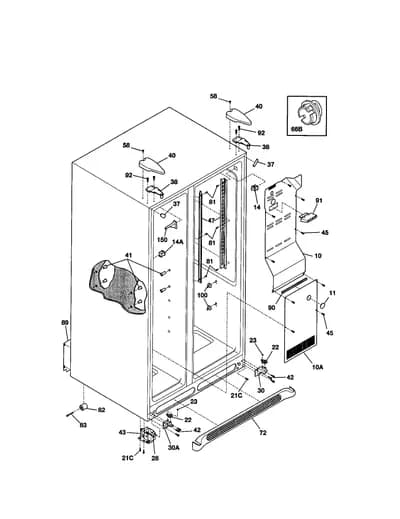

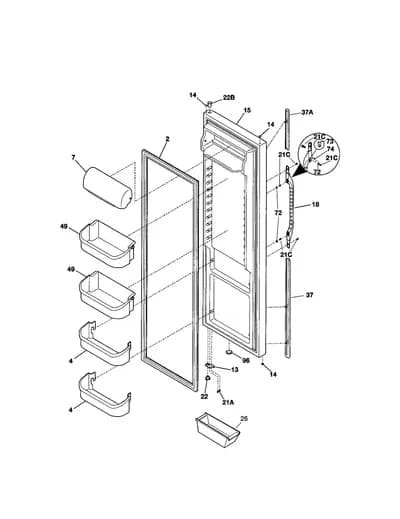

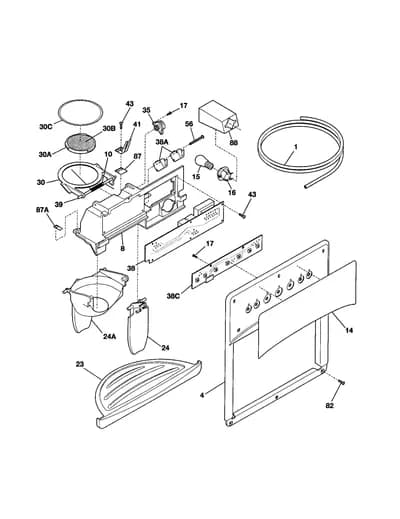

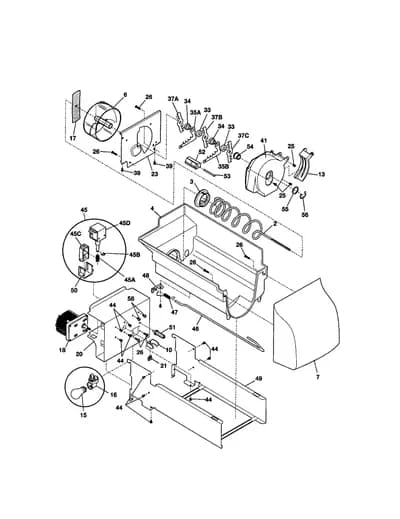

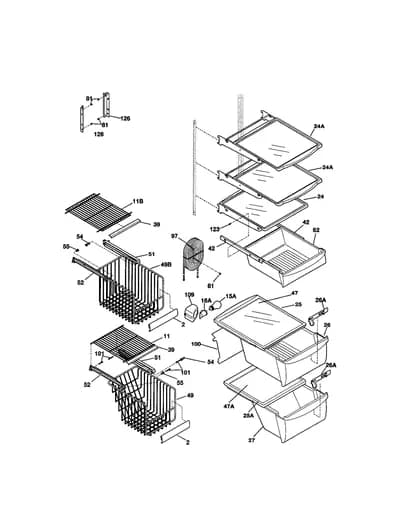

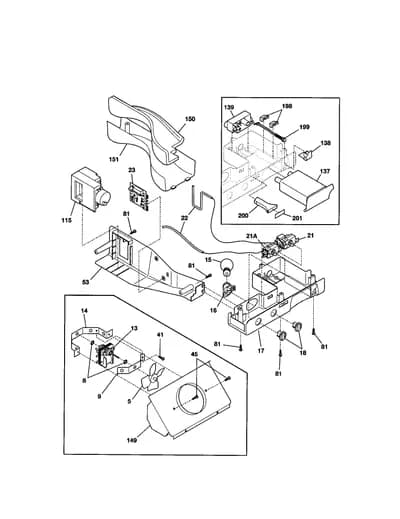

Diagram

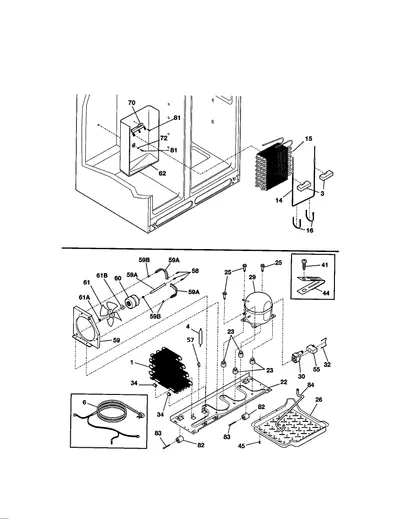

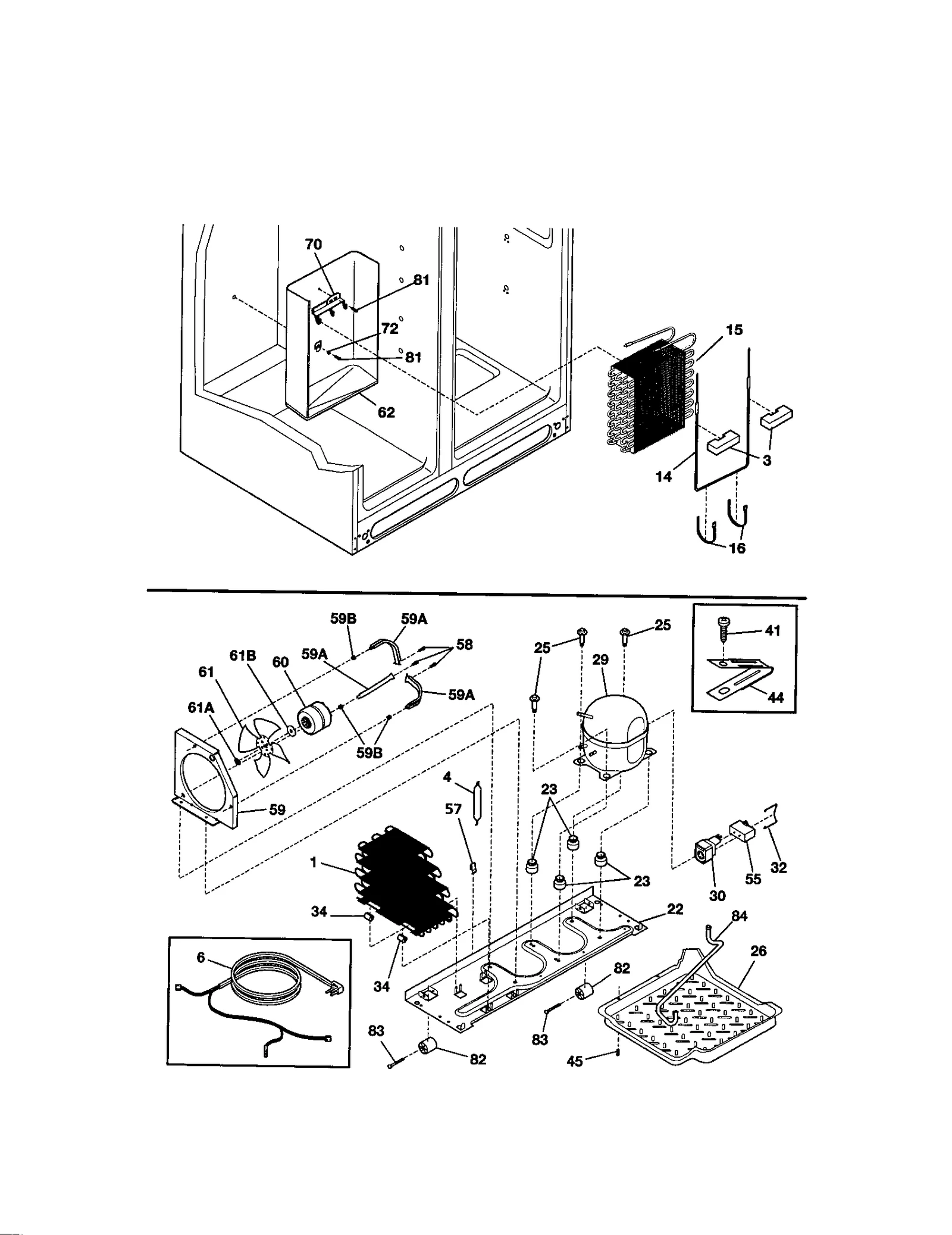

SYSTEM
Parts in SYSTEM
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 240333602NLA Refrigerator Condenser | Discontinued |
| 1A |  | 240409302replaces 240409301 Refrigerator Spacer Control | $46.72 ApplianceParts Pro |
| 3 |  | 218679613replaces 218679606 Block Evaporator | - |
| 4 |  | 5303305677replaces 218944001 Refrigerator Filter Drier | $13.17 Parts Dr |
| 6 | | 240346402replaces 240346401 Refrigerator Wiring Harness | - |
| 6A | – | 240315901 Refrigerator Wiring Harness | - |
| 14 | | Defrost Heater | - |
| 15 |  | 5303918286replaces 5303918211 Refrigerator Evaporator | $233.88 Part Advantage |
| 16 |  | Refrigerator Strap | $35.21 Parts Dr |
| 22 | – | 240330002 Complete Plate | - |
| 23 |  | Refrigerator Compressor Grommet | $24.59 Part Advantage |
| 25 | | Complete Screw | Discontinued |
| 26 |  | 241697603replaces 240332602 Refrigerator Defrost Pan | $50.49 Parts Dr |
| 29 |  | 5304511983replaces 5303918251 Refrigerator Compressor | $501.50 Parts Dr |
| 30 |  | 5304491941replaces 218721119 Refrigerator Start Relay | $68.54 Part Advantage |
| 32 |  | Electrolux Refrigerator Start Relay Retainer Clip | - |
| 34 |  | Refrigerator Condenser Coil Grommet | $15.28 ApplianceParts Pro |
| 41 | – | 218897001 Refrigerator Screw | - |
| 44 |  | Refrigerator Wire Harness Clamp | - |
| 45 |  | 5304455651replaces 5303001343 Screw | $7.77 Part Advantage |
| 55 |  | 5304464438replaces 218909901 Chest Freezer Run Capacitor | $18.41 Part Advantage |
| 57 |  | 240542601replaces 240403601 Wiring Clip | - |
| 58 | | Refrigerator Door Inner Liner Screw | - |
| 59 | | Shroud Control | - |
| 59A |  | Refrigerator Condenser Fan Motor Bracket | $8.74 RepairClinic |
| 59B | | Grommet Bracket | - |
| 59C |  | 240359403replaces 240359401 Fan Screw | - |
| 59D |  | Tappan Refrigerator Foam Tape | $21.46 Parts Dr |
| 60 |  | 5303918774replaces 240334001 Refrigerator Condenser Motor | $101.83 Part Advantage |
| 61 | | Refrigerator Condenser Fan Blade | - |
| 61A | | Refrigerator Nut | - |
| 61B | | Grommet | - |
| 62 | | Trough-dra | - |
| 70 |  | Bracket Evaporator | - |
| 72 |  | Refrigerator Door Handle Mounting Grommet | - |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 82 |  | Refrigerator Roller | $27.78 Parts Dr |
| 83 |  | 5304455655replaces 215164200 Refrigerator Roller Pin | $22.41 Parts Dr |
| 84 |  | 241957901replaces 5304421068 Refrigerator Drain Tube | $41.01 Parts Dr |
