Model
Kenmore 253.51394102
Side-By-Side Refrigerator (Kenmore 25351394102)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.51394102Side-By-Side Refrigerator (Kenmore 25351394102)
9 diagrams345 parts
Parts Sections (9)

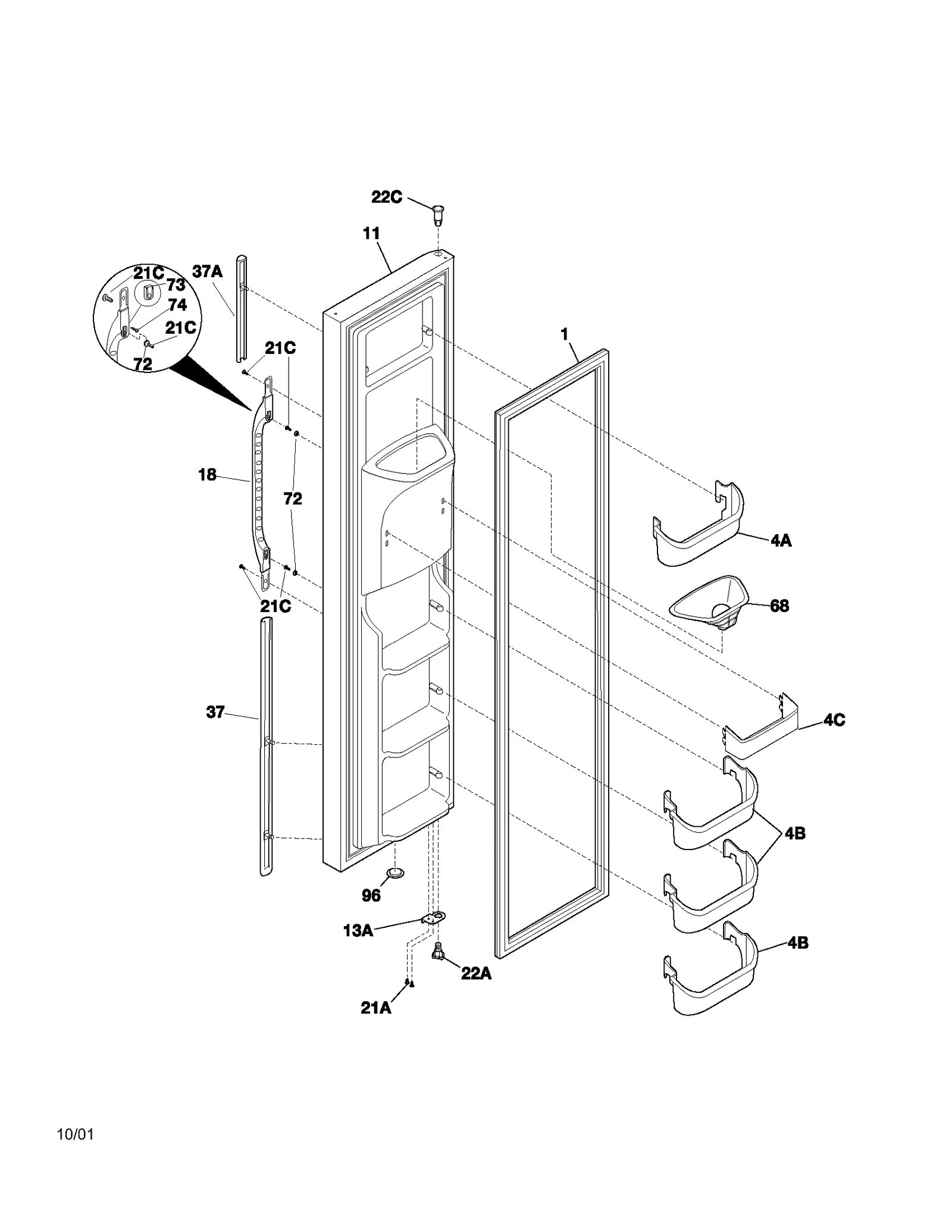

Diagram
FREEZER DOOR
Parts in FREEZER DOOR
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 241786016replaces 240390604 Refrigerator Gasket | $52.43 ApplianceParts Pro |
| 1 | | 241786016replaces 240390608 Refrigerator Gasket | $52.43 ApplianceParts Pro |
| 4A |  | Refrigerator Freezer Door Bin, Upper | $29.29 Parts Dr |
| 4B |  | Refrigerator Freezer Door Shelf Rail | $32.76 Part Advantage |
| 4C | | Refrigerator Door Bin | - |
| 11 | – | 240451840 Refrigerator Freezer Door | - |
| 11 | – | 240451841 Refrigerator Freezer Door | - |
| 11 | – | 240451842 Refrigerator Freezer Door | - |
| 13A |  | 5303918455replaces 240456902 Refrigerator Door Stop | $81.30 Part Advantage |
| 13A | | 5303918455replaces 240456904 Refrigerator Door Stop | $81.30 Part Advantage |
| 13A | | 5303918455replaces 240456906 Refrigerator Door Stop | $81.30 Part Advantage |
| 18 |  | 297272500replaces 218803901 Upright Freezer Door Handle (White) | $45.51 Part Advantage |
| 18 | | Refrigerator Door Handle (Gray) | Discontinued |
| 18 | – | 218803904 Handle Ff &f | - |
| 21A |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 21C |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 22A |  | 242000501replaces 240328202 Hinge Bearing | $5.39 ApplianceParts Pro |
| 22C |  | Refrigerator Door Hinge Bushing | $15.28 ApplianceParts Pro |
| 22C |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 37 |  | Freezer Door Handle Trim, Lower | - |
| 37 | | 218779320NLA Refrigerator Door Handle Trim, Lower (Black) | Discontinued |
| 37 | | Refrigerator Freezer Door Handle Trim, Lower (Bisque) | - |
| 37A | | 218776501replaces 218776600 Tri Snap | - |
| 37A | | Refrigerator Door Handle Trim, Upper (White) | - |
| 37A | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 37A | | Refrigerator Handle Trim | - |
| 68 |  | 241525101replaces 240465801 Refrigerator Ice Chute | $56.95 ApplianceParts Pro |
| 72 |  | Refrigerator Dovetail | - |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| 96 | | Refrigerator Freezer Door Foam Hole Plug (White) | - |
| 96 | | Refrigerator Foam Plug | - |
| NI | | Refrigerator Wiring Harness | - |
| NI |  | 240545201replaces 240352101 Refrigerator Connector | $42.65 Part Advantage |
| NI |  | Refrigerator Dispenser Heater | $315.20 Parts Dr |
