Model
Kenmore 253.51394105
Side-By-Side Refrigerator (Kenmore 25351394105)

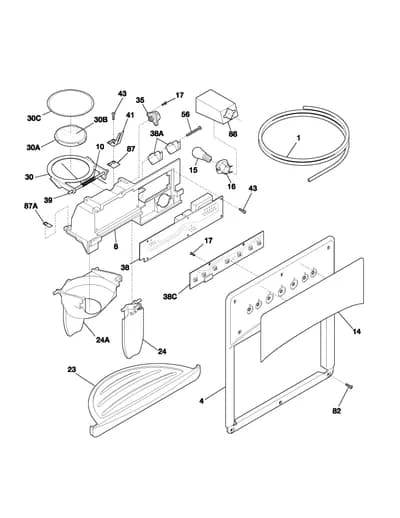

Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.51394105Side-By-Side Refrigerator (Kenmore 25351394105)
9 diagrams350 parts
Parts Sections (9)
Diagram

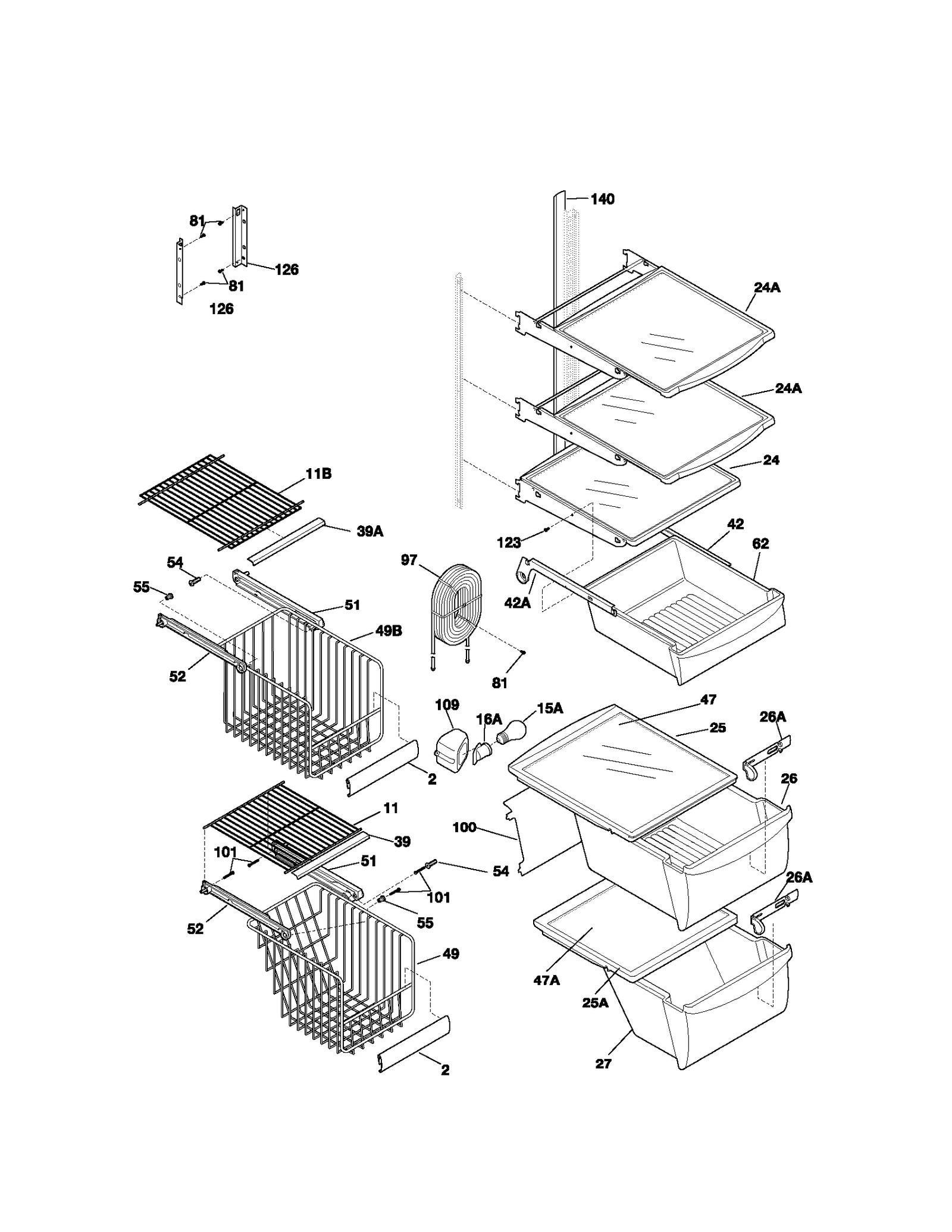

SHELVES
Parts in SHELVES
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241510603replaces 240434603 Refrigerator Trim | - |
| 11 |  | 241657601replaces 240338801 Refrigerator Freezer Shelf | $51.34 Parts Dr |
| 11B |  | 5304532464replaces 240338703 Refrigerator Freezer Shelf | $53.20 PartSelect |
| 15A |  | 316538904replaces 240436702 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16A |  | 218906802replaces 218906801 Refrigerator Light Socket | $10.24 Part Advantage |
| 24 | | 240349510replaces 240355216 Refrigerator Shelf | - |
| 24A | | 240350121replaces 240350112 Refrigerator Spill-Safe Shelf | - |
| 25 |  | Refrigerator Drawer Cover | $50.86 Part Advantage |
| 25A |  | Refrigerator Crisper Drawer Cover Frame, Lower | $55.89 Parts Dr |
| 26 |  | 240354723replaces 240354709 Refrigerator Crisper Pan | $79.18 Part Advantage |
| 26A |  | Refrigerator Crisper Drawer Humidity Control | - |
| 27 |  | 240354805replaces 240354811 Refrigerator Crisper Drawer | $95.97 Part Advantage |
| 39 |  | 240430705NLA Refrigerator Shelf Trim | Discontinued |
| 39A | | Refrigerator Shelf Trim, Front | - |
| 42 |  | Frigidaire Refrigerator Deli Drawer Hanger, Right | $32.82 Part Advantage |
| 42A |  | Refrigerator Drawer Slide Rail | $39.15 Parts Dr |
| 42A | | Refrigerator Deli Drawer Hanger | - |
| 42A |  | Refrigerator Deli Drawer Slide Rail Spring | $41.11 RepairClinic |
| 47 |  | 240350613replaces 240350685 Refrigerator Insert | $74.19 Parts Dr |
| 47A |  | Refrigerator Crisper Drawer Cover Glass Insert | $85.35 Parts Dr |
| 49 | | 240530401NLA Refrigerator Freezer Basket | Discontinued |
| 49B | | 240530503NLA Refrigerator Freezer Basket, Upper | Discontinued |
| 51 |  | Refrigerator Freezer Basket Support Rail | $41.01 Parts Dr |
| 52 |  | Refrigerator Freezer Basket Support Rail | $42.27 Parts Dr |
| 54 | | 240343002replaces 240351901 Hanger Plug | $41.01 Parts Dr |
| 55 | | 240343102replaces 240352001 Hanger Plug | $42.27 Parts Dr |
| 62 |  | 240355527replaces 240355509 Refrigerator Meat Pan | $101.60 Part Advantage |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 97 |  | 240545302replaces 240453003 Refrigerator Tank | $165.84 Parts Dr |
| 100 |  | 240326303replaces 240326301 Refrigerator Water Cover | $45.39 ApplianceParts Pro |
| 101 |  | 218493101replaces 218493100 Refrigerator Basket Hanger Screw | $7.77 Part Advantage |
| 109 | | Refrigerator Crisper Lamp Socket Base | - |
| 123 |  | 215005101replaces 215005100 Refrigerator Screw Roller | $9.25 Parts Dr |
| 126 |  | 241674401replaces 218867401 Refrigerator Channel | $34.95 ApplianceParts Pro |
| 126 |  | 241674402replaces 218867402 Refrigerator Channel | - |
| 140 |  | Refrigerator Water Tube Cover | - |
| NI |  | Refrigerator Technical Data Sheet | $7.95 ApplianceParts Pro |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $11.08 Part Advantage |
| NI |  | Refrigerator Crisper Drawer Slide Clip | $25.41 Part Advantage |
| NI | – | 240389607 Service Data | - |
| NI |  | Refrigerator Owner's Manual | - |
| NI | – | 5995375614 Refrigerator Repair Parts List | - |
