Kenmore 253.51693100
Side-By-Side Refrigerator (Kenmore 25351693100)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.51693100Side-By-Side Refrigerator (Kenmore 25351693100)
10 diagrams298 parts

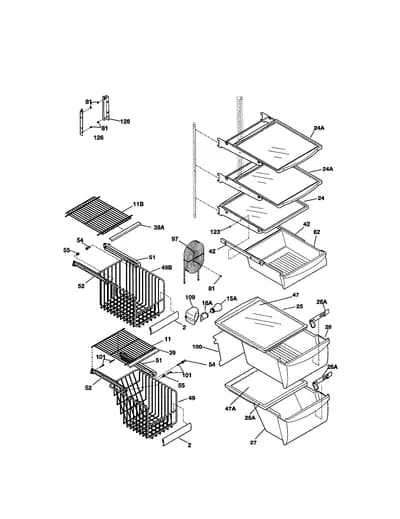

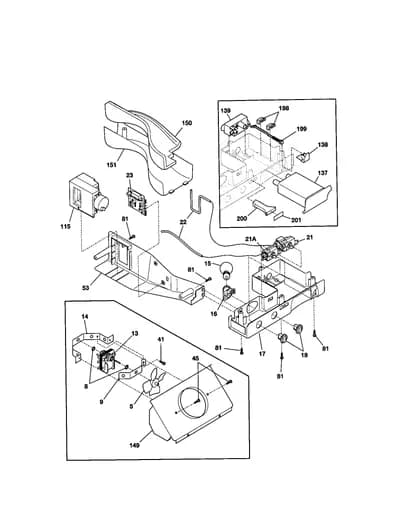

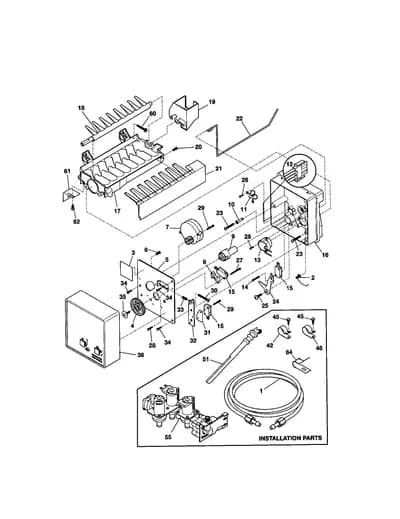

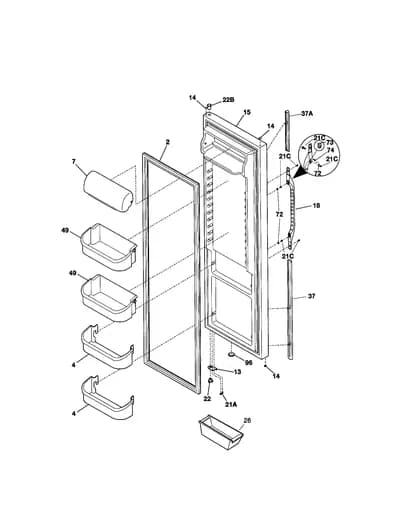

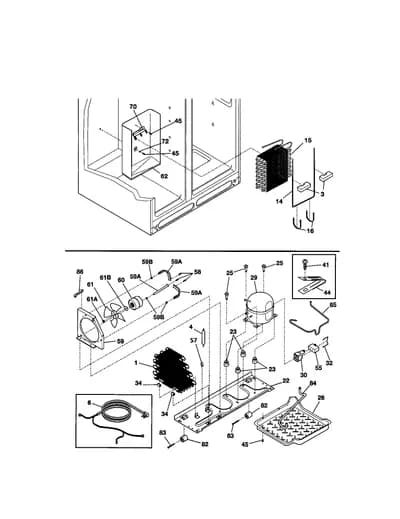

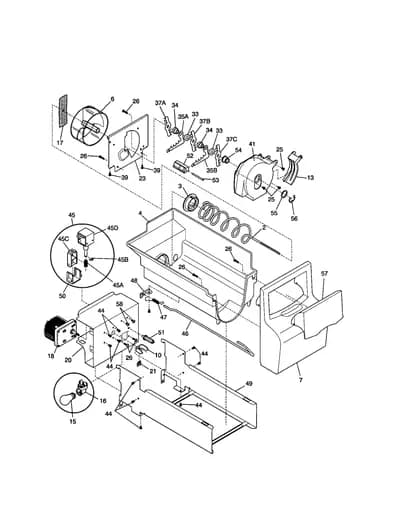

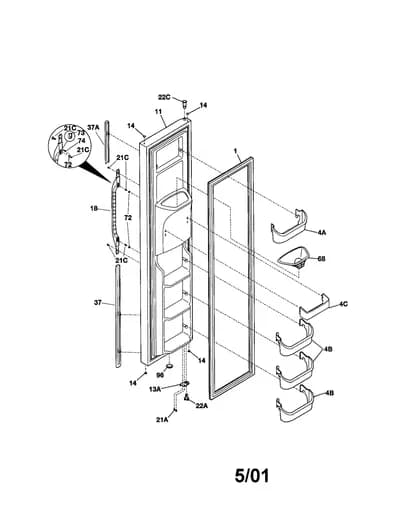

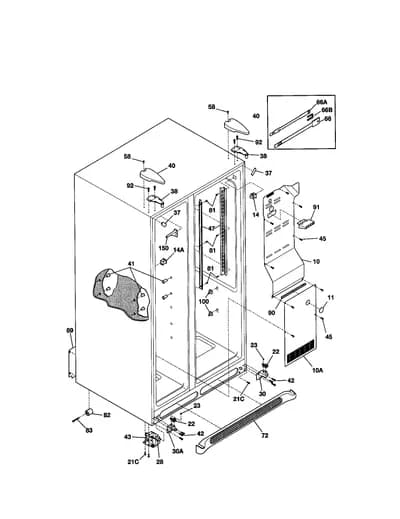

Parts Sections (10)
Diagram

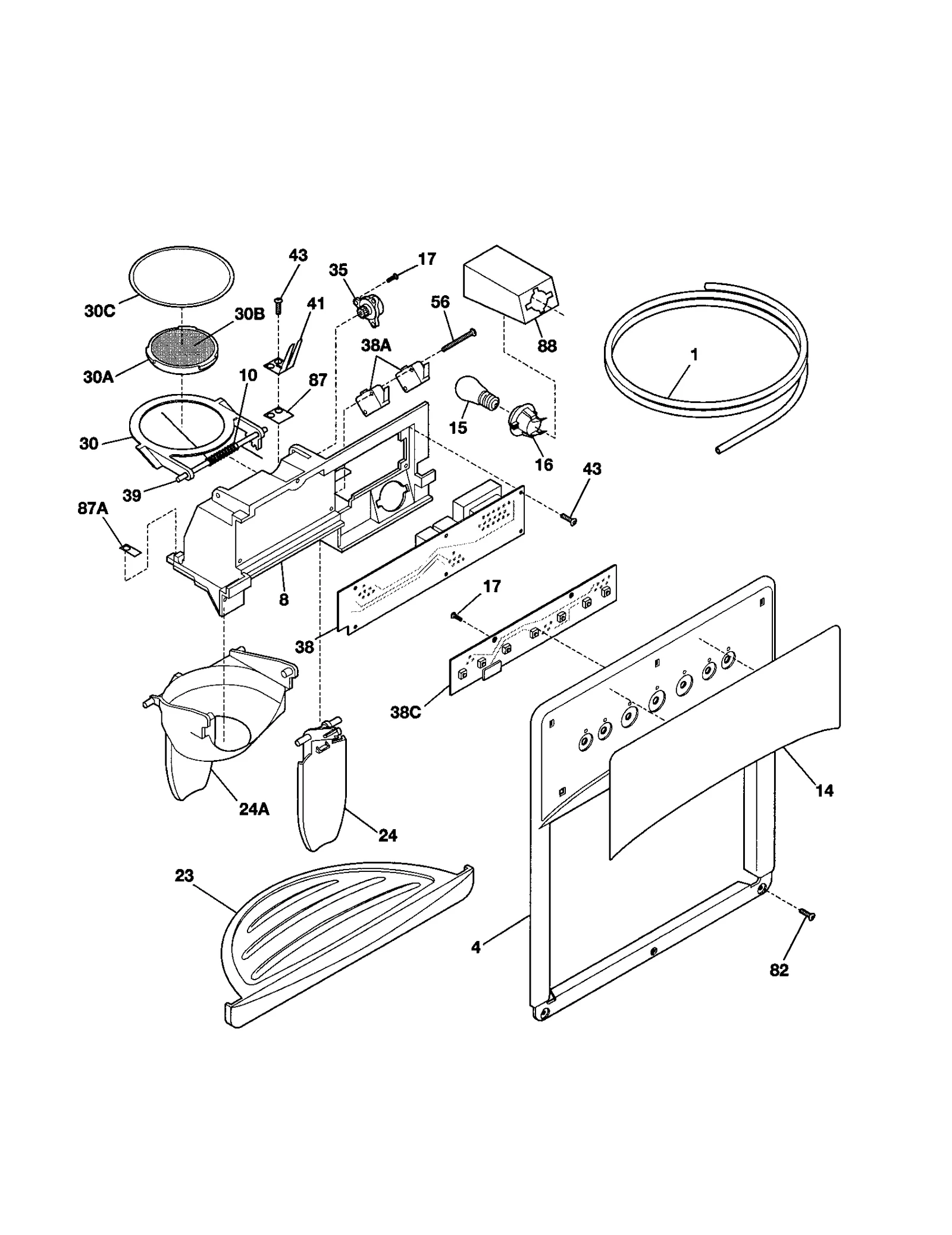

DISPENSER
Parts in DISPENSER
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 218976409replaces 218976405 Refrigerator Water Tube | $34.86 Part Advantage |
| 1A |  | Universal/Multiflex (Frigidaire) Refrigerator Inlet Valve to Ice Maker Water Tubing | $52.61 Parts Dr |
| 1B |  | Refrigerator Water Tubing | $45.44 Parts Dr |
| 1C | | Refrigerator Water Tubing | $34.86 Part Advantage |
| 1D |  | 218976907NLA Refrigerator Water Tubing | Discontinued |
| 4 | | 5304421643NLA Refrigerator Dispenser Cover (Black) | Discontinued |
| 8 | | Dispenser Module | Discontinued |
| 10 |  | 241688901replaces 5304421626 Refrigerator Torsion Spring | $13.10 Parts Dr |
| 14 |  | Refrigerator Dispenser Control Overlay (Black) | - |
| 15 |  | 5304519036replaces 5304421616 Refrigerator Light Bulb | $40.25 Parts Dr |
| 16 |  | 240548901replaces 215284900 Refrigerator Light Socket | $34.43 Part Advantage |
| 17 |  | 241679801replaces 5304421619 Refrigerator Screw | $10.70 ApplianceParts Pro |
| 23 |  | 241659103replaces 240411703 Refrigerator Drip Tray | - |
| 24 |  | 5304493024replaces 5304421637 Refrigerator Dispenser Actuator | $171.77 ApplianceParts Pro |
| 24A | | 5304493024replaces 5304421635 Refrigerator Dispenser Actuator | $171.77 ApplianceParts Pro |
| 30 |  | 241688401replaces 5304421628 Refrigerator Door Assembly | $28.71 Part Advantage |
| 30A |  | 241688501replaces 5304421624 Door Cente | $30.64 Part Advantage |
| 30B |  | 241688601replaces 5304421625 Refrigerator Insulation | $36.54 Part Advantage |
| 30C |  | 241688701replaces 5304421629 Refrigerator Door Seal | $22.27 Part Advantage |
| 35 |  | 241689301replaces 5304421620 Damper-rot | - |
| 38 | | 5304421633NLA Refrigerator PC Board | Discontinued |
| 38A |  | 241689106replaces 5304421617 Switch-mic | $4.62 Part Advantage |
| 38C |  | 241700104replaces 5304421640 Refrigerator Control Board | - |
| 39 |  | 241688801replaces 5304421627 Refrigerator Hinge Pin | $29.49 Parts Dr |
| 41 | – | 5304421623 Lead Spring | - |
| 43 |  | 5304453707replaces 240363401 Screw-#8-1 | $8.60 Part Advantage |
| 56 |  | 241689201replaces 5304421618 Screw-micr | $11.59 ApplianceParts Pro |
| 82 |  | Refrigerator Screw | Discontinued |
| 87 |  | 241688302replaces 5304421622 Bearing Pl | $13.23 Parts Dr |
| 87A |  | 241688301replaces 5304421621 Bearing Pl | $12.95 Parts Dr |
| 88 | | 241686101replaces 5304421615 Light Shield | - |
