Model
Kenmore 253.51693104
Side-By-Side Refrigerator (Kenmore 25351693104)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.51693104Side-By-Side Refrigerator (Kenmore 25351693104)
9 diagrams312 parts
Parts Sections (9)

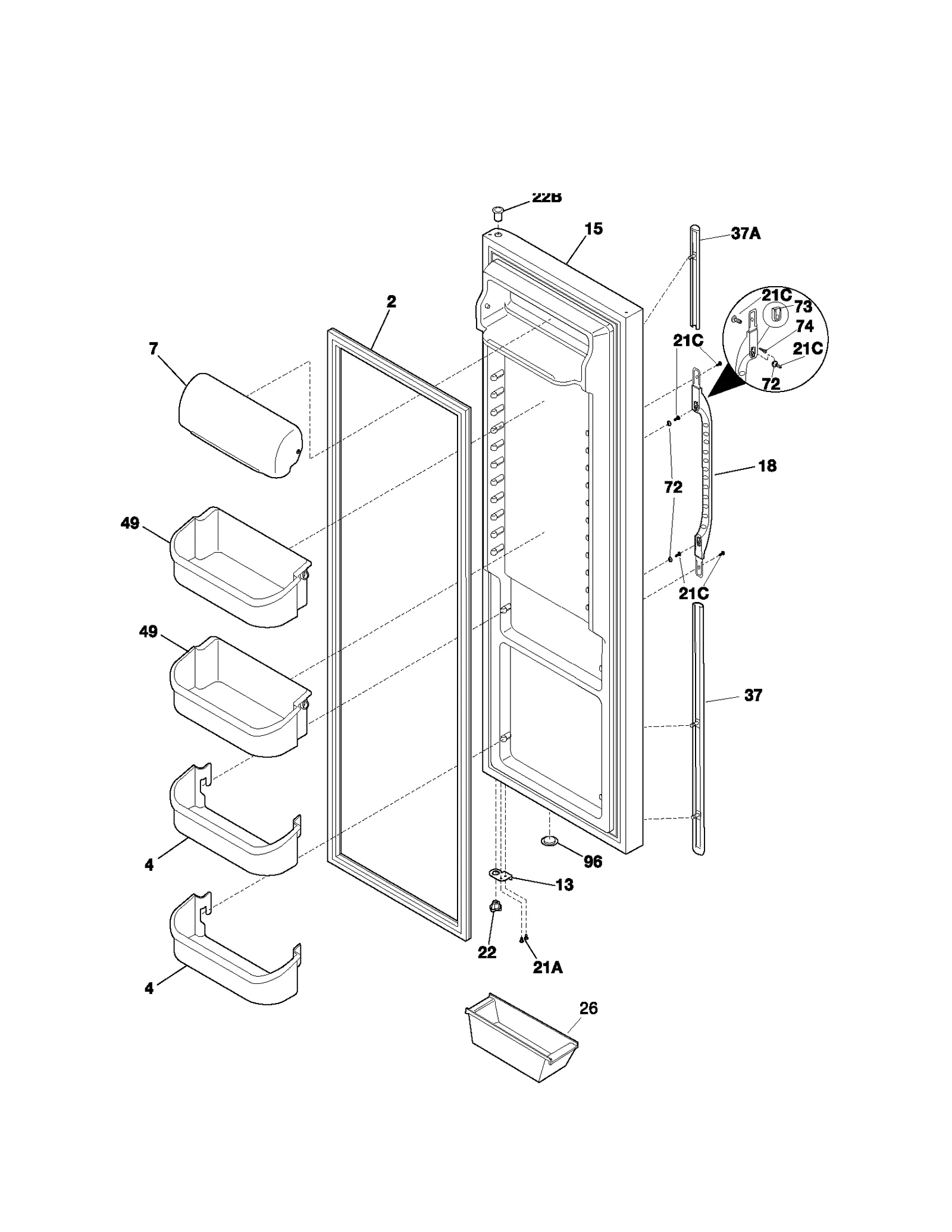

Diagram
REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241786013replaces 240390605 Refrigerator Gasket | $54.70 Parts Dr |
| 4 |  | Refrigerator Door Bin | $39.28 Part Advantage |
| 7 |  | Refrigerator Dairy Door | Discontinued |
| 13 |  | 5303918455replaces 240537105 Refrigerator Stop | $81.30 Part Advantage |
| 15 | | 240451997replaces 240451943 Refrigerator Complete Door | - |
| 18 | | Refrigerator Door Handle (Gray) | Discontinued |
| 21A |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 21C |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 22 |  | Refrigerator Door Closer Bearing | $10.24 Part Advantage |
| 22B |  | 240328403NLA Refrigerator Door Hinge Bushing | Discontinued |
| 26 |  | 3204522replaces 5303288969 Container-eg | $81.84 PartSelect |
| 37 | | 218779320NLA Refrigerator Door Handle Trim, Lower (Black) | Discontinued |
| 37A | | 218776501replaces 218776600 Tri Snap | - |
| 37A | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 49 |  | Frigidaire Refrigerator Door Bin | $55.85 Part Advantage |
| 72 |  | Refrigerator Dovetail | - |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| 96 | | Refrigerator Foam Plug | - |
| NI | – | 218490900 Refrigerator Cleaner | - |
