Model
Kenmore 253.52649301
Refrigerator (Kenmore 25352649301)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.52649301Refrigerator (Kenmore 25352649301)
10 diagrams311 parts
Parts Sections (10)

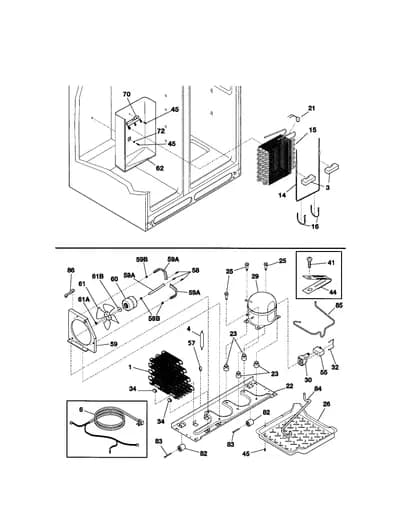

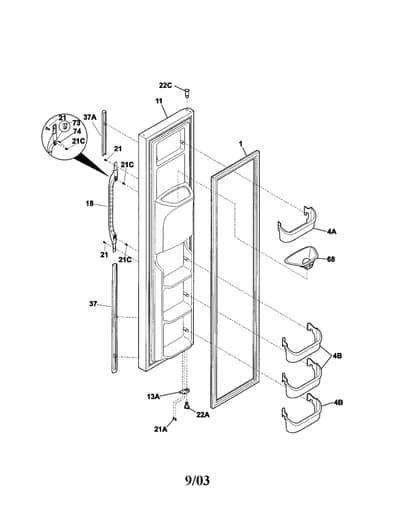

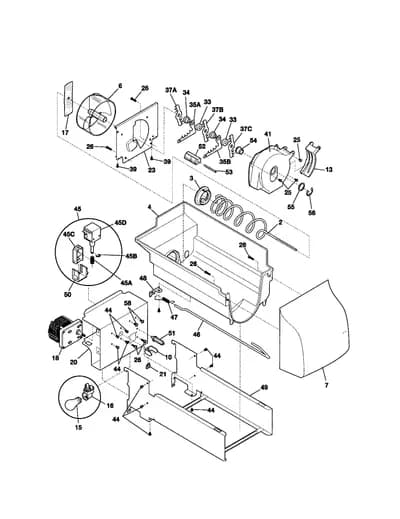

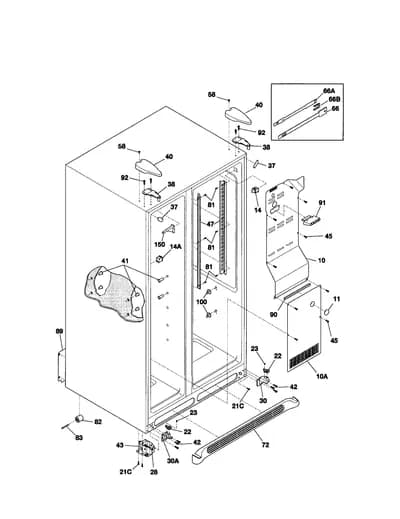

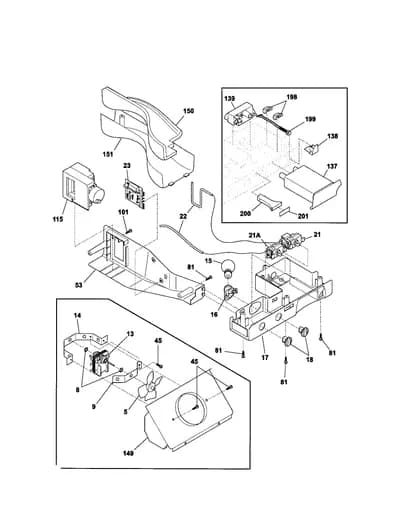

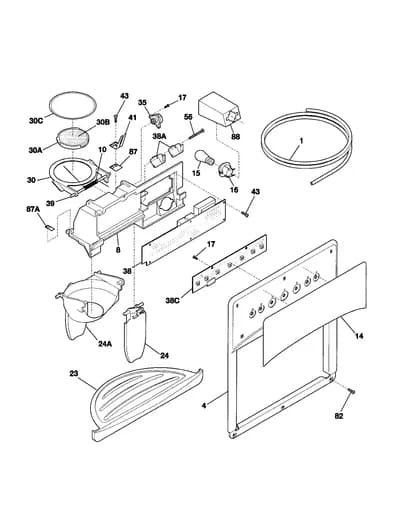

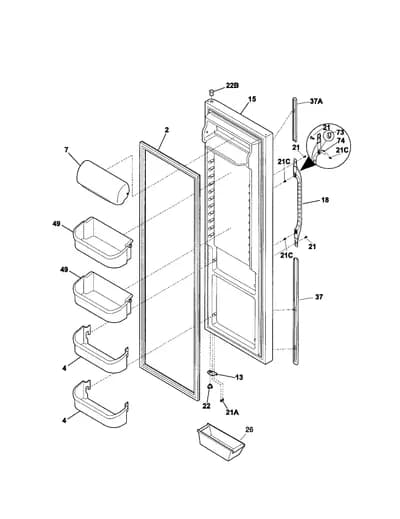

Diagram

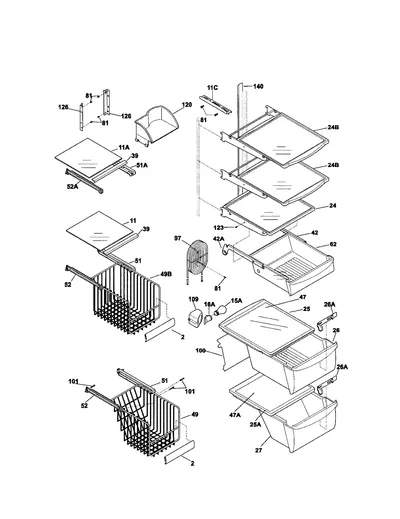

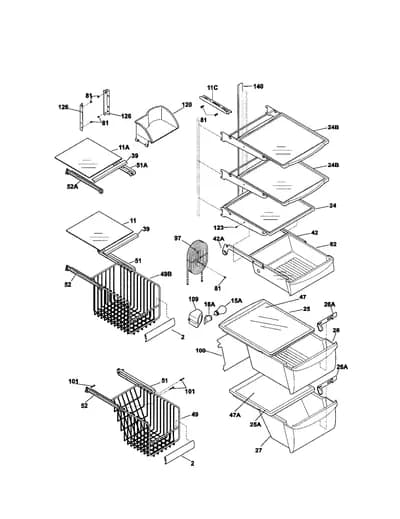

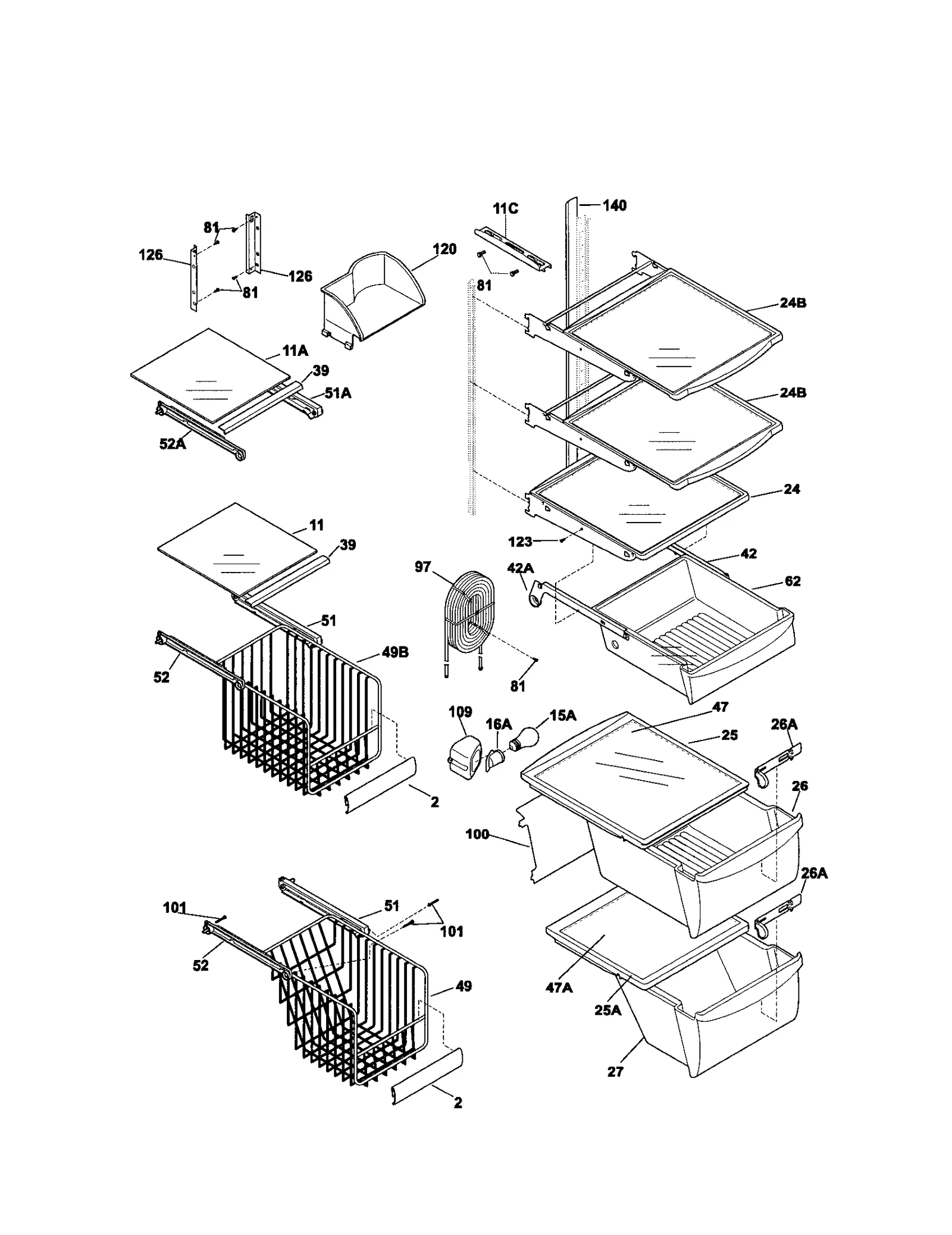

SHELVES
Parts in SHELVES
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 240434604NLA Refrigerator Trim | Discontinued |
| 11 |  | 240350605replaces 240443311 Refrigerator Glass Shelf | $80.82 PartSelect |
| 11A |  | 240350604replaces 240443312 Refrigerator Glass Shelf | $78.89 PartSelect |
| 11C |  | Refrigerator Freezer Pizza Shelf | $41.46 RepairClinic |
| 15A |  | 316538904replaces 240436702 Refrigerator Light Bulb | $9.61 Part Advantage |
| 16A |  | 218906802replaces 218906801 Refrigerator Light Socket | $10.24 Part Advantage |
| 16AA | – | 240323102 Refrigerator Electronic Harness | - |
| 24 |  | 240355203replaces 240355227 Refrigerator Spill-Safe Shelf | $258.00 RepairClinic |
| 24B | | 240350117NLA Refrigerator Spill-Safe Shelf | Discontinued |
| 25 |  | Frigidaire Refrigerator Crisper Drawer Cover Frame | $23.79 Part Advantage |
| 25A |  | 240350903replaces 240350902 Refrigerator Cover | $50.11 Part Advantage |
| 25B |  | Refrigerator Crisper Drawer Slide Clip | $25.41 Part Advantage |
| 26 |  | 240351061replaces 240351019 Refrigerator Upper Crisper Pan | $52.93 Part Advantage |
| 26A |  | Refrigerator Crisper Drawer Humidity Control | $44.97 Parts Dr |
| 26B |  | Refrigerator Crisper Drawer Slide Clip | $11.08 Part Advantage |
| 27 |  | 240351240replaces 240351217 Lower Crisper Pan | $104.24 Part Advantage |
| 39 |  | Refrigerator Freezer Shelf Trim | $26.24 Part Advantage |
| 42 |  | Frigidaire Refrigerator Deli Drawer Hanger, Right | $32.82 Part Advantage |
| 42A |  | Refrigerator Drawer Slide Rail | $39.15 Parts Dr |
| 42AA | | Refrigerator Deli Drawer Hanger | - |
| 42AB |  | Refrigerator Deli Drawer Slide Rail Spring | $41.11 RepairClinic |
| 47 |  | 240350649replaces 240350694 Refrigerator Crisper Drawer Cover Glass Insert | $58.46 Part Advantage |
| 47A |  | Refrigerator Crisper Drawer Cover Insert | $74.22 Parts Dr |
| 49 |  | Refrigerator Freezer Basket, Lower | $156.26 PartSelect |
| 49B | | 240530504NLA Refrigerator Freezer Basket | Discontinued |
| 51 |  | Refrigerator Freezer Basket Support Rail | $41.01 Parts Dr |
| 51A |  | Refrigerator Freezer Basket Hanger, Right | $53.95 ApplianceParts Pro |
| 52 |  | Refrigerator Freezer Basket Support Rail | $42.27 Parts Dr |
| 52A |  | Refrigerator Freezer Basket Hanger, Left | $40.48 Parts Dr |
| 62 |  | 240342830replaces 240342815 Refrigerator Meat Pan | $54.44 Parts Dr |
| 81 |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 97 |  | 240545302replaces 240545303 Refrigerator Water Reservoir | $165.84 Parts Dr |
| 100 |  | 240326304replaces 240326302 Refrigerator Water Cover | - |
| 101 |  | 218493101replaces 218493100 Refrigerator Basket Hanger Screw | $7.77 Part Advantage |
| 109 | | Refrigerator Crisper Lamp Socket Base | - |
| 120 |  | 240342901replaces 240342902 Ice Shelf | - |
| 123 |  | 215005101replaces 215005100 Refrigerator Screw Roller | $9.25 Parts Dr |
| 126 |  | 241674401replaces 218867405 Refrigerator Channel | $34.95 ApplianceParts Pro |
| 126A |  | 241674402replaces 218867406 Refrigerator Channel | - |
| 140 |  | Refrigerator Water Tube Cover | - |
