Model
Kenmore 253.53713300
Refrigerator (Kenmore 25353713300)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
253.53713300Refrigerator (Kenmore 25353713300)
9 diagrams310 parts
Parts Sections (9)
Diagram

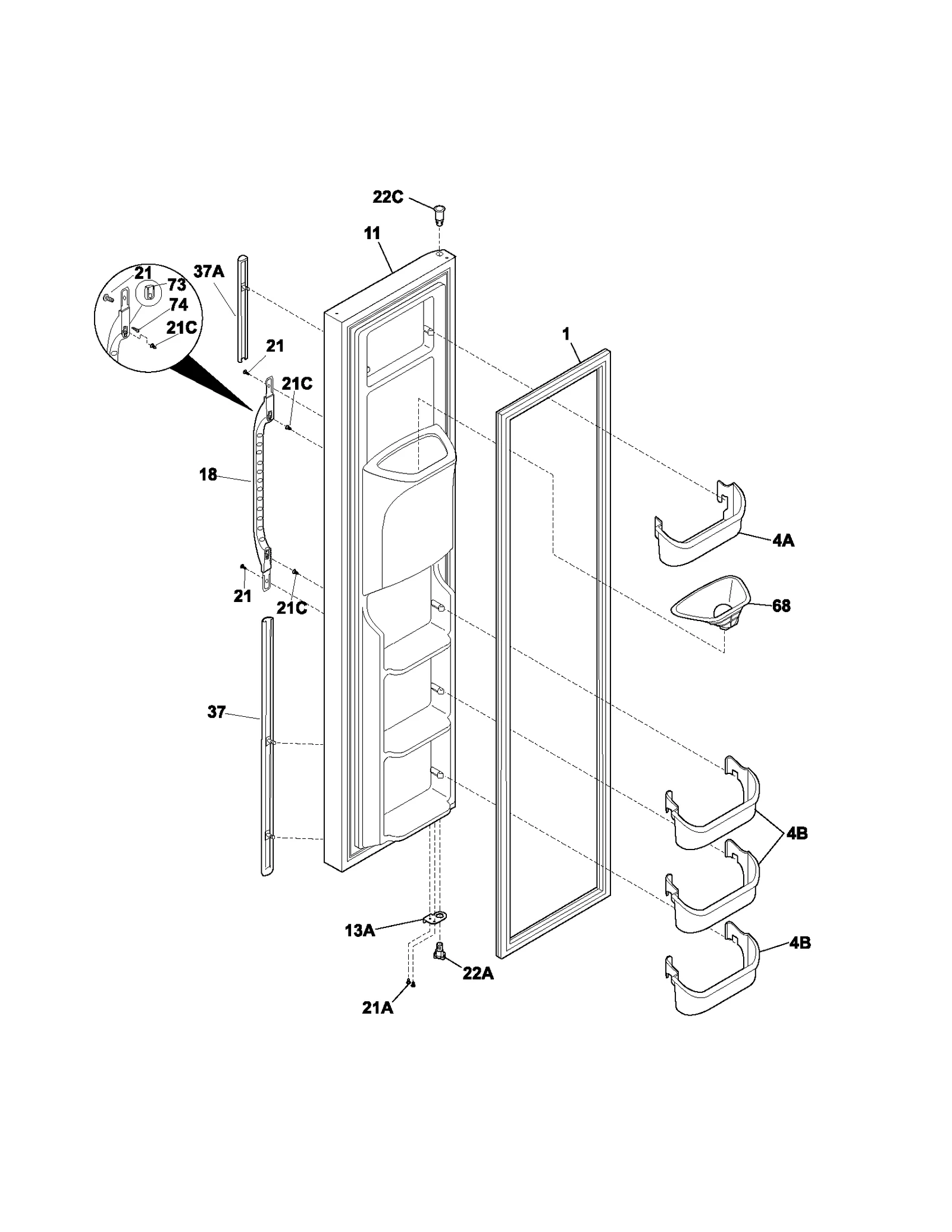

FREEZER DOOR
Parts in FREEZER DOOR
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 241786014replaces 240390606 Refrigerator Gasket | $51.87 Part Advantage |
| 4A |  | Refrigerator Freezer Door Bin | $37.03 Part Advantage |
| 4B |  | Frigidaire Refrigerator Freezer Door Bin, Lower | $27.86 Parts Dr |
| 11 | – | 240554222 Stainless Steel Freezer Door | - |
| 13A |  | 5303918455replaces 240537106 Refrigerator Stop | $81.30 Part Advantage |
| 18 |  | Refrigerator Door Handle (Gray) | Discontinued |
| 21 |  | 218781101replaces 218781100 Screw/quadre | $9.03 Part Advantage |
| 21A |  | 5304455650replaces 5308016566 Refrigerator Evaporator Fan Mounting Bracket Screw | $10.31 Parts Dr |
| 21C | | 240521302NLA Refrigerator Freezer Door Handle Screw | Discontinued |
| 22A |  | 242000501replaces 240561602 Hinge Bearing | $5.39 ApplianceParts Pro |
| 22C |  | Refrigerator Door Hinge Bearing (Black) | $13.22 Part Advantage |
| 37 | | 218779320NLA Refrigerator Door Handle Trim, Lower (Black) | Discontinued |
| 37A | | 218776501replaces 218776600 Tri Snap | - |
| 37A | | 218779309NLA Refrigerator Hand Trim | Discontinued |
| 68 | | 240467701NLA Refrigerator Ice Chute | Discontinued |
| 73 |  | Kelvinator Freezer Door Handle Mounting Block | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 Upright Freezer Door Handle Screw | $4.09 Part Advantage |
| NI | – | 218490900 Refrigerator Cleaner | - |
| NI | | 240411501NLA Refrigerator Ice and Water Dispenser Cover Clip | Discontinued |
| NI |  | 240545201replaces 240545101 Refrigerator Connector | $42.65 Part Advantage |
| NI | | Refrigerator Freezer Door Wire Harness | $44.36 ApplianceParts Pro |
| NI |  | Refrigerator Dispenser Heater | $315.20 Parts Dr |
